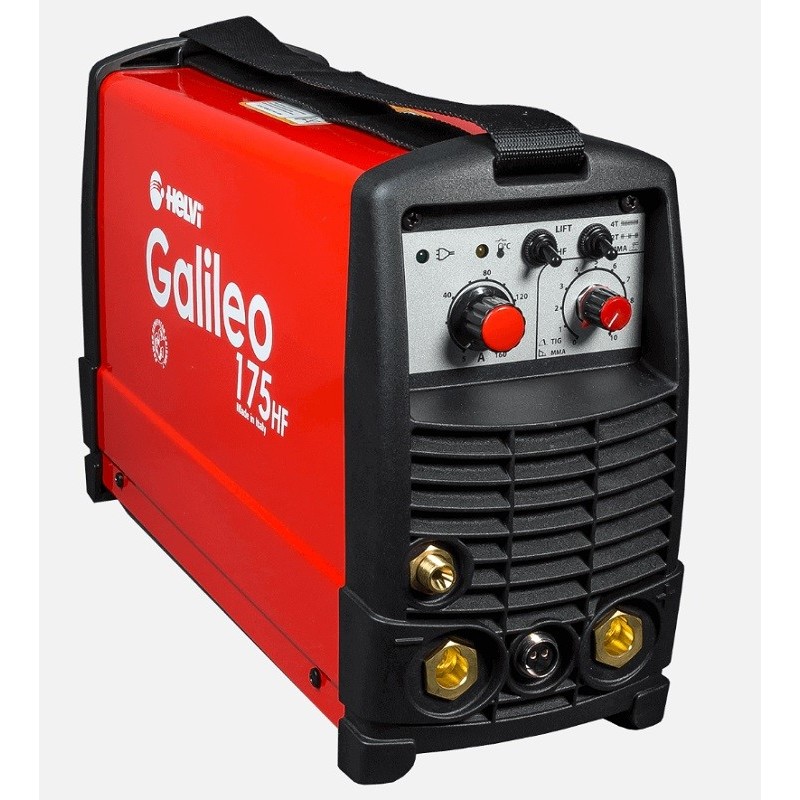

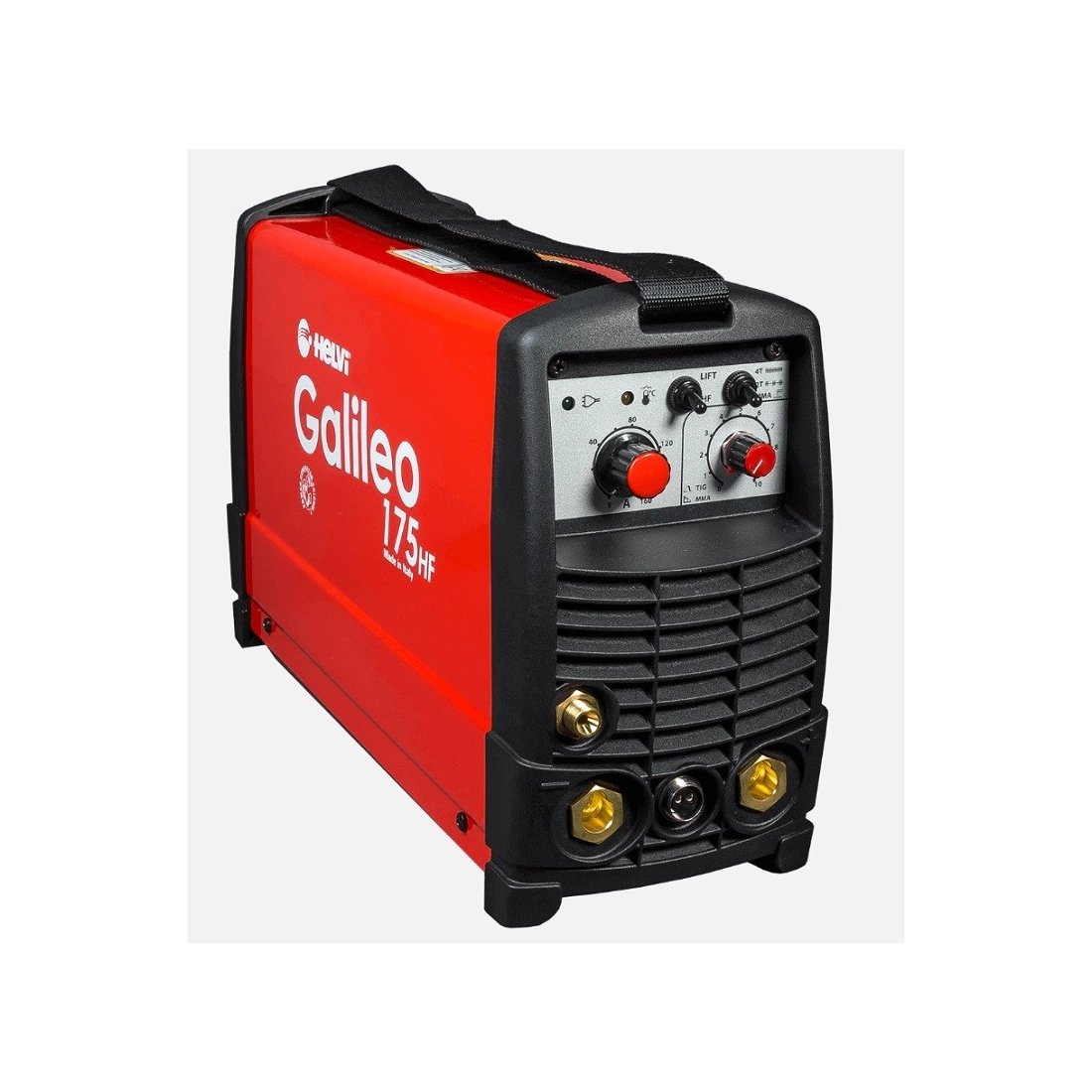

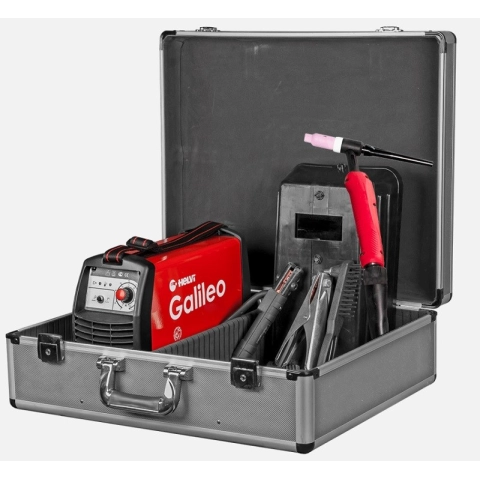

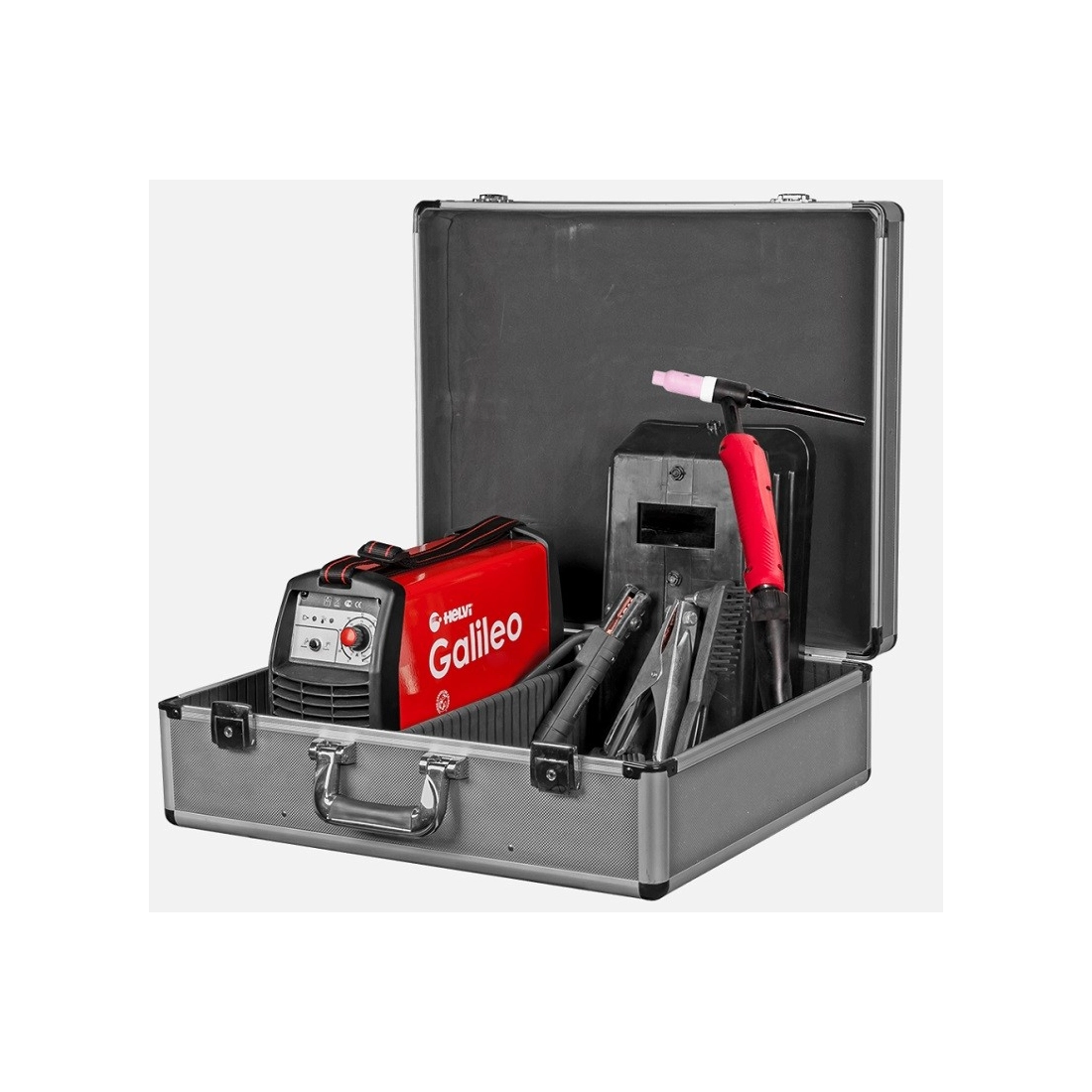

HELVI GALILEO 175 HF MMA TIG Welding Inverter + Kit Carry Case
99805981
OUT OF PRODUCTION
Phase type: Single-phase
Frequency: 50/60 Hz
Voltage: 230 V
Power: 3300 W @ 60%
Welding Type: MMA/TIG
No-load voltage: 60 V
Current regulation: 5 - 160 A
Maximum current: 160 A
Amp. 60974-1: 25% 160 A - 60% 100 A
Electrode diameter: 1.6 - 4 mm
Electrode type: 6013 - 7018
Insulation: H
Degree of protection: IP22S
Length: 400 mm
Width: 140 mm
Height: 245 mm
Weight: 8.81 Kg
Dimens. in alum. carry case: 565x500x200 mm
Weight in alum. carry case: 17.1 Kg
99805981
Data sheet
- Phase
- Single phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230
- Cooling
- Air
- Protection degree
- IP22S
- Motor insulation class
- H
- No-load voltage (V)
- 60
- Regulation current (A)
- 5 - 160
- Welding current (A)
- 140
- Amp. 60974-1 (40°)
- 120 A @ 60% - 160 A @ 35%
- Diameter electrodes (mm)
- 1.6 - 4
- Maximum diameter electrodes (mm)
- 4
- Type of welding current
- DC
- Type of welding
- MMA / MIG
- Current max (A)
- 160
- Power consumption (W)
- 4000
- Length (mm)
- 400
- Width (mm)
- 140
- Height (mm)
- 245
- Voltage regulator
- Inverter
- Weight (Kg)
- 17.1
Specific References
Inverter power sources designed to meet the needs of the most demanding users.
Easy-to-use both in STICK welding and TIG welding with HF start.
In STICK welding Hot Start and Arc Force are adjustable. Is equipped with an user friendly front panel where you can select 2T/4T, Tig slope down, MMA arc force.
Not binding images and technical data.
