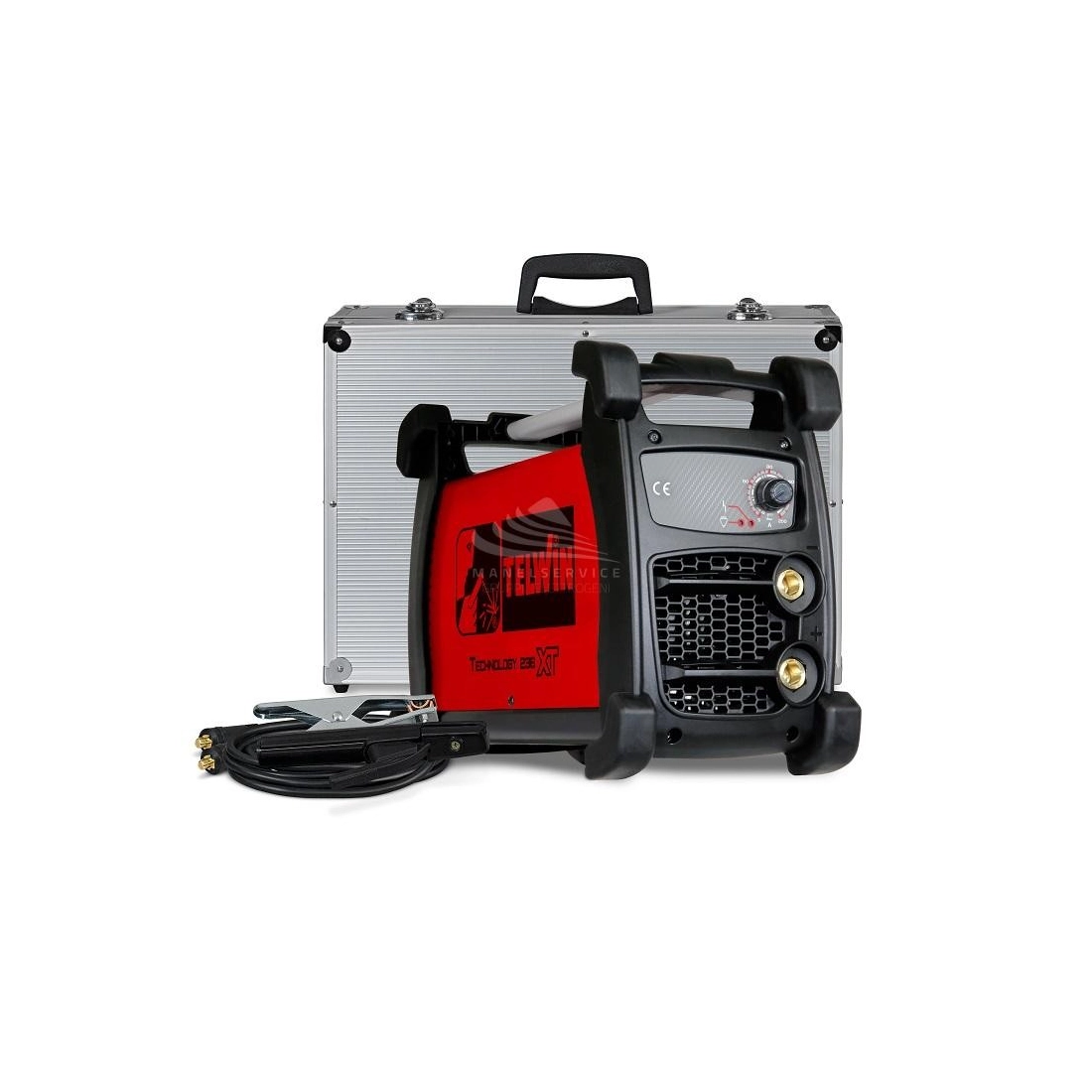

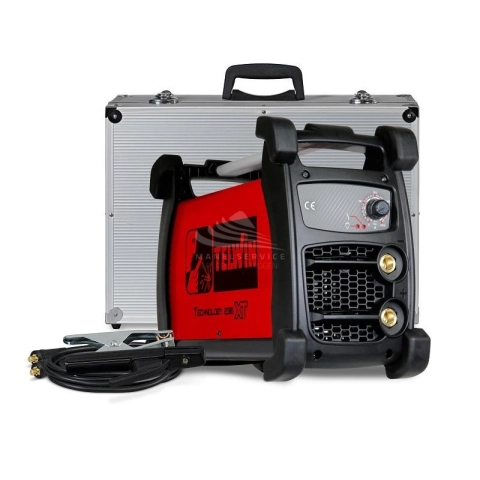

TELWIN TECHNOLOGY 236HD 230V ACX ALUMINIUM CARRY CASE

Name: TELWIN TECHNOLOGY 236HD 230V ACX ALUMINIUM CARRY CASE
Brand: TELWIN
SKU: 816251
Price: 451.4 EUR
Availability: InStock

Reference 816251

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding current: DC
Type of welding: MMA / TIG
No-load voltage: 81 V
Regulation current: 5 - 200 A
Current max: 200 A
Diameter electrodes: 1.6 - 4 mm
Length: 465 mm
Width: 185 mm
Height: 355 mm
Weight: 9.8 Kg

List price

846.68 € tax incl.

694.00 € tax excl.

Discounted Price

451.40 € tax incl.

370.00 € tax excl.

Shipping from 18.30 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 816251

Data sheet

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Efficiency (%): 89
Protection degree: IP23
Maximum permissible current (A): 38
No-load voltage (V): 60
Regulation current (A): 5 - 200
Diameter electrodes (mm): 1.6 - 4
Type of welding current: DC
Type of welding: MMA / MIG
Current max (A)
Length (mm): 500
Width (mm): 220
Height (mm)
Voltage regulator: Inverter
Weight (Kg): 10.55

Specific References

EAN13: 8004897165783

Condition New

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Regulation of arc force and hot start according to the type of electrode in use
- Anti-stick device
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and aluminium carry case.

Not binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
