Contacts: +39 011 25 35 33 - info@manelservice.com

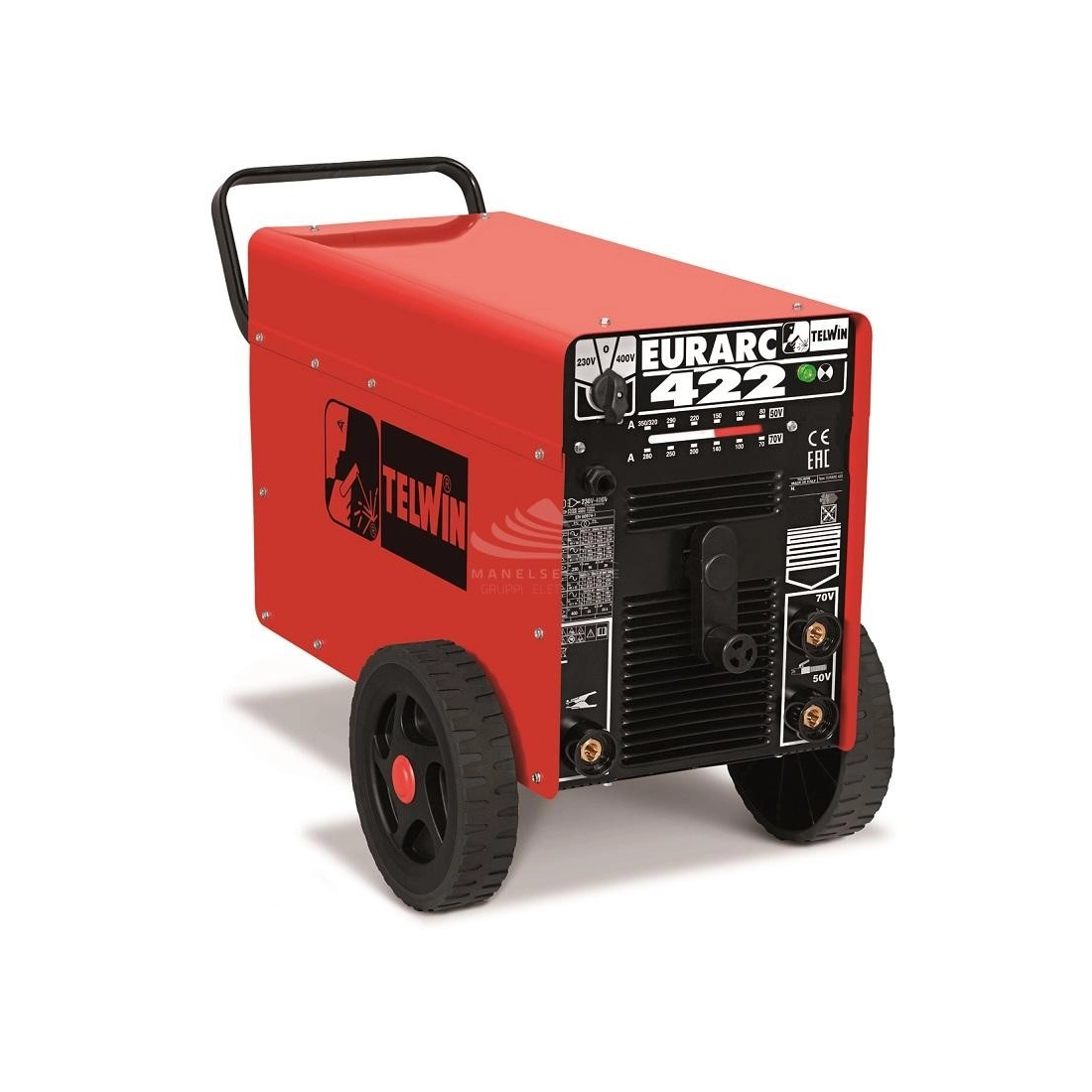

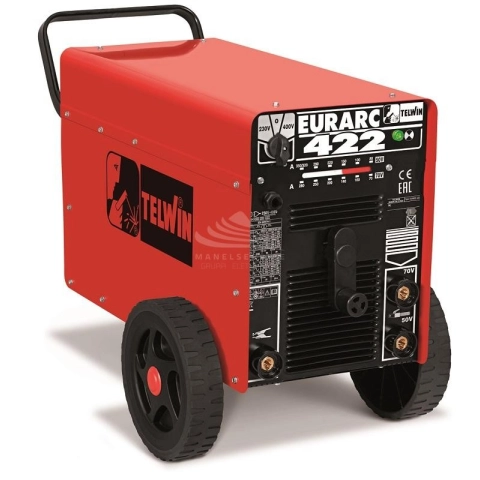

TELWIN EURARC 422 230V/400V
817017
OUT OF PRODUCTION
Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding current: AC
Type of welding: MMA
No-load voltage: 52 - 73 V
Regulation current: 70 - 350 A
Current max: 215 A
Diameter electrodes: 2 - 6 mm
Length: 830 mm
Width: 455 mm
Height: 580 mm
Weight: 61 Kg
817017
Data sheet
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Protection degree
- IP22
- No-load voltage (V)
- 52 - 73
- Regulation current (A)
- 70 - 350
- Diameter electrodes (mm)
- 2 - 6
- Type of welding current
- AC
- Type of welding
- MMA
- Current max (A)
- 215
- Length (mm)
- 830
- Width (mm)
- 455
- Height (mm)
- 580
- Weight (Kg)
- 61
Specific References
- EAN13
- 8004897847894
New
MMA stick electrode welding machine in alternating current (AC). Stepless regulation of welding current.
With thermostatic protection.
The model has double secondary voltage for use also with basic and rutile electrodes.
Not binding images and technical data.
4 other products in the same category:
Discounted price
tax incl.
tax incl.
635.62 €
521.00 € tax excl.
521.00 € tax excl.
OUT OF PRODUCTION
Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding current: AC
Type of welding: MMA
No-load voltage: 52 - 73 V
Regulation current: 70 - 350 A
Current max: 215 A
Diameter electrodes: 2 - 6 mm
Length: 830 mm
Width: 455 mm
Height: 580 mm
Weight: 61 Kg
