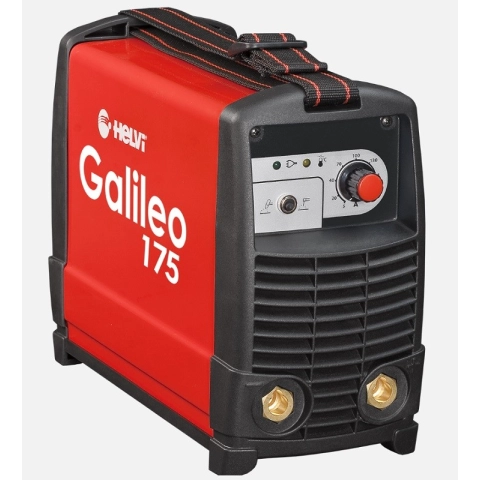

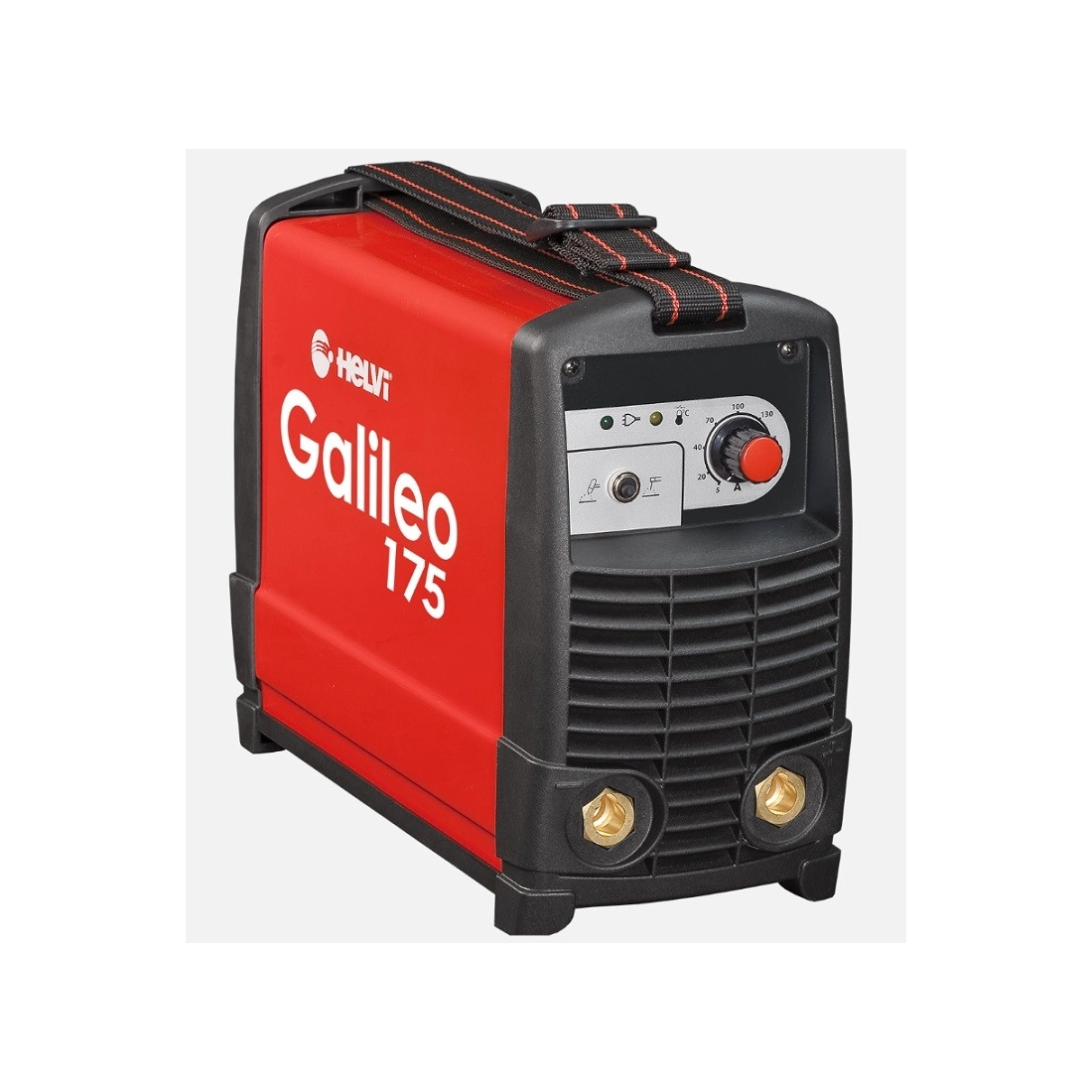

HELVI GALILEO 175 MMA TIG Welding Inverter

OUT OF PRODUCTION

Phase type: Single-phase
Frequency: 50/60 Hz
Voltage: 230 V
Power: 3300 W @ 60%
Welding Type: MMA
No-load voltage: 60 V
Current regulation: 5 - 160 A
Maximum current: 160 A
Amp. 60974-1: 35% 160 A - 60% 120 A
Electrode diameter: 1.6 - 4 mm
Electrode type: 6013 - 7018
Insulation: H
Degree of protection: IP22S
Length: 335 mm
Width: 140 mm
Height: 245 mm
Weight: 6.1 Kg

Payment methods:

Product: HELVI GALILEO 175 MMA TIG Welding Inverter

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: HELVI GALILEO 175 MMA TIG Welding Inverter

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: HELVI GALILEO 175 MMA TIG Welding Inverter

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 99805892

Data sheet

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Cooling: Air
Protection degree: IP22S
Motor insulation class: H
No-load voltage (V): 60
Regulation current (A): 5 - 160
Welding current (A): 140
Amp. 60974-1 (40°): 120 A @ 60% - 160 A @ 35%
Diameter electrodes (mm): 1.6 - 4
Maximum diameter electrodes (mm): 4
Type of welding current: DC
Type of welding: MMA / MIG
Current max (A): 150
Power consumption (W): 1500
Length (mm): 337
Width (mm): 140
Height (mm): 245
Voltage regulator: Inverter
Weight (Kg): 6.2

Specific References

Condition New

Easy-to-use welding inverters: optimum welding performance with all types of commercial electrodes (rutile, basic, stainless steel).
They fit overvoltage, over temperature and anti-sticking control.
They are equipped with STICK/TIG (lift arc) selector.
They can be connected to power sources (10 kVA approx. required) and long connection lines.
They are ideal for maintenance jobs and workshops applications.

Not binding images and technical data.

Download

Technical Data GALILEO 175

Download (1.39MB)

Manual GALILEO 175

Download (1.75MB)
