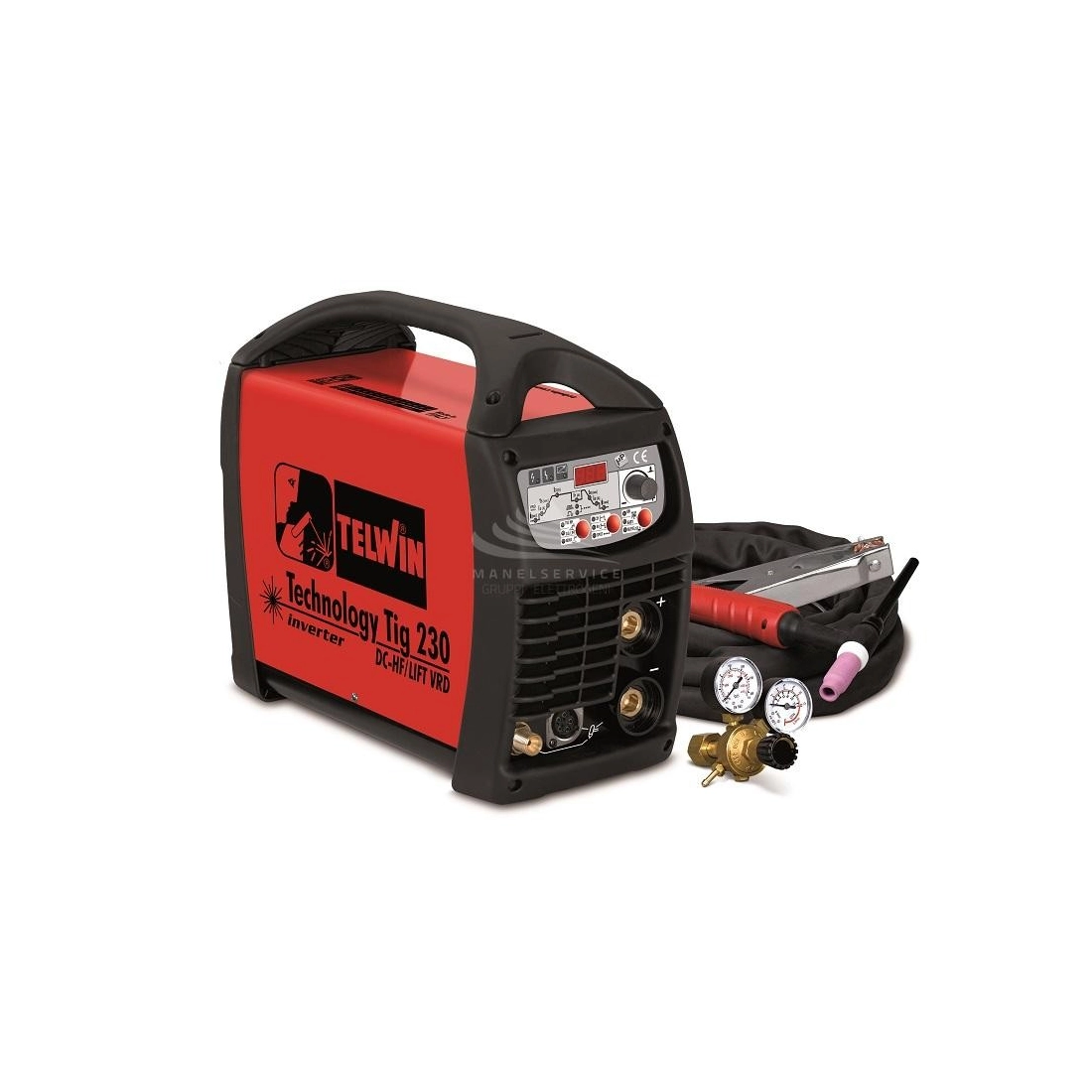

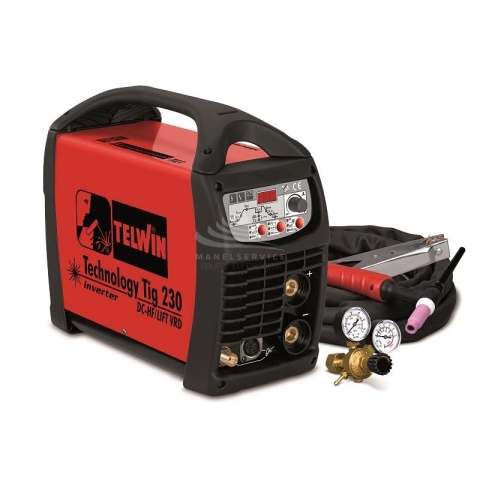

TELWIN TECHNOLOGY TIG 230 DC-HF/LIFT VRD 230V

852055
      TELWIN TECHNOLOGY TIG 230 DC-HF/LIFT VRD 230V
      TELWIN TECHNOLOGY TIG 230 DC-HF/LIFT VRD 230V

      DISCONTINUED PRODUCT

      Phase: Single phase
      Frequency: 50/60 Hz
      Voltage: 230 V
      Type of welding: TIG/MMA
      No-load voltage: 95 V
      Regulation current: 10 - 220 A
      Current max: 220 A
      Diameter electrodes: 1.6 - 4 mm
      Length: 430 mm
      Width: 176 mm
      Height: 340 mm
      Weight: 14.75 Kg

      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TELWIN
      852055

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230
      Efficiency (%)
      86
      Protection degree
      IP23
      No-load voltage (V)
      95
      Regulation current (A)
      10 - 220
      Diameter electrodes (mm)
      1.6 - 4
      Type of welding
      MMA / MIG
      Current max (A)
      220
      Length (mm)
      430
      Width (mm)
      176
      Height (mm)
      340
      Voltage regulator
      Inverter
      Weight (Kg)
      14.75

      Specific References

      EAN13
      8004897965888

      Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current (DC).
      Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
      Features:
      - pulse and EASY pulse operation
      - TIG regulations: "bi-level", start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency
      - THINSPOT function for quick and precise tack welding
      - MMA regulations: arc force and hot start
      - anti-stick device
      - VRD device
      - remote control connector
      - thermostatic, overvoltage, undervoltage, overcurrent protections.
      Complete with TIG welding accessories.

      Not binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
