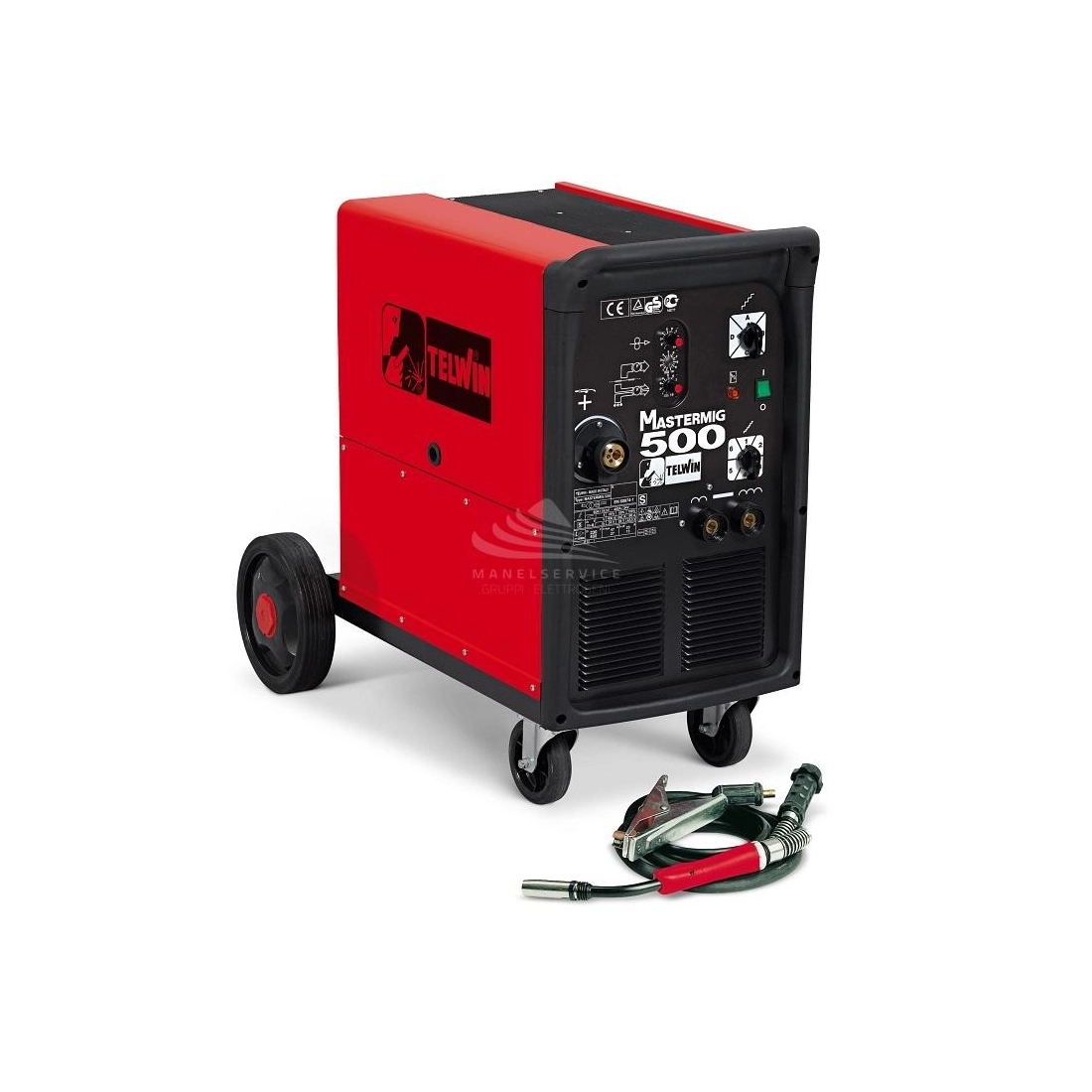

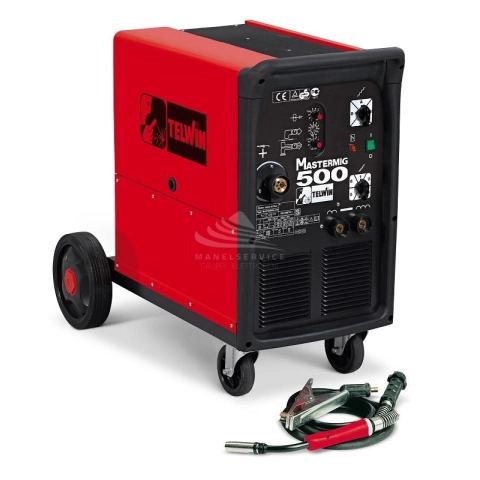

TELWIN MASTERMIG 500 230-400V

Reference 827007

DISCONTINUED PRODUCT

Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding: MIG-MAG/FLUX/BRAZING
No-load voltage: 55 V
Regulation current: 50 - 500 A
Current max: 500 A
Steel welding wire diameter: 0.6 - 2 mm
Inox welding wire diameter: 0.8 - 2 mm
Aluminium welding wire diameter: 0.8 - 1.2 mm
Flux cored welding wire diameter: 1 - 2 mm
Brazing wire diameter: 0.8 - 1.2 mm
Length: 945 mm
Width: 565 mm
Height: 830 mm
Weight: 120 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 827007

Data sheet

Phase: Single phase / Three phase
Frequency (Hz): 50 / 60
Voltage (V): 230 / 400
Protection degree: IP22
No-load voltage (V): 55
Adjustment positions: 24
Regulation current (A): 50 - 500
Ø steel welding wire (mm): 0.6 - 2
Ø inox welding wire (mm): 0.8 - 2
Ø aluminium welding wire (mm): 0.8 - 1.2
Ø flux cored welding wire (mm): 1 - 2
Ø brazing wire (mm): 0.8 - 1.2
Type of welding: MIG-MAG
MIG-MAG welding: MIG-MAG/FLUX/BRAZING
Current max (A): 500
Length (mm): 945
Width (mm): 565
Height (mm): 830
Weight (Kg): 120

Specific References

EAN13: 8004897790176

MIG-MAG/FLUX/BRAZING welding machine with removable wire feeder, fit for use in the industrial field.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Features:
- Very strong
- Numerous steps for regulation of arc voltage
- Regulation of spot welding time
- Two positions for reactance
- Thermostatic protection
Thanks to the extensions (optional) it is possible to increase the working range between wire feeder and power source up to 10 meters.
Complete with MIG-MAG welding accessories.

Not binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
