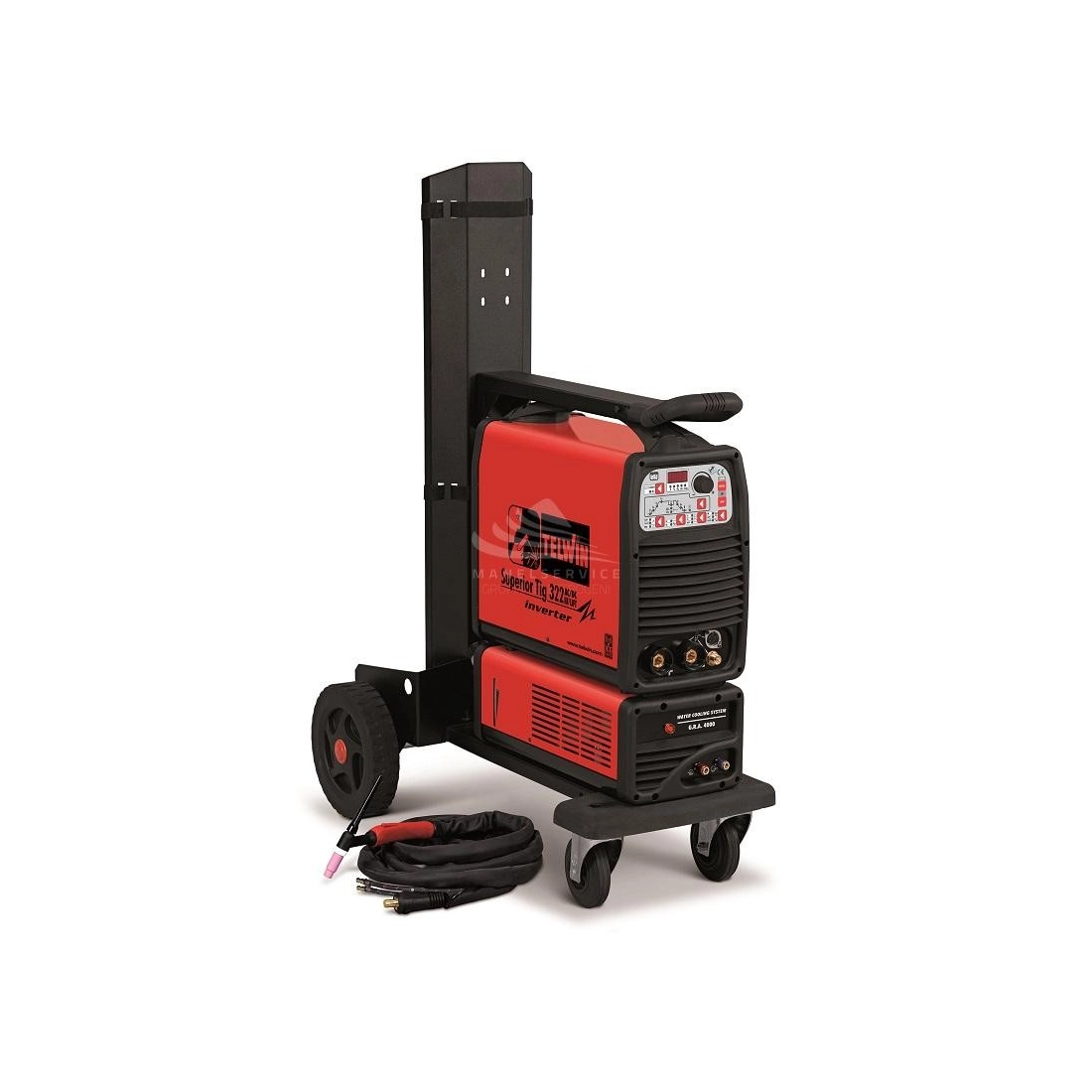

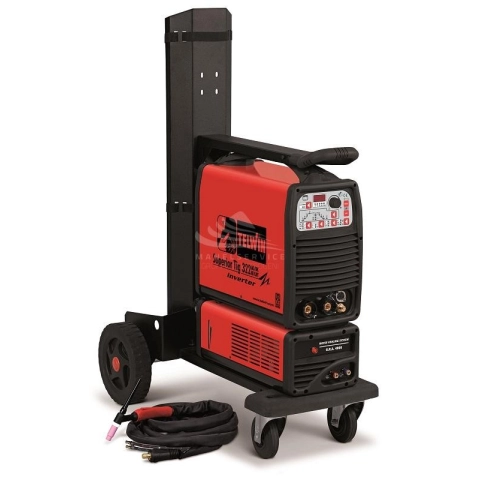

TELWIN SUPERIOR TIG 322 AC/DC-HF/LIFT 400V AQUA

Reference 816131

DISCONTINUED PRODUCT

Phase: Three phase
Frequency: 50/60 Hz
Voltage: 400 V
Type of welding: TIG/MMA
No-load voltage: 64 V
Regulation current: 5 - 270 A
Current max: 270 A
Diameter electrodes: 1.6 - 5 mm
Length: 935 mm
Width: 500 mm
Height: 1195 mm
Weight: 68 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 816131

Data sheet

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 400
Efficiency (%): 85
Protection degree: IP23
No-load voltage (V): 64
Regulation current (A): 5 - 270
Diameter electrodes (mm): 1.6 - 5
Type of welding: MMA / MIG
Current max (A): 270
Length (mm): 935
Width (mm): 500
Height (mm): 1195
Voltage regulator: Inverter
Weight (Kg): 68

Specific References

EAN13: 8004897997698

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct and alternating current (AC/DC).
Use with a wide range of materials such assteel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Features:
- pulse and EASY pulse operation
- 9 customized welding programmes
- TIG regulations:bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC/AC, square wave frequency
- MMA regulations: arc force and hot start according to the type of electrode in use
- anti-stick device
- remote control and G.R.A. water cooling connector
- storage on on-board E2PROM of the last 10 alarms
- thermostatic, overvoltage, undervoltage, inside dirtiness, overcurrent, phase failure, water cooling unit protections.
Complete with TIG welding accessories, trolley and G.R.A. water cooling unit.

Not binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
