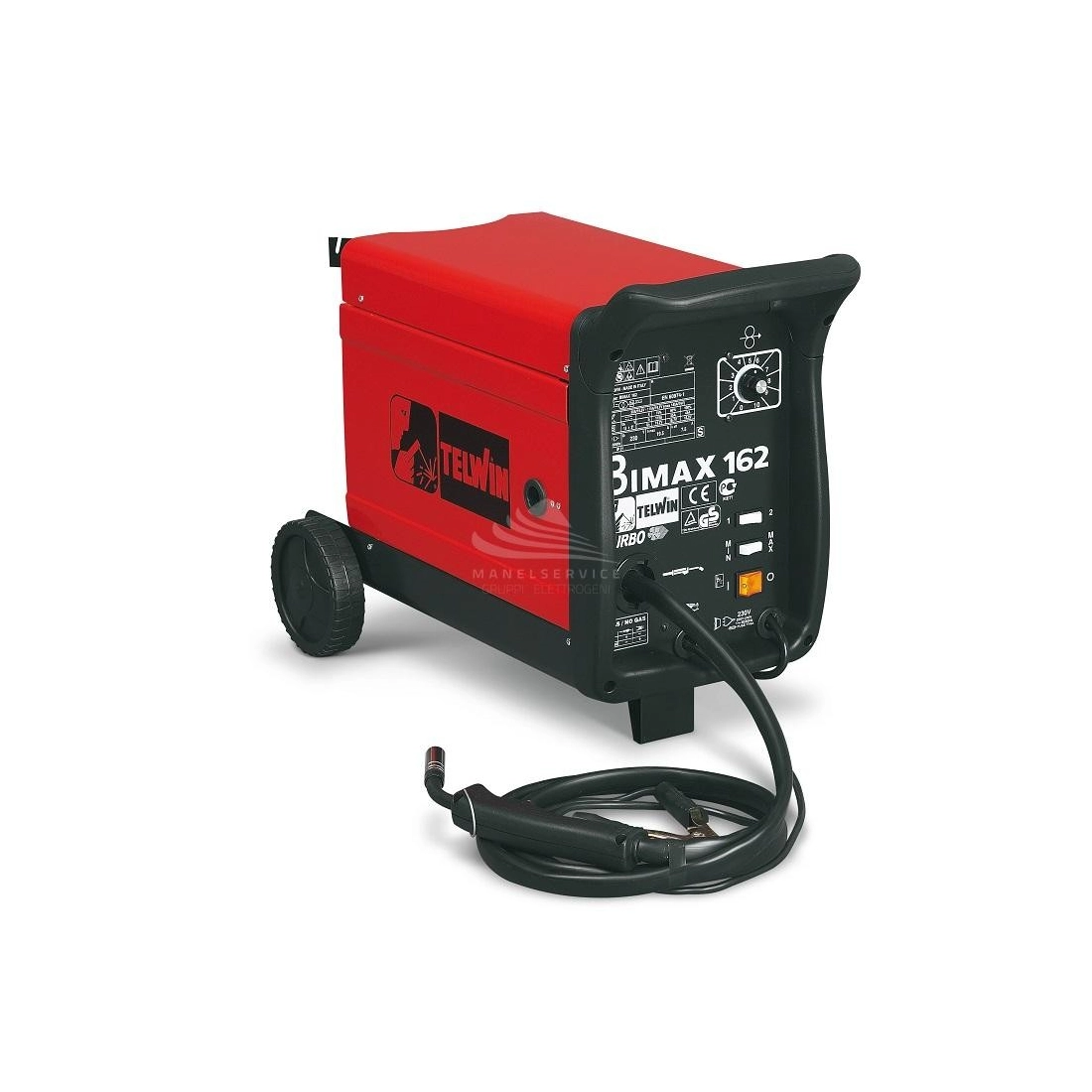

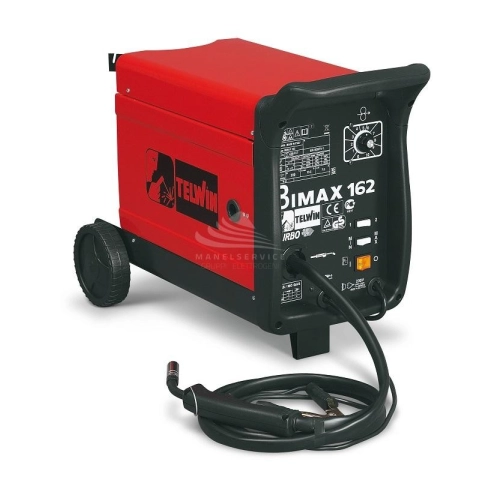

TELWIN BIMAX 162 TURBO 230V
      TELWIN BIMAX 162 TURBO 230V

      TELWIN BIMAX 162 TURBO 230V

      821012

      DISCONTINUED PRODUCT

      Phase: Single phase
      Frequency: 50/60 Hz
      Voltage: 230 V
      Type of welding: MIG-MAG/FLUX
      No-load voltage: 31 V
      Regulation current: 30 - 145 A
      Current max: 115 A
      Steel welding wire diameter: 0.6 - 0.8 mm
      Inox welding wire diameter: 0.8 mm
      Aluminium welding wire diameter: 0.8 - 1 mm
      Flux cored welding wire diameter: 0.8 - 1.2 mm
      Length: 640 mm
      Width: 350 mm
      Height: 470 mm
      Weight: 25 Kg

      Custom Quote
      Product: TELWIN BIMAX 162 TURBO 230V

      PERSONAL DATA


      Ask a question
      Product: TELWIN BIMAX 162 TURBO 230V
      Offer on letterhead
      Product: TELWIN BIMAX 162 TURBO 230V
      TELWIN
      821012

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230
      Protection degree
      IP21
      No-load voltage (V)
      31
      Adjustment positions
      4
      Regulation current (A)
      30 - 145
      Ø steel welding wire (mm)
      0.6 - 0.8
      Ø inox welding wire (mm)
      0.8
      Ø aluminium welding wire (mm)
      0.8 - 1
      Ø flux cored welding wire (mm)
      0.8 - 1.2
      Type of welding
      MIG-MAG
      MIG-MAG welding
      MIG-MAG/FLUX
      Current max (A)
      115
      Length (mm)
      640
      Width (mm)
      350
      Height (mm)
      470
      Weight (Kg)
      25

      Specific References

      EAN13
      8004897598352

      FLUX (no gas) and MIG-MAG (gas) welding machine. With thermostatic protection.
      Complete with FLUX welding accessories.
      On request it is available the kit for welding with gas different types of materials such as steel, stainless steel and aluminium.


      Not binding images and technical data.
