TELWIN ELECTROMIG 450 SYNERGIC 230V/400V AQUA

Reference 816191

DISCONTINUED PRODUCT

Phase Type: Single Phase / Three Phase
Mains Voltage: 230 / 400 V
Power Factor (cosϕ): 0.9
Frequency: 50 / 60 Hz
Current Range: 20 - 320 / 20 - 400 A
Max DC Current(EN 60974-1): 320 @ 25% / 400 @ 30% A
DC Current: 200 / 270 A
Max open-circuit voltage: 106 / 73 V
Max absorbed current: 33 / 25 A
Absorbed current at 60% - MAX: 17 / 15 A
Steel welding wire diameter: 0.6 - 2 mm
DC electrode diameter: 1.6 - 8 mm
INOX welding wire diameter: 0.8 - 2 mm
Aluminum welding wire diameter: 0.8 - 1.6 mm
Flux-cored welding wire diameter 1 - 2 mm
Basing wire diameter: 0.8 - 1.2 mm
Degree of protection: IP23
Power consumption at 60%: 6.4 / 9.4 kW
Max power consumption: 12.6 / 16.5 kW
Efficiency: 89 %
Width: 1030 mm
Depth: 510 mm
Height: 1450 mm
Weight: 85 kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 816191

Data sheet

Phase: Single phase / Three phase
Frequency (Hz): 50 / 60
Voltage (V): 230 / 400
Efficiency (%): 89
Protection degree: IP23
No-load voltage (V): 106 / 73
Regulation current (A): 20 - 320 / 20 - 400
Diameter electrodes (mm): 1.6 - 8
Ø steel welding wire (mm): 0.6 - 2
Ø inox welding wire (mm): 0.8 - 2
Ø aluminium welding wire (mm): 0.8 - 1.6
Ø flux cored welding wire (mm): 1 - 1.2
Ø brazing wire (mm): 0.8 - 1.2
Type of welding: Multiprocess
MIG-MAG welding: MIG-MAG/FLUX/BRAZING
Current max (A): 320 / 400
Length (mm): 1030
Width (mm): 510
Height (mm): 1450
Voltage regulator: Inverter
Weight (Kg): 85

Specific References

EAN13: 800489799464

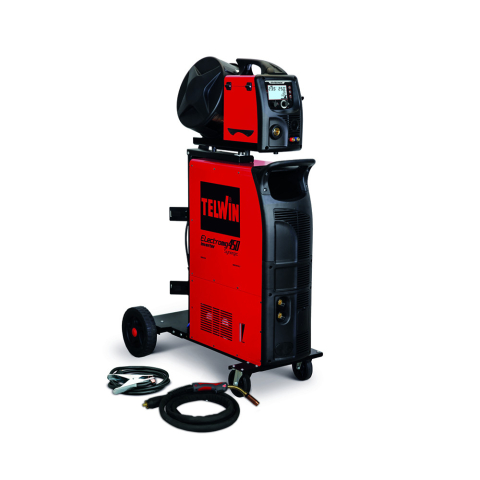

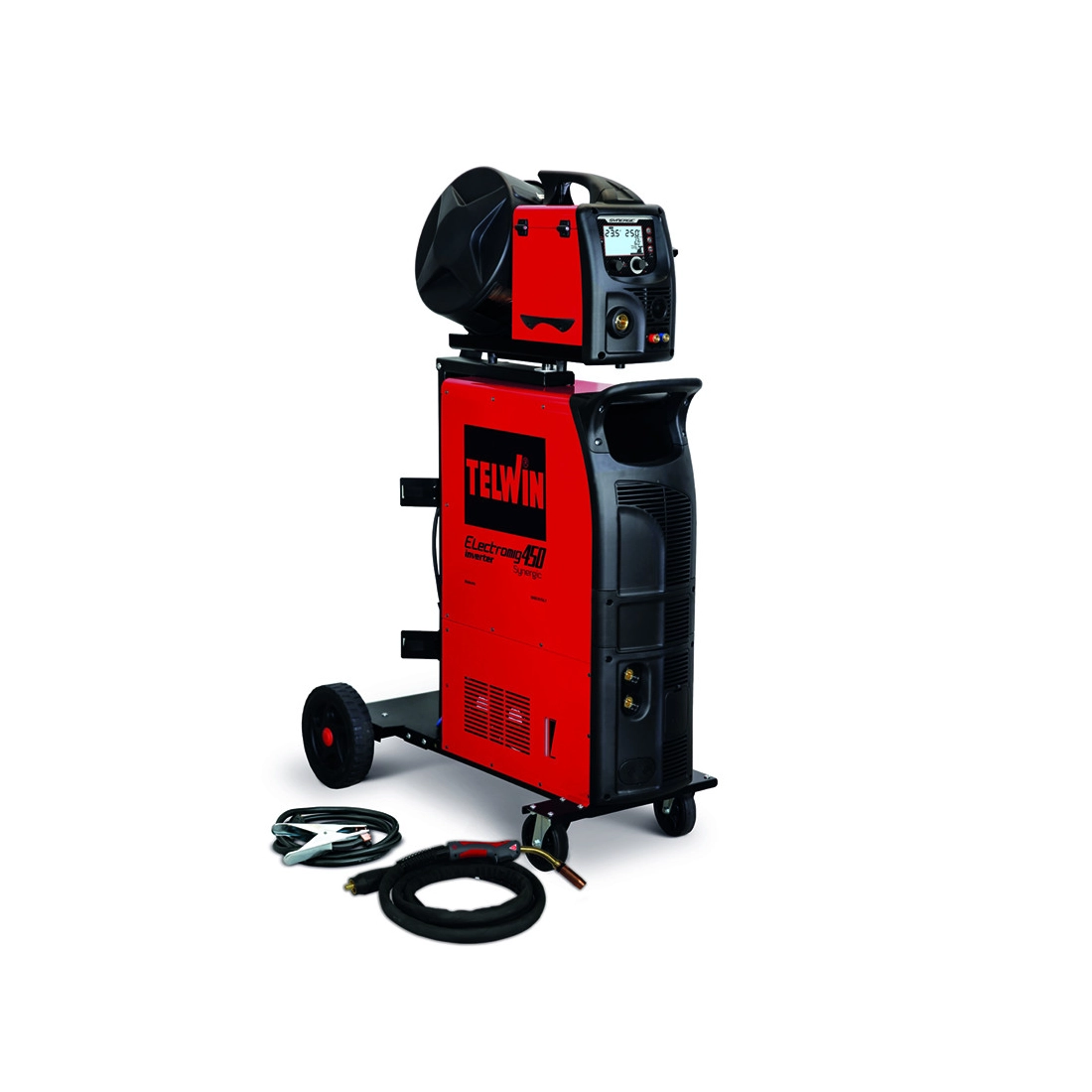

TELWIN ELECTROMIG 450 SYNERGIC 230V/400V AQUA

TELWIN ELECTROMIG 450 SYNERGIC is an inverter multi-process MIG-MAG/ FLUX/ BRAZING/ MMA and TIG DC-Lift weld controlled by microprocessor, with 4-roller wire feeder.

TELWIN ELECTROMIG 450 SYNERGIC is able to give you an incredible flexibility of use, with different materials (steel, stainless steel, aluminum) or brazed (galvanized sheets).

The wide variety of fields of application of the TELWIN ELECTROMIG 450 machine gives you the possibility to work efficiently, in the industrial sector, in maintenance, from installation to bodywork. The synergic adjustment makes the product easy to use. The ATC technology, Made in Telwin, makes it very easy to obtain excellent welds on thin thicknesses thanks to advanced arc control.

General characteristics of the TELWIN ELECTROMIG 450 SYNERGIC:

- Manual and synergic operation;
- 40 pre-set synergic curves;
- Possibility of creating, saving and recalling custom programs;
- MIG-MAG adjustments: wire rise ramp, electronic reactance, final wire burn back time, post gas;
- Selection of 2/4 time operation, Bi-Level, spot, inch and mm material thickness;
- Adjustments in MMA: hot start, arc force, anti-stick;
- VRD selection;
- Protections: thermostatic, over-voltage, under-voltage, over-current, moto-generator (+/-15%);
- TIG Lift.

TECHNICAL FEATURES TELWIN ELECTROMIG 450 SYNERGIC 230V/400V AQUA

Phase Type: Single Phase / Three Phase
Main Voltage: 230 / 400 V
Power Factor (cosϕ): 0.9
Frequency: 50 / 60 Hz
Current Range: 20 - 320 / 20 - 400 A
Max DC(EN 60974-1): 320 @ 25% / 400 @ 30% A
DC current: 200 / 270 A
Max no-load voltage: 106 / 73 V
Max current draw: 33 / 25 A
Max current draw at 60% - MAX: 17 / 15 A
Steel weld diameter: 0.6 - 2 mm
DC electrode diameter: 1.6 - 8 mm
Welding diameter STAINLESS STEEL: 0.8 - 2 mm
Welding diameter aluminum: 0.8 - 1.6 mm
Cored welding diameter 1 - 2 mm
Basing diameter: 0.8 - 1.2 mm
Guard of protection: IP23
Power consumption at 60%: 6.4 / 9.4 kW
Max power consumption: 12.6 / 16.5 kW
Efficiency: 89 %
Width: 1030 mm
Depth: 510 mm
Height: 1450 mm
Weight: 85 kg

Looking for a welding machine with different technical features? Here you can find the whole range of TELWIN welding machines or other specialized brands.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
