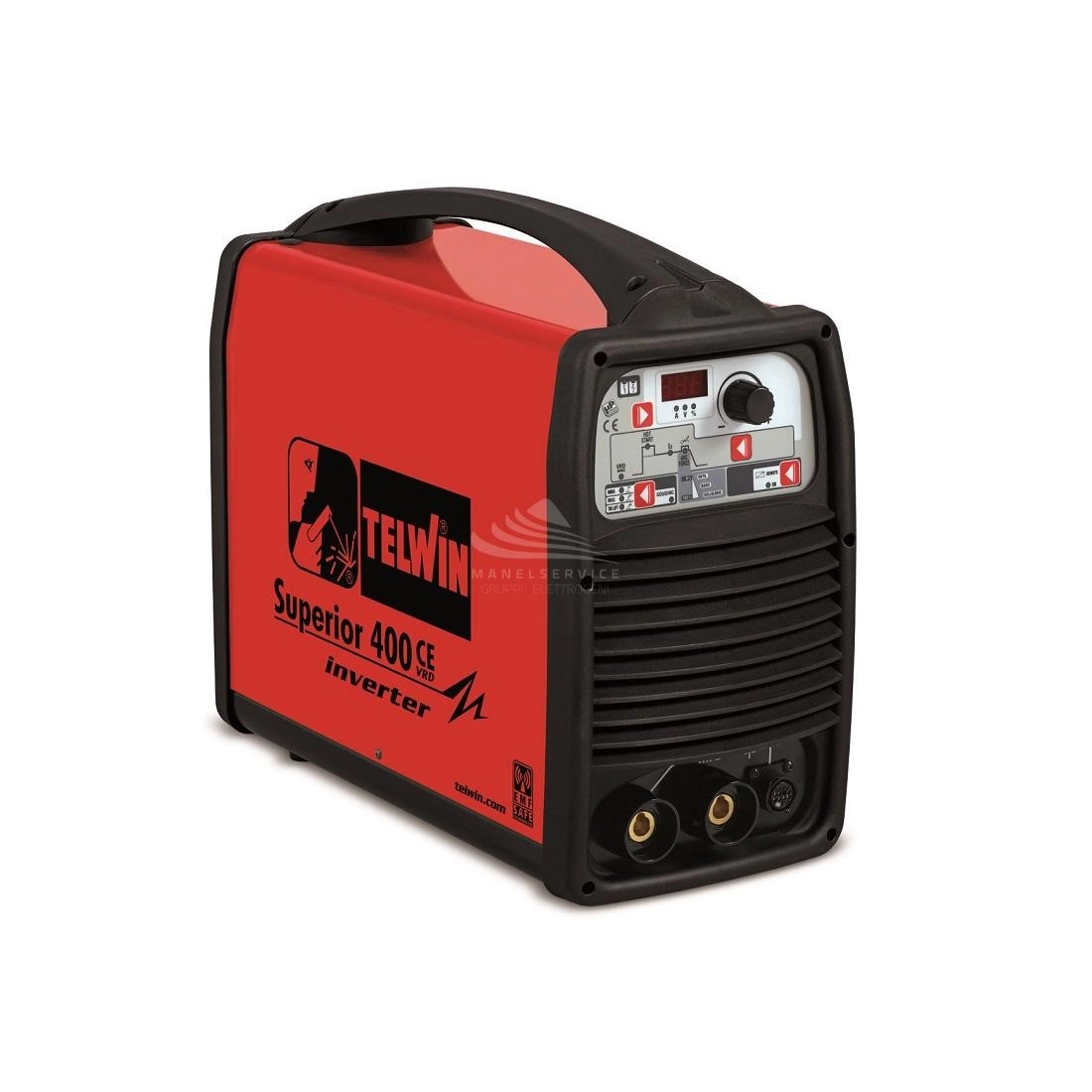

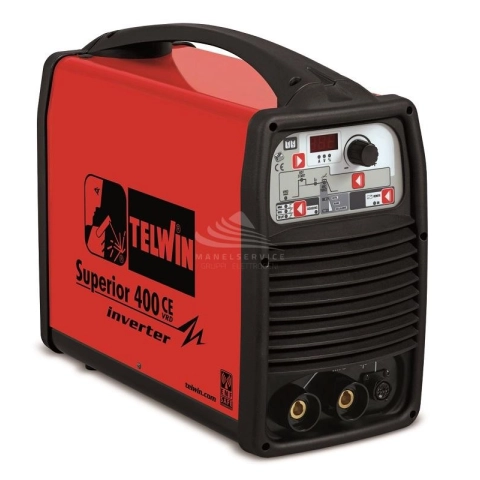

TELWIN SUPERIOR 400 CE VRD 230-400V
      TELWIN SUPERIOR 400 CE VRD 230-400V

      TELWIN SUPERIOR 400 CE VRD 230-400V

      DISCONTINUED PRODUCT

      Phase: Single phase / Three phase
      Frequency: 50/60 Hz
      Voltage: 230/400 V
      Type of welding current: DC
      Type of welding: MMA / TIG
      No-load voltage: 63 / 62 V
      Regulation current: 10-300 / 10-350 A
      Current max: 250 / 330 A
      Diameter electrodes: 1.6 - 6 mm
      Length: 530 mm
      Width: 240 mm
      Height: 450 mm
      Weight: 25 Kg

      Custom Quote
      Product: TELWIN SUPERIOR 400 CE VRD 230-400V

      PERSONAL DATA


      Ask a question
      Product: TELWIN SUPERIOR 400 CE VRD 230-400V
      Offer on letterhead
      Product: TELWIN SUPERIOR 400 CE VRD 230-400V
      TELWIN
      816034

      Data sheet

      Phase
      Single phase / Three phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 400
      Efficiency (%)
      86
      Protection degree
      IP23
      Maximum permissible current (A)
      24 / 20
      No-load voltage (V)
      63 / 62
      Regulation current (A)
      10 - 300 / 10 - 350
      Diameter electrodes (mm)
      1.6 - 6
      Type of welding current
      DC
      Type of welding
      MMA / MIG
      Current max (A)
      250 / 330
      Length (mm)
      530
      Width (mm)
      240
      Height (mm)
      450
      Voltage regulator
      Inverter
      Weight (Kg)
      25

      Specific References

      EAN13
      8004897932705
      New

      MMA,TIG-LIFT in direct current (DC), multiprocess, inverter welding machine with microprocessor control, designed for welding cellulosic electrodes and coated electrodes such as aluminium, rutile, basic, stainless steel, cast iron with diameter up to 6 mm.
      Superior 400 CE VRD has the "gouging" function and makes it possible MIG-MAG/FLUX welding with optional feeder fon industrial applications on steels and steel by-products.
      Features:
      - Compact and light
      - High welding current stability in spite of mains voltage fluctuations
      - Immediate control of the welding droplets transfer
      - Regulation of arc force and hot start according to the type of electrode in use
      - Anti-stick device
      - VRD device
      - Storage on on-board E2PROM of the last 10 alarms
      - Remote control connector
      - Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.


      Not binding images and technical data.
