GENSET MPM 6/230 S-L - ENGINE DRIVEN WELDER 6 KVA

GENSET MPM 6/230 S-L - ENGINE DRIVEN WELDER 6 KVA

OUT OF PRODUCTION

Maximum three-phase power: 6 KVA
Three phase maximum power: 4.8 KW
Three phase continuous use power: 5.4 KVA
Three-phase continuous use power: 4.32 KW
Single-phase maximum power: 5 KVA
Single-phase maximum power: 4 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Lombardini 15LD440 (STAGE V)
Starting: Manual
Consumption: 1.5 Lt/h
Length: 907 mm
Width: 630 mm
Height: 775 mm
Weight: 185 Kg
Super silenced

Payment methods:

Product: GENSET MPM 6/230 S-L - ENGINE DRIVEN WELDER 6 KVA

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: GENSET MPM 6/230 S-L - ENGINE DRIVEN WELDER 6 KVA

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: GENSET MPM 6/230 S-L - ENGINE DRIVEN WELDER 6 KVA

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MPM 6/230 S-L

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 4
Maximum power single phase (KVA): 5
Maximum power three phase (KW): 4.8
Continuous power three phase (KW): 4.32
Maximum power three phase (KVA): 6
Continuous power three phase (KVA): 5.4
Fuel: Diesel
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A CEE - 1 x 230V 16A CEE
Engine: Lombardini 15LD440
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 442
Number cylinders: 1
Cooling: Air
Alternator: Asynchronous
Protection degree: IP23
Motor insulation class: H
Regulation current (A): 20 - 210
Open circuit voltage (V): 65
Maximum diameter electrodes (mm): 6
Intermittence: 210 A al 60% / 180 A al 100%
Fuel tank capacity (L): 10.5
Consumption (L/h): 1.5
Running time (h): 7
Acoustic power: 96 dB(A)
Acoustic pressure: 71 dB(A) at 7 m
Length (mm): 907
Width (mm): 630
Height (mm): 775
Dry weight (Kg): 185
Silenced: Yes
Super silenced: Yes
Product type: Engine driven welder
Voltage regulator: No
Engine manufacturer: Lombardini

Specific References

Condition New

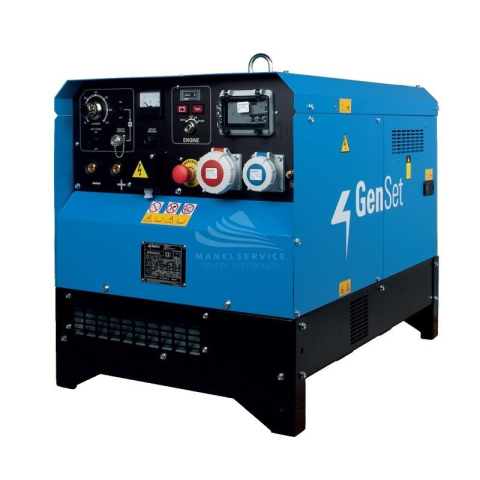

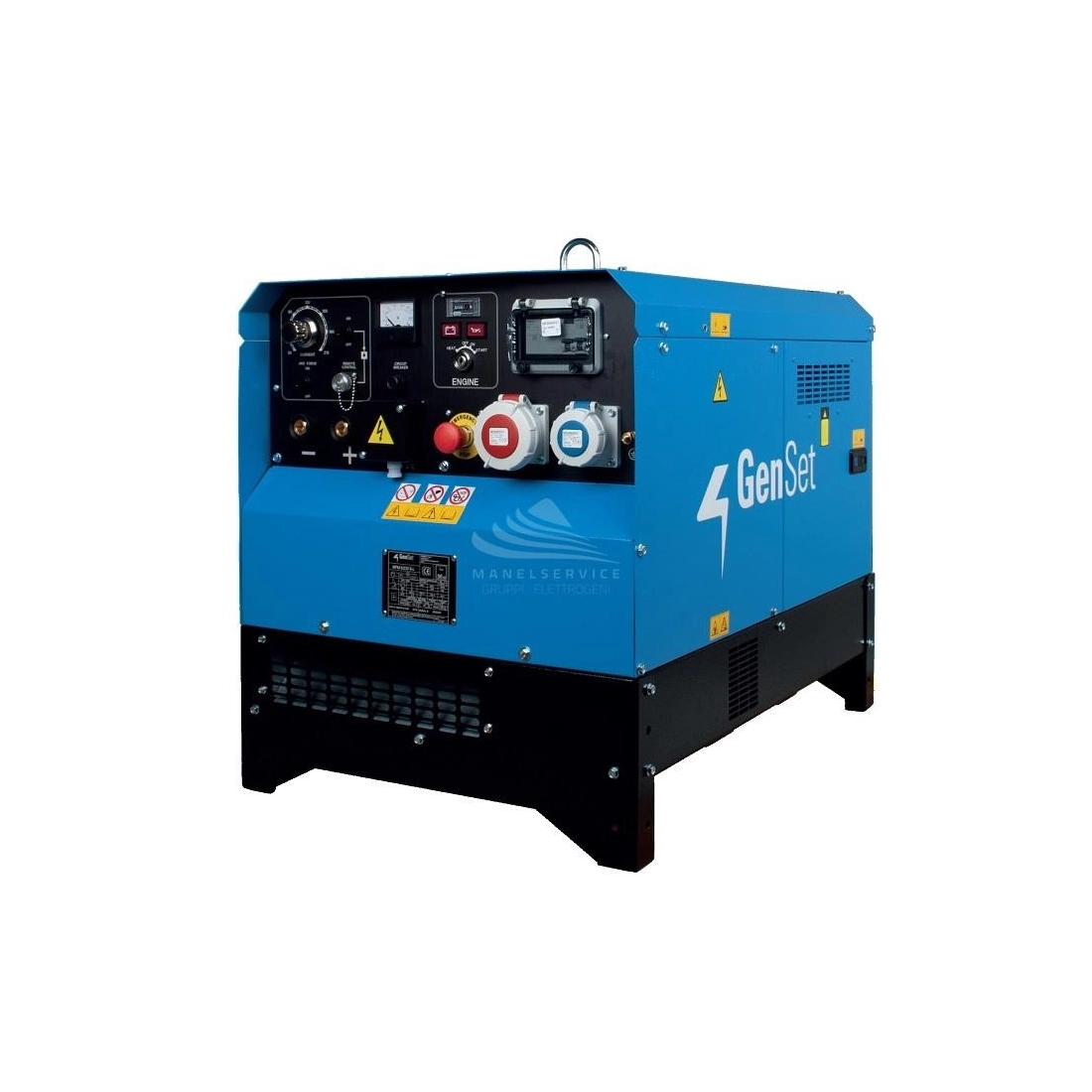

MOTORWELDING MACHINE WITH ELECTRODE AND TIG DC GENSET MPM 6-230 S-L THREEPHASE SINGLEPHASE 6KVA

GENSET MPM 6-230 S-L DC electrode and TIG motorwelder with a 6 KVA threephase singlephase diesel engine and electric start.
Thanks to its compact size and very low weight, the GENSET MPM 6-230 S-L motor welder is capable of performing both electrode and TIG welds.
The GENSET MPM 6-230 S-L has also a low fuel consumption: only 1.5 Lt/h at 75% of the load.
The GENSET engine driven welder, thanks to the high quality and efficiency of its components, is suitable for welding DC electrodes with a maximum diameter of 6 mm.

Main advantages of the GENSET MPM 6-230 S-L motorwelding machine

CONTINUOUS CURRENT MOTORWELDING MACHINE OF 210A
WITH ALTERNATED CURRENT THREEPHASE AND SINGLEPHASE GENERATOR
SILENTED VERSION
DESEL MOTOR 3000 RPM

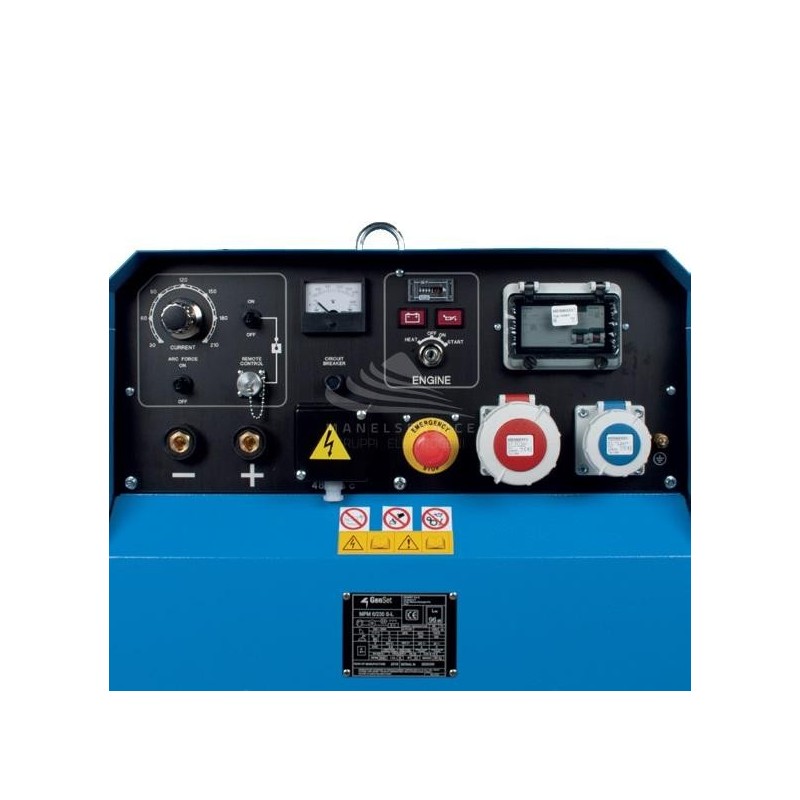

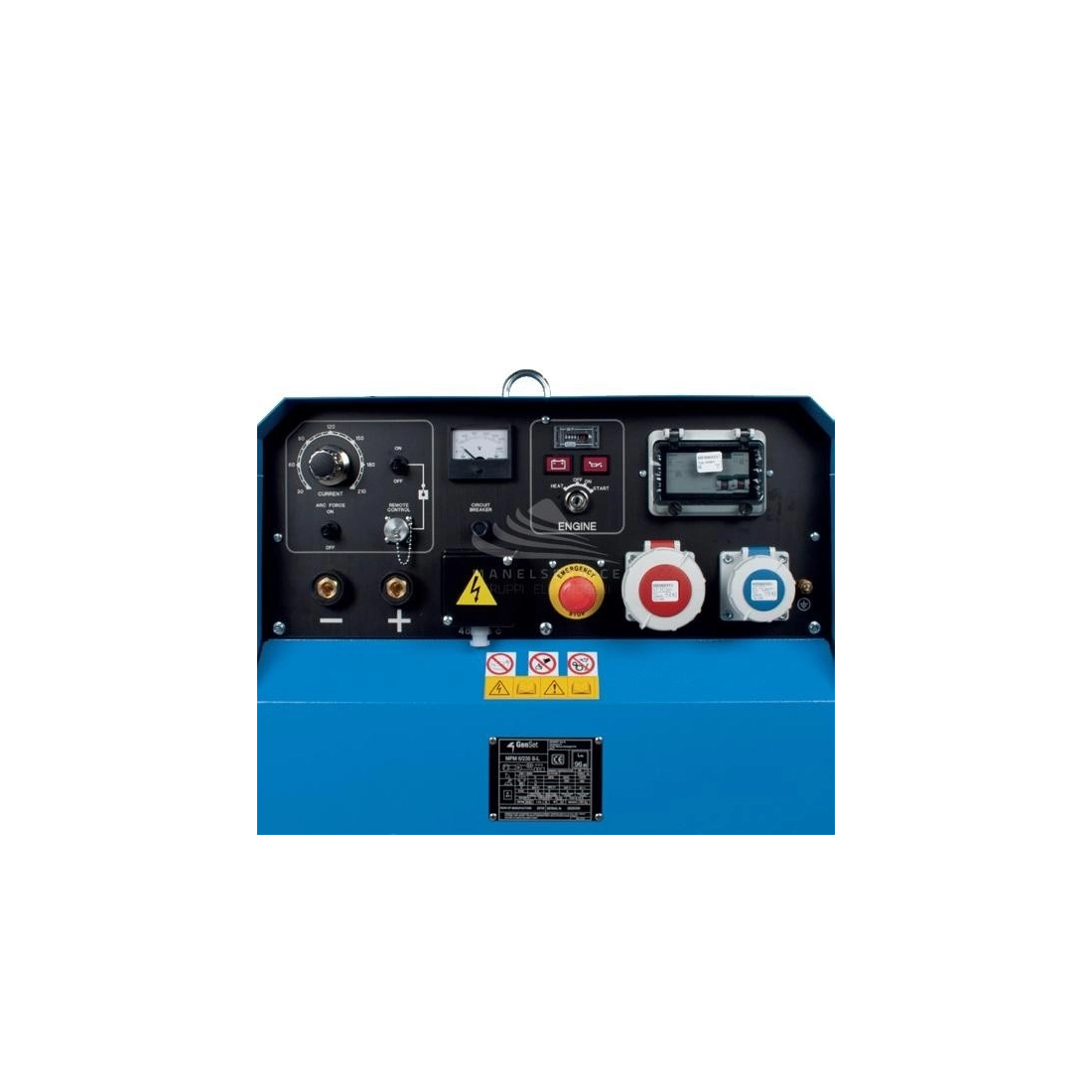

Technical characteristics of the GENSET MPM 6-230 S-L motorwelder

Welding method: Electrode / Tig
Forced arc selector
Socket for remote control
Automatic motor stop device with warning lights
for:
- battery charge failure
- low oil pressure
Battery 12V
Counter
Voltmeter
Emergency stop button
Life-saving differential switch
Protections for power outlets
1 three-phase outlet CEE 400V - 16A
1 single-phase socket CEE 230V - 16A
48V outlet
Engine oil extraction hose

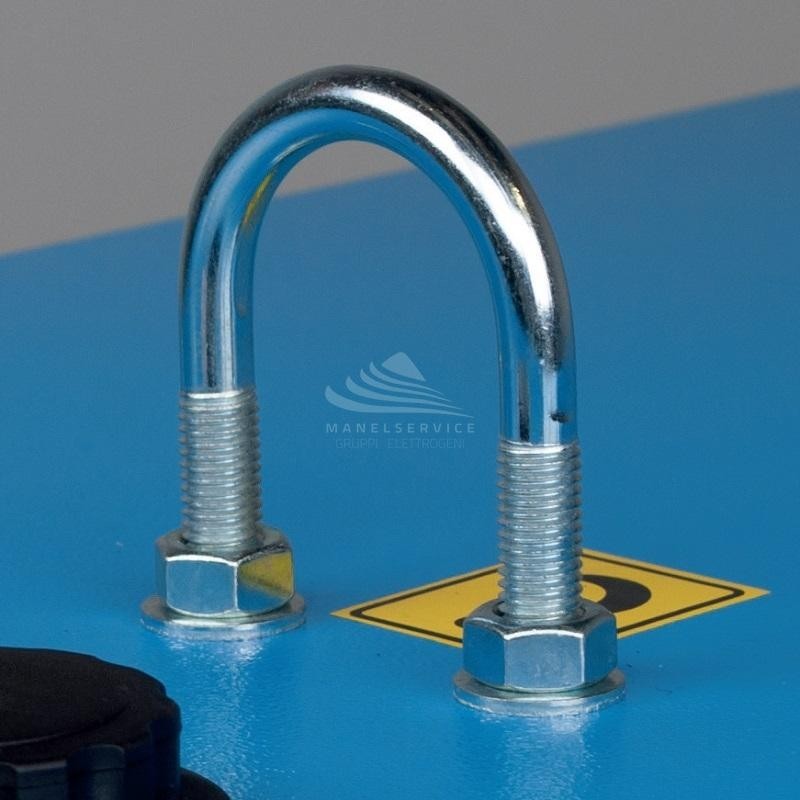

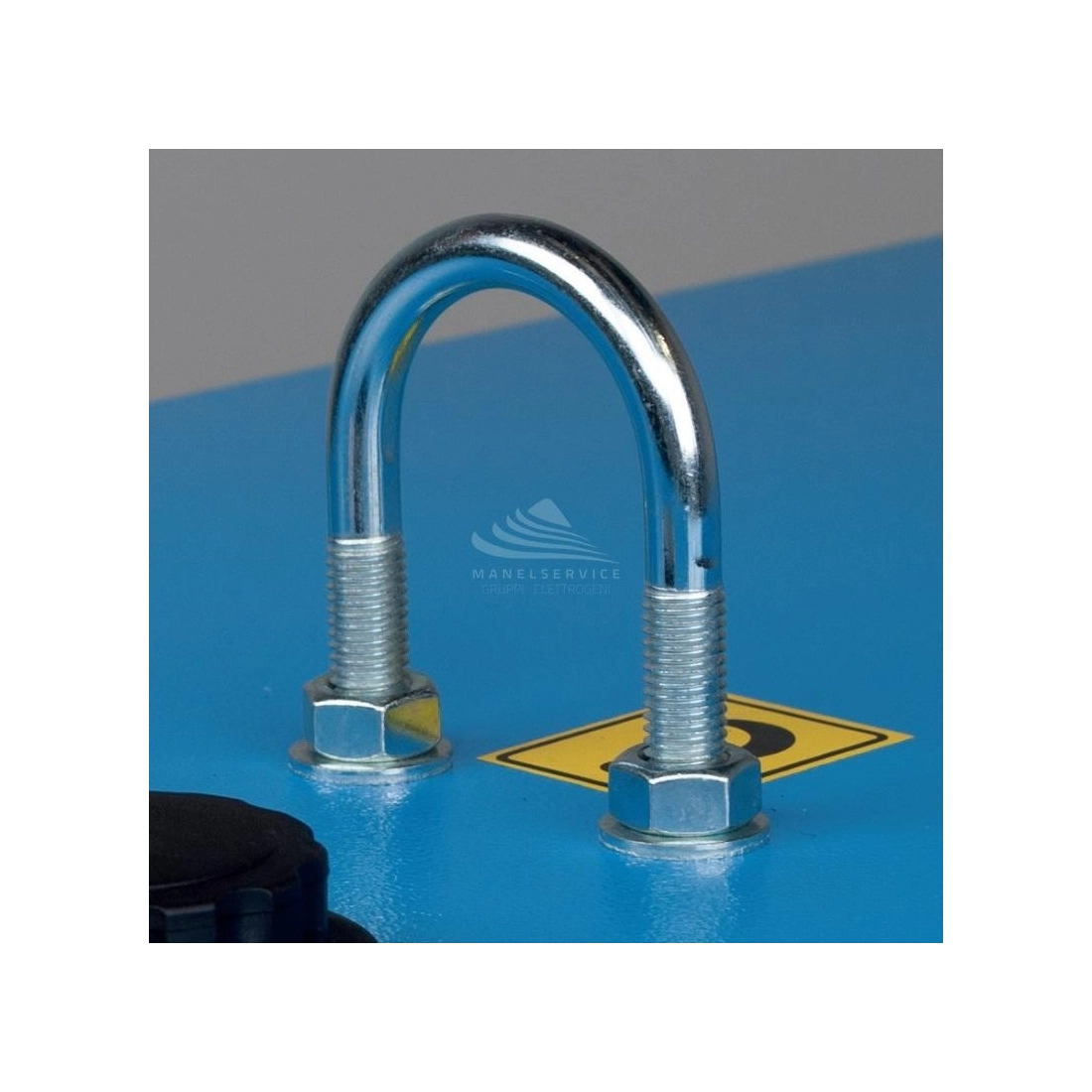

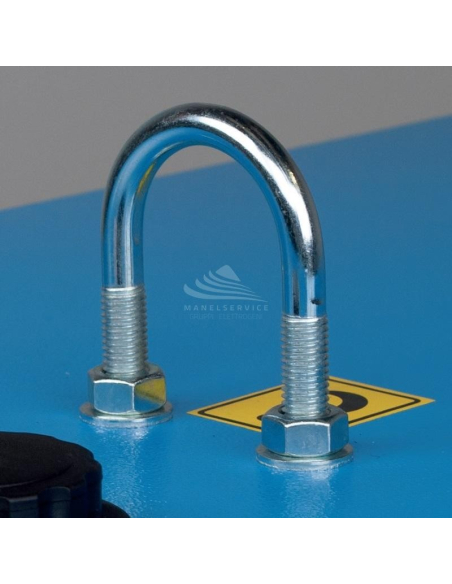

Central lifting hook
Lwa 96 (71 dB at 7 mt)
Ac 50 Hz alternator type: Asynchronous, self-excited and self-protected
Threephase power (emergency): 6kVA - 400V
Threephase power (continuous): 5.4kVA - 400V
Singlephase power (maximum): 5kVA - 230V
Singlephase power (maximum): 2kVA - 48V
Factor cos ф 0.8
Diesel engine 3000 rpm
Type: Lombardini 15LD440 - 1 cyl. - 442 cm3
9.3 hp (6.8 kWm)
Boosting: electric (12Vdc)
Cooling: air
Fuel consumption at 75% load: 1.5 lt/h
Isolation class: H
Environmental temperature: 40 °C (*)
Reference altitude: 1000 m (*)
Protection class: IP 23

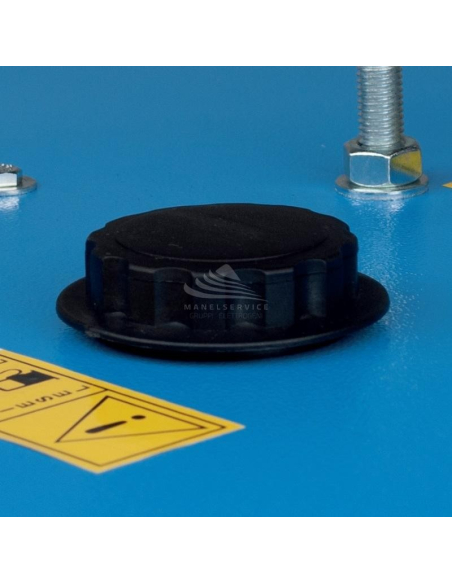

Fuel tank capacity: 10,5 lt
Dimensions (L x W x H): 907 x 630 x 775 mm
Unladen weight: 185 kg

To see the complete range of motorwelding machines Genset click here
Images and technical data are not binding.
