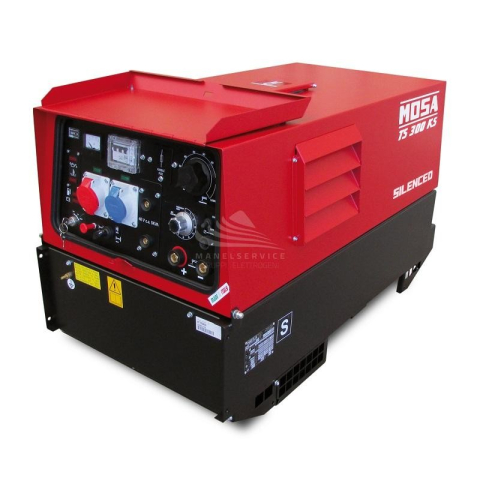

MOSA TS300 KSX/EL MOTORWELDING 10KVA

MOSA TS300 KSX/EL is a lightweight and efficient motorwelding, equipped with a KOHLER KD477-2 Diesel engine capable of delivering a power of 10KVA.

MOSA TS300 is equipped with a KOHLER KD477-2 Diesel engine and an asynchronous alternator, can be used simultaneously as a motorwelding and as a three-phase and single-phase generator set.

The welding current is continuous and can weld any type of electrode (basic, rutile, cellulosic) up to 6 mm in diameter.
MOSA TS 300 KSX/EL is suitable for a wide range of uses, such as work on building structures and piping.
The difference between the two models lies in their level of soundproofing. MOSA TS 300 is a super-silenced motorwelding, specially designed to reduce noise emission.

Standard version:
- Sockets: 1x400V 32A 3P+N+T CEE + 1x230V 32 A 2P+T CEE + 2 DINSE 200 A sockets for 48V

Versions on request
- Sockets: 1x400V 32 A 3P+N+T CEE - 1x230V 32A 2P+T CEE + 2x230V 16A 2P+TCEE
- Sockets: 1x400V 32A 3P+N+TCEE - 1x230V 32 A 2P+TCEE + 2x110V 16A 2P+TCEE

MOSA TS300 KSX/EL MOTORWELDING TECHNICAL SPECIFICATIONS

Fuel: Diesel
Phase Type: SinglePhase / ThreePhase
Voltage: 48 V / 110V / 230 V / 400 V
Max SinglePhase 230 V Output (kVA): 5
Max ThreePhase 400 V Output (kVA): 10
Max 110 V Power: 2. 5
Max 48 V power: 5
Adjustment range: 20 A - 300 A
Welding urrent (A): 300 A at 60% - 250 A at 100%
Weldingcurrent type: DC
Weldingtype: MMA STICK - TIG
Electrodes supported: all maximum diameter 6 mm
Silenced: 71 dB(A) @ 7m
LENGTH (mm): 1320
WIDTH (mm): 790
HEIGHT (mm): 750
Dry weight (Kg): 375
Electrical Power
