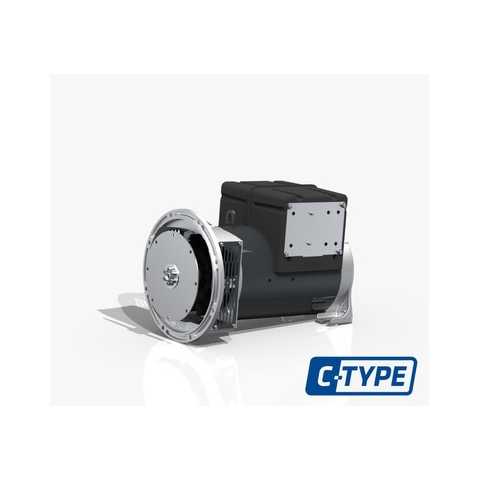

Mecc Alte ECP3-1S/4 TYPE C 3-Phase 6.5 kVA AVR Generator

The Mecc Alte ECP3-1S/4 TYPE C is a 6.5 kVA three-phase generator designed and built to meet the needs of industrial and professional applications. The ECP3 range, of which the ECP3-1S/4 TYPE C is a part, is fully designed and manufactured in accordance with the ISO 9001 standard. The windings are 2/3-pitch to reduce voltage harmonics and prevent excessive neutral currents in some parallel operating conditions. Some models (excluding ECP3) are equipped with a fully interconnected aluminum or copper damper cage on the rotor. The alternator is capable of withstanding up to 5G in any direction and 9G vertically. The ECP3-1S/4 TYPE C alternator is available with MAUX and DER1/DER2 excitation and regulation systems. The PMG (Permanent Magnet Generator) option is available as a pre-installed or retrofit accessory. The ECP3-1S/4 TYPE C alternator is a reliable and efficient solution for generating three-phase power in industrial and professional settings.

Main alternator features ECP3-1S/4:
Phase type: Three-phase (with the possibility of 12-wire reconnection for single-phase configuration)
Maximum three-phase power: 7 kVA at 50 Hz and 8.4 kVA at 60 Hz
Continuous three-phase power: 6.5 kVA at 50 Hz and 7.8 kVA at 60 Hz
Frequency: 50/60 Hz
Voltage: 230/400 V (with reconnection for alternative configurations)
Protection class: IP23 (IP23 DP, IP23 with IP45 terminal box, IP43 and IP45 options available)
Alternator speed: 1500/1800 rpm
Number of poles: 4
Efficiency: 81.8%
Weight: 59 kg
Brushless: Yes
Voltage regulator: Digital AVR with power supply via auxiliary winding (MAUX)
Compliance with standards: CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, NF 51.111, NEMA MG 1-2011, ISO 8528-3

This ECP3-1S/4 alternator offers great advantages such as:
Precise and reliable self-regulation: The digital AVR regulator ensures a virtually constant power supply in any operating condition.
Robust and reliable design: The sturdy mechanical structure with IP23 protection class (options available for greater protection) is designed to withstand harsh environmental conditions.
Configuration versatility: The possibility of reconnecting the wires allows the alternator to be configured for different voltages and single-phase or three-phase configurations.
Simplified maintenance: Easy access to components for routine checks and maintenance.
Wide range of accessories: Optional items such as PTC thermistors, air filters, parallel (standard from ECO38), current and voltage transformers, and anti-condensation heaters are available.

Looking for an alternator with different characteristics? HERE you can find the entire MECC ALTE range or other specialised brands.

Non-binding images and technical data.
