Phase: Three phase
Frequency: 50 Hz
Voltage: 400 V
Protection: IP23
Alternator rpm: 1500 rpm
Poles: 4
Three phase power (KW): 320 KW
Three phase power (KVA): 400 KVA
Efficiency: 93.4%
Weight: 910 Kg
AVR
Data sheet
Specific References
Three phase brushless alternator - AVR.
- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

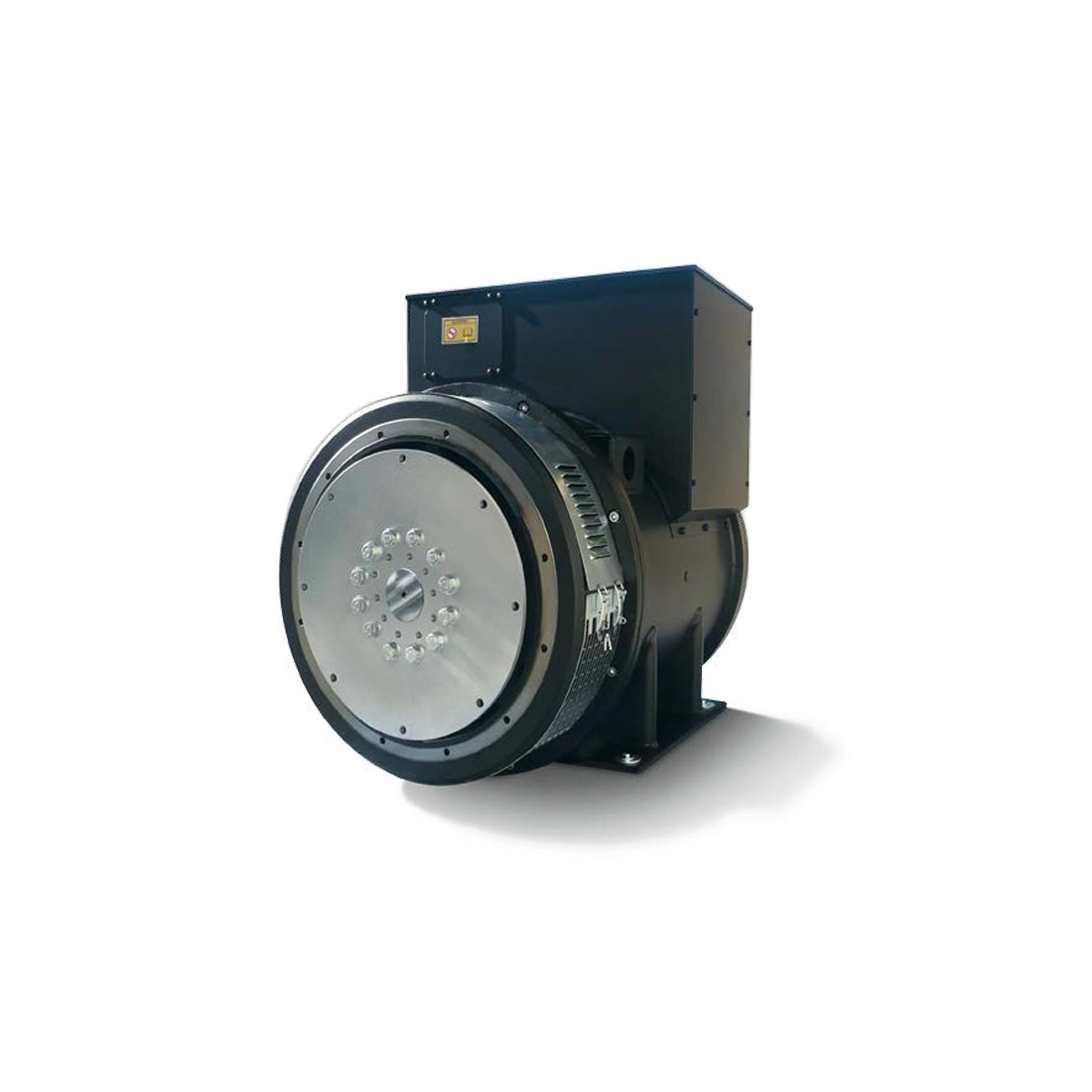

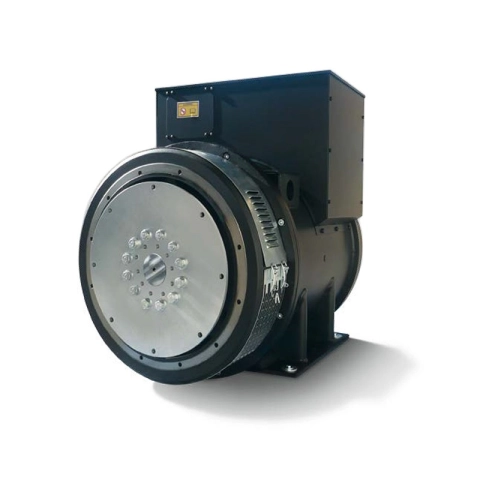

The image is purely indicative.
