Discounted price
tax excl.
tax excl.
300.00 €
World's Fastest Online Shopping Destination
World's Fastest Online Shopping Destination
SINCRO HB4 SB SINGLE-THREE PHASE ALTERNATOR 17.5KVA AVR
HB4 SB SAE4 d6.5
Phase: Single / Three Phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 10.5
Three Phase Output (kVA): 17.5
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 93
Protection: IP23
HB4 SB SAE4 d6.5
Data sheet
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 1500
- Poles
- 4
- Single-phase power (KW)
- 8.4
- Single-phase power (KVA)
- 10.5
- Three-phase power (KW)
- 14
- Three-phase power (KVA)
- 17.5
- Efficiency (%)
- 84.4
- Protection degree
- IP23
- Dry weight (Kg)
- 93
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
Specific References
New
Three phase brushless alternator - AVR.
- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 12
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: HB alternators can be connected for single-phase use

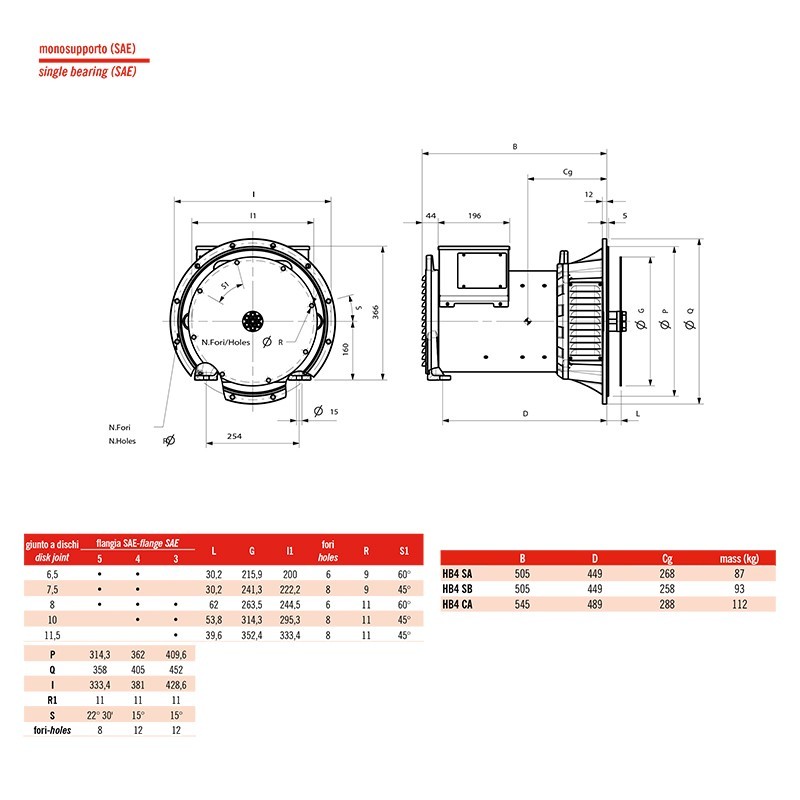

The image is purely indicative.
