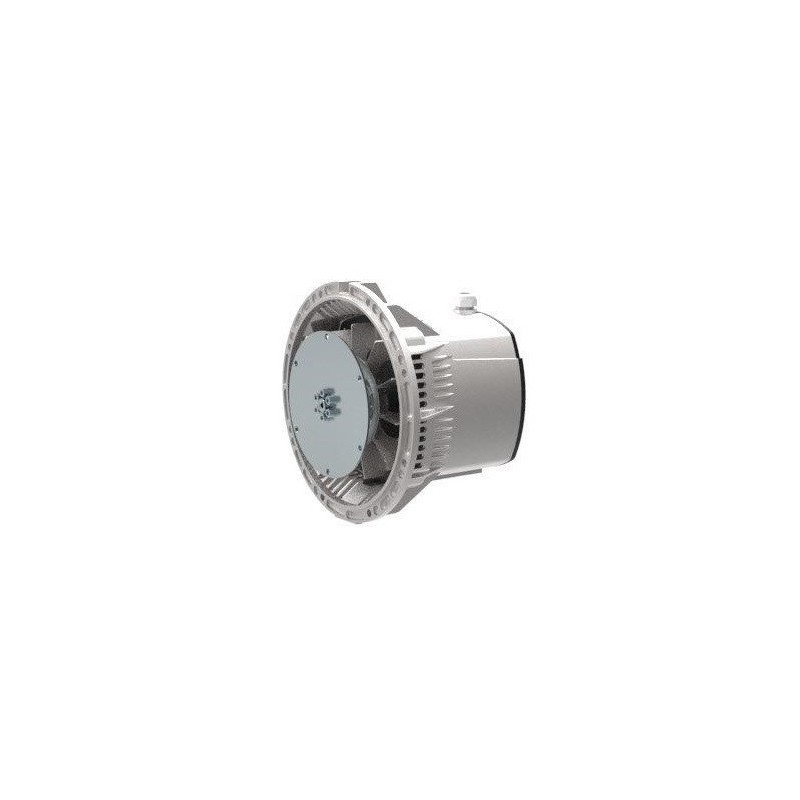

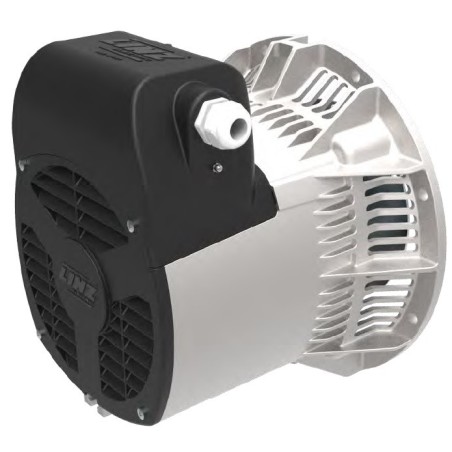

LINZ ALUMEN MD Single-phase alternator 5 kVA 50 Hz with Damping Cage

Reference ALUMEN MD 6.5 50 Hz

Rated power at 50 Hz (kVA): 5
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
1500 rpm
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 3.1 at 50 Hz
Suppression standard R.F.F.I. EN55011
With damping cage and external cable extension

List price

1,050.42 € tax incl.

861.00 € tax excl.

Discounted Price

844.23 € tax incl.

691.99 € tax excl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference ALUMEN MD 6.5 50 Hz

Data sheet

Phase: Single phase
Continuous power single phase (KW): 5
Continuous power single phase (KVA): 5
Frequency (Hz): 50
Voltage (V): 230
Engine rpm (rpm): 1500
Alternator: Synchronous, brushless
Poles: 4
Single-phase power (KVA): 5
Protection degree: IP21
Motor insulation class: H

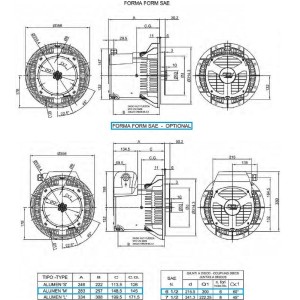

Length (mm): 283
Width (mm): 356
Height (mm): 356
Brushes: No
Type of alternator: Constant Speed
Voltage regulator: Capacitor
Weight (Kg): 41.7

Specific References

Condition New

The LINZ ALUMEN series is a set of single-phase, 4-pole brushless alternators with an auxiliary winding to regulate the voltage, loaded onto highly insulated capacitors to protect from high ignition voltage.
This series has been especially designed for use in LIGHTING TOWERS with metal halide, halogen or LED lamps.

CHARACTERISTICS

Best-in-class efficiency
Compact and easy to assemble
Flexible design
Easy maintenance

Type: Single-phase alternators
Poles: 4
Phases: Single-phase
Regulation: CAPACITOR
Application: PORTABLE, LIGHTING TOWERS

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
