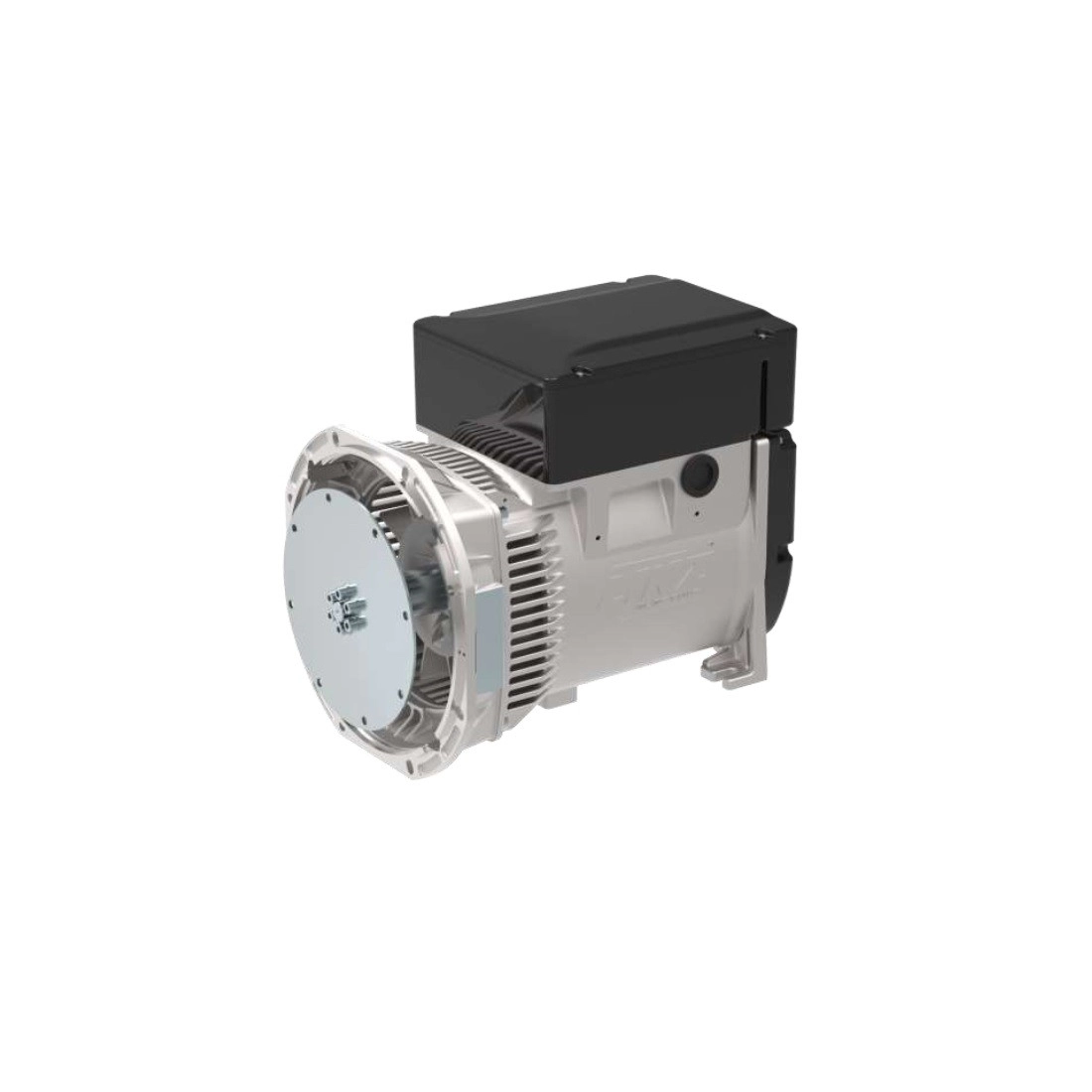

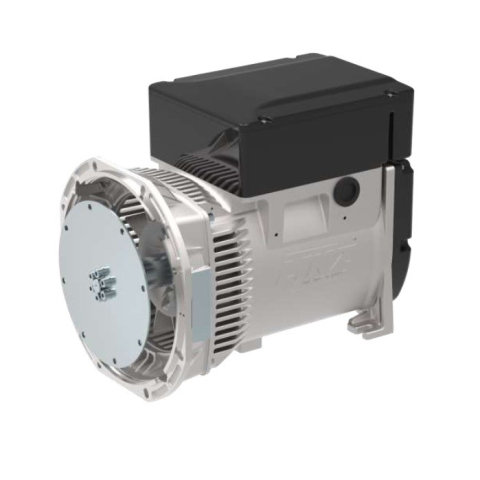

LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound

LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound
LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound
LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound
LINZ E1S13S A/4 Three-phase alternator 4 poles 8 kVA 50 Hz Compound
E1S13S A/4 50 Hz J609b

Rated power at 50 Hz (kVA): 8
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: with brushes
Type of regulation: Compound
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 5.4 at 50 Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1S13S A/4

Phase
Three phase
Continuous power three phase (KW)
6.4
Continuous power three phase (KVA)
8
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
8
Protection degree
IP21
Motor insulation class
H
Length (mm)
403
Width (mm)
270
Height (mm)
379
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
51
Brand

E1S13/4 series are three-phase 4 poles alternators with brushes and compound regulation.

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: COMPOUND
  • Application: PORTABLE

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€916.32 €916.32

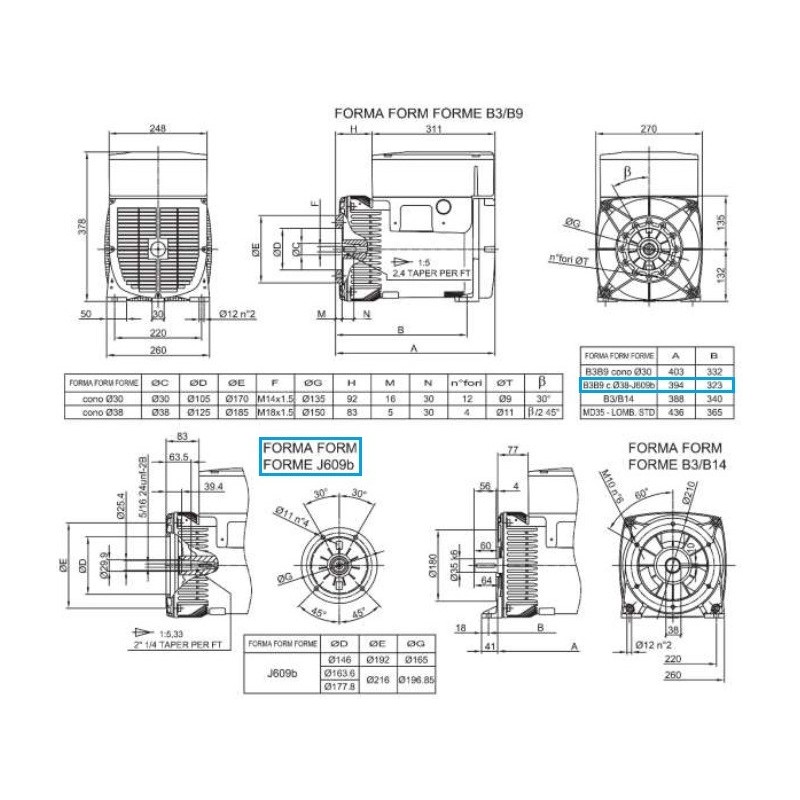

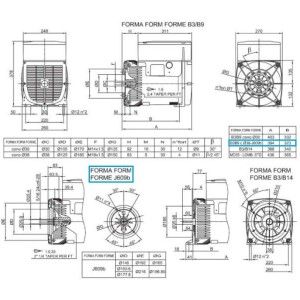

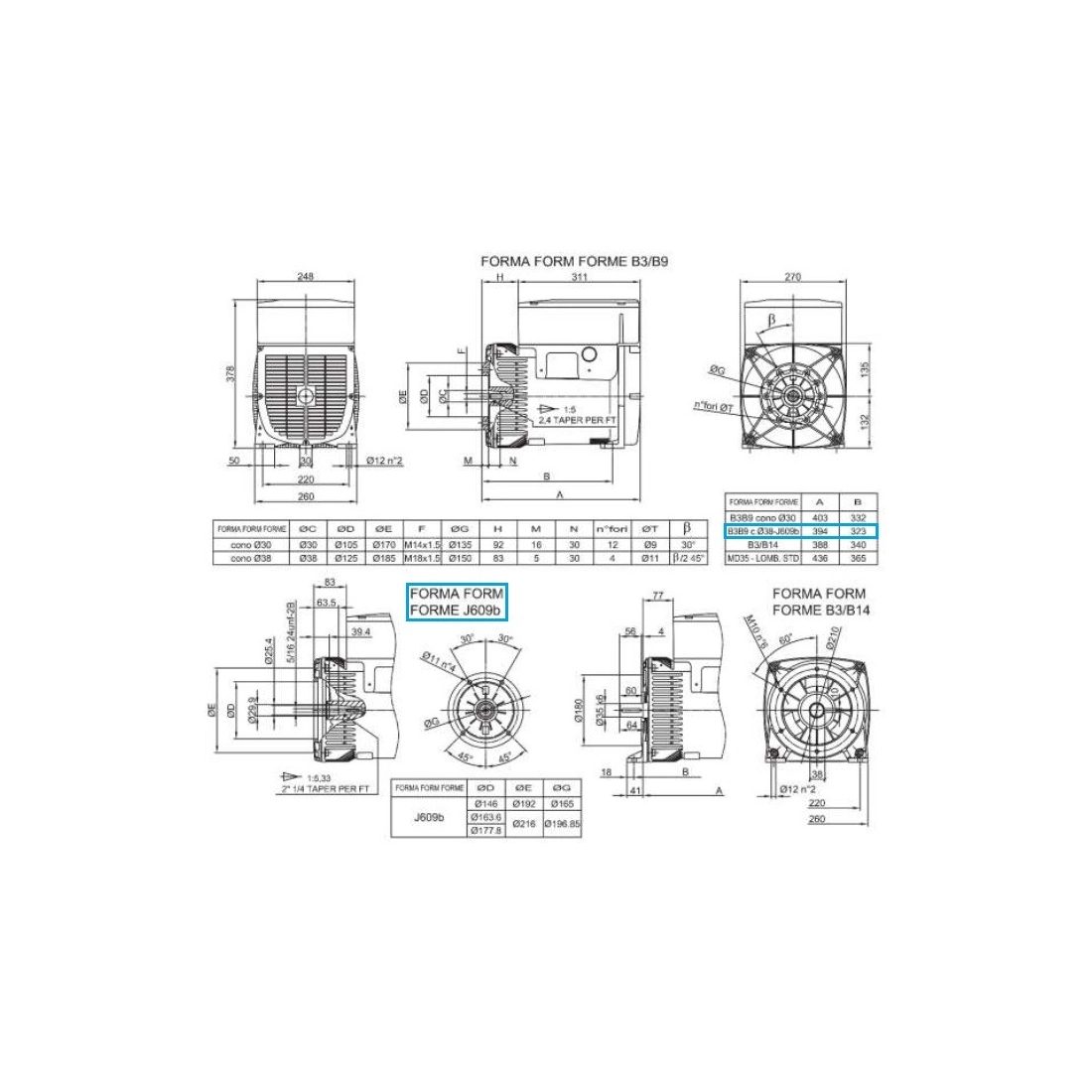

Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5
  • STD Lombardini
  • Gear box coupling flange

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.

Download PDF
