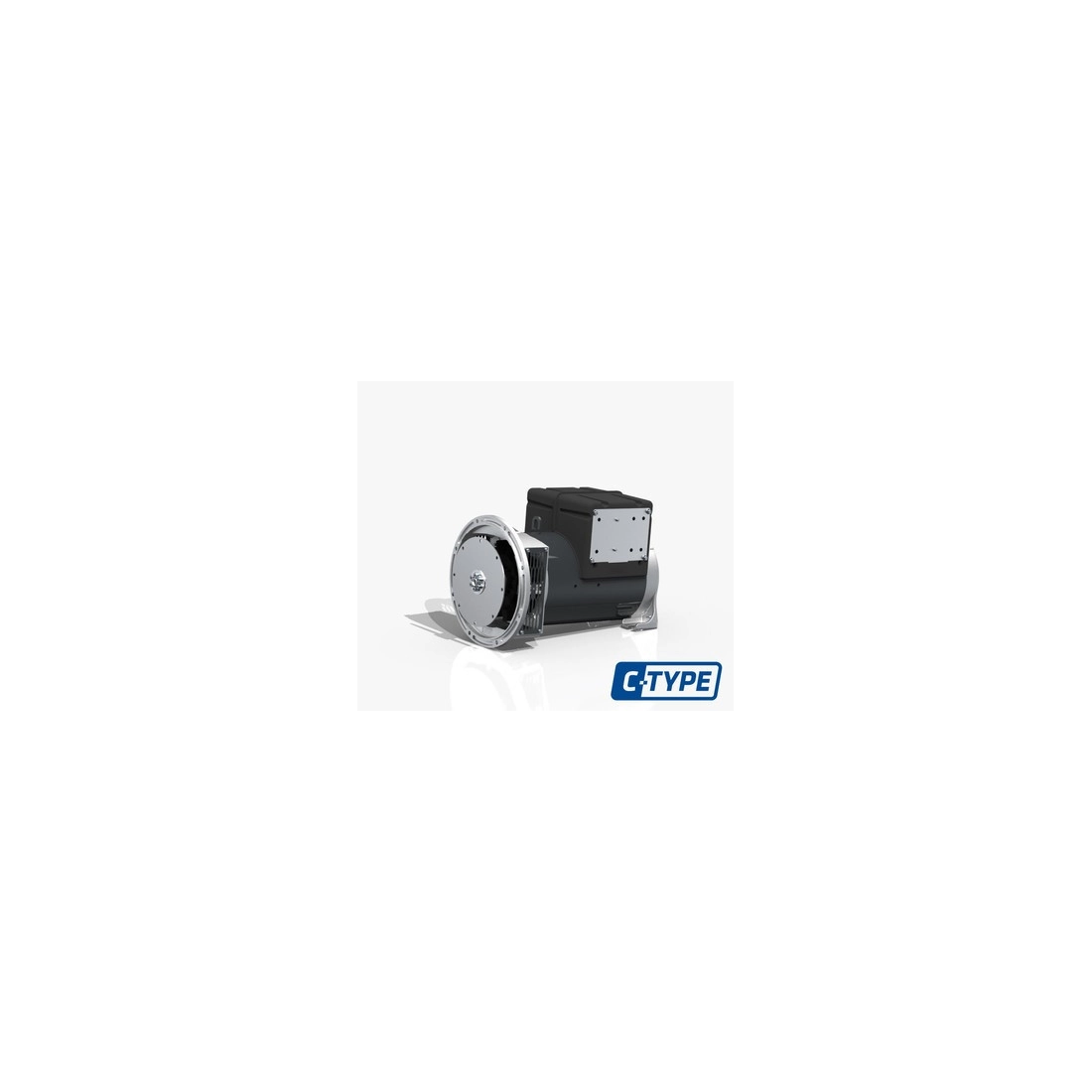

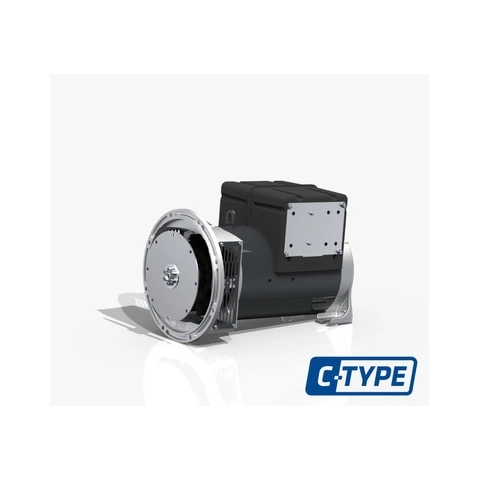

MECC ALTE ECP3-1S/4 THREE PHASE ALTERNATOR 6.5 KVA AVR

MECC ALTE ECP3-4 THREE-PHASE ALTERNATOR AVR
search
  • MECC ALTE ECP3-4 THREE-PHASE ALTERNATOR AVR

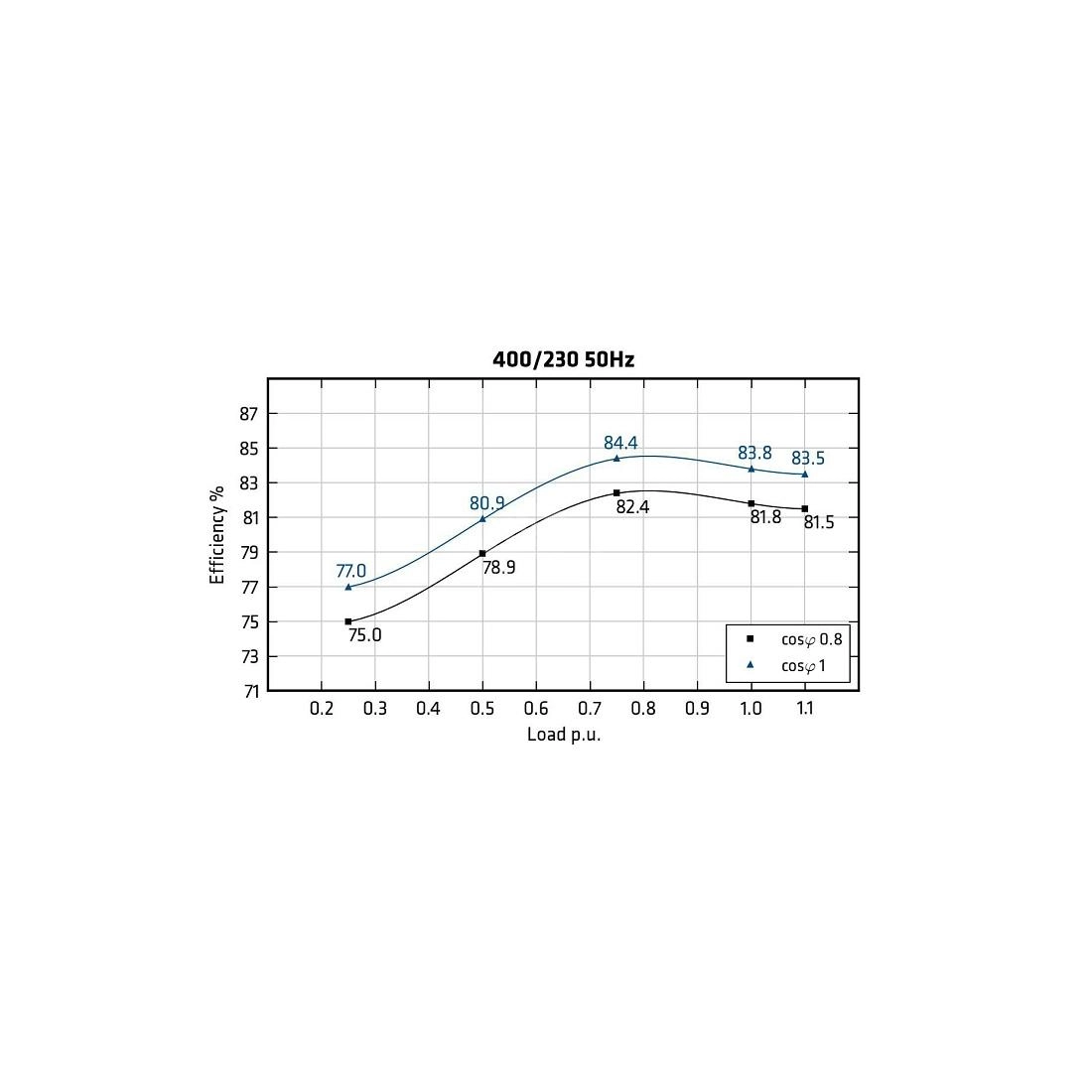

  • MECC ALTE ECP3-1S/4 - Efficiency
  • MECC HIGH ECP3-1S/4 THREE-PHASE ALTERNATOR AVR
  • MECC HIGH ECP3-1S/4 THREE-PHASE ALTERNATOR AVR
MECC ALTE
ECP3-1S/4 S3 6.5
New product

Phase type: Single-phase / Three-phase
Maximum single-phase output:
(50Hz) 5KVA / 5KW
(60Hz) 6KVA / 6KW
Single-phase continuous output:
(50Hz) 4.6KVA / 4.6KW
(60Hz) 5.5KVA / 5.5KW
Maximum three-phase output:
(50Hz) 7KVA / 5.6KW
(60Hz) 8.4KVA / 6.7KW
Three-phase continuous output:
(50Hz) 6.5KVA / 5.2KW
(60Hz) 7.8KVA / 6.2KW
Frequency: 50 / 60 Hz
Voltage: 230 / 400 V
Degree of protection: IP23
Alternator speed: 1500 / 1800 rpm
Number of poles: 4

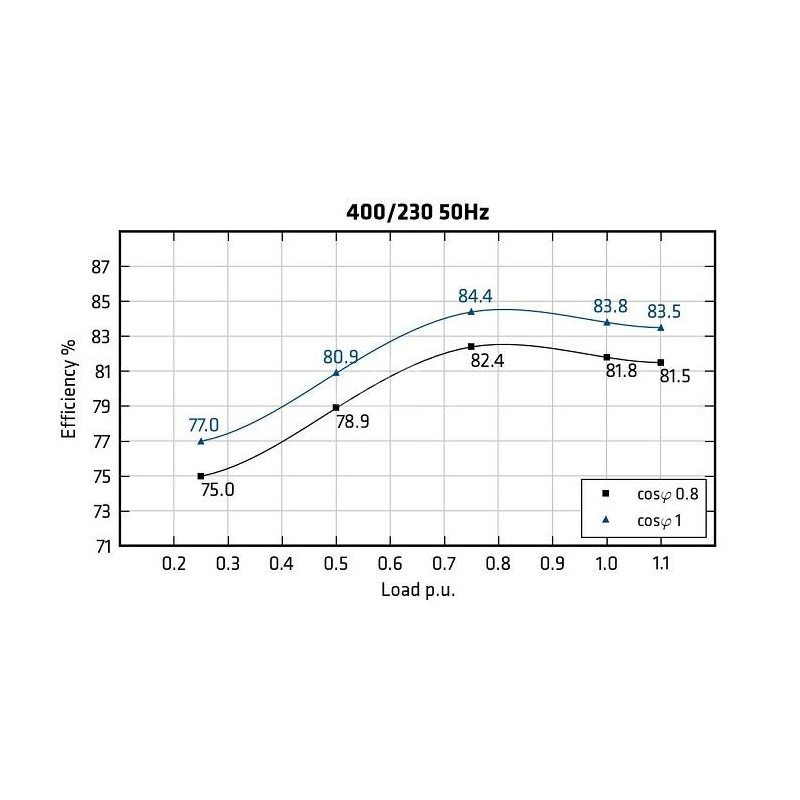

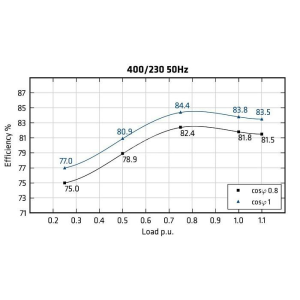

Efficiency: 81.8%
Weight: 59 kg
Constant speed alternator
Brushless
Voltage regulator: AVR

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
5
Continuous power single phase (KW)
4.6
Maximum power single phase (KVA)
5
Continuous power single phase (KVA)
4.6
Maximum power three phase (KW)
5.6
Continuous power three phase (KW)
5.2
Maximum power three phase (KVA)
7
Continuous power three phase (KVA)
6.5
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
1500 / 1800
Poles
4
Single-phase power (KVA)
6
Three-phase power (KVA)
8.4
Efficiency (%)
81.8
Protection degree
IP23
Acoustic pressure
58 dB(A) at 7 m
Brushes
No
PMG
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
59
Details

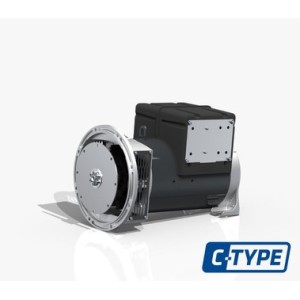

Mecc Alte ECP3-1S/4 TYPE C 3-Phase 6.5 kVA AVR Generator

The Mecc Alte ECP3-1S/4 TYPE C is a 6.5 kVA three-phase generator designed and built to meet the needs of industrial and professional applications. The ECP3 range, of which the ECP3-1S/4 TYPE C is a part, is fully designed and manufactured in accordance with the ISO 9001 standard. The windings are 2/3-pitch to reduce voltage harmonics and prevent excessive neutral currents in some parallel operating conditions. Some models (excluding ECP3) are equipped with a fully interconnected aluminum or copper damper cage on the rotor. The alternator is capable of withstanding up to 5G in any direction and 9G vertically. The ECP3-1S/4 TYPE C alternator is available with MAUX and DER1/DER2 excitation and regulation systems. The PMG (Permanent Magnet Generator) option is available as a pre-installed or retrofit accessory. The ECP3-1S/4 TYPE C alternator is a reliable and efficient solution for generating three-phase power in industrial and professional settings.

Main alternator features ECP3-1S/4:
Phase type: Three-phase (with the possibility of 12-wire reconnection for single-phase configuration)
Maximum three-phase power: 7 kVA at 50 Hz and 8.4 kVA at 60 Hz
Continuous three-phase power: 6.5 kVA at 50 Hz and 7.8 kVA at 60 Hz
Frequency: 50/60 Hz
Voltage: 230/400 V (with reconnection for alternative configurations)
Protection class: IP23 (IP23 DP, IP23 with IP45 terminal box, IP43 and IP45 options available)
Alternator speed: 1500/1800 rpm
Number of poles: 4
Efficiency: 81.8%
Weight: 59 kg
Brushless: Yes
Voltage regulator: Digital AVR with power supply via auxiliary winding (MAUX)
Compliance with standards: CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, NF 51.111, NEMA MG 1-2011, ISO 8528-3

This ECP3-1S/4 alternator offers great advantages such as:
Precise and reliable self-regulation: The digital AVR regulator ensures a virtually constant power supply in any operating condition.
Robust and reliable design: The sturdy mechanical structure with IP23 protection class (options available for greater protection) is designed to withstand harsh environmental conditions.
Configuration versatility: The possibility of reconnecting the wires allows the alternator to be configured for different voltages and single-phase or three-phase configurations.
Simplified maintenance: Easy access to components for routine checks and maintenance.
Wide range of accessories: Optional items such as PTC thermistors, air filters, parallel (standard from ECO38), current and voltage transformers, and anti-condensation heaters are available.

Looking for an alternator with different characteristics? HERE you can find the entire MECC ALTE range or other specialised brands.

Non-binding images and technical data.
