ENGINES

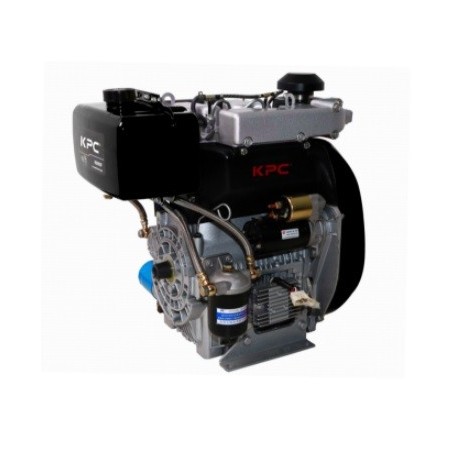

Fuel: Diesel Engine Type: Twin cylinder, 4 stroke, air cooled Starter: Electric Shaft: Cylindrical 25.4 mm Nominal Power: 14 kW Power in Hp: 19 hp Displacement: 997 cc Diameter * Stroke: 92 * 75 mm Compression ratio: 19:1 Oil: SAE10W30 Oil Capacity: 2.75 L Width: 582 mm Length: 462 mm Height: 582 mm Net weight: 78 kg

Fuel: Gasoline Mechanical power: 9 Hp Displacement: 290 cc RPM: 3600 rpm Bore x stroke: 80 x 58 mm Compression ratio: 8,2 : 1 Starting: Recoil start with recoil starter Fuel tank capacity: 6 l Oil: Multigrade SAE 10W 40 SJ Oil sump capacity: 1.1 l Oil alert device: Standard Air filter: dry / Oil bath Width: 545 mm Length: 460...

Fuel: Diesel Mechanical power: 10 Hp Displacement: 406 cc RPM: 3600 rpm Bore x stroke: 86 x 70 mm Compression ratio: 19 : 1 Boosting: Electric Fuel tank capacity: 5,5 l Oil: Multigrade SAE 15W 40 SF Oil pan capacity: 1.65 l Oil alert device: Standard Air filter: dry / Oil bath Width: 417 mm Length: 470 mm Height: 494 mm<br...

Engine type: OHV horizontal shaft, 4-stroke, eight cycle N° cylinders: 1 inclined 25° Cooling: air, forced Bore x stroke: 88 x 64 mm Displacement: 389 cm3 Compression ratio: 8. 0 : 1 Net power: 8.2 kW (11.0 HP) / 3 600 rpm Continuous rated power 3000 rpm: 6.0 kW (8.0 HP) Continuous rated power 3600 rpm: 6.6 kW (8.9 HP) Maximum torque: 25. 1 Nm /...

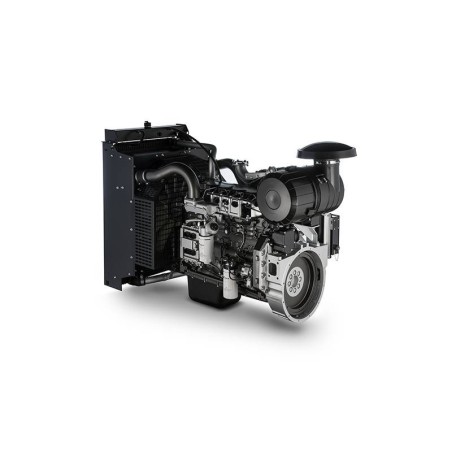

Stand-by power [mech]: 200 KW Fuel tank: Diesel Engine speed: 1500 rpm Cycle: 4-stroke Diagram of the air charging system : Turbocharged with post-cooling Number of cylinders: 6 Arrangement of cylinders: in-line Bore: 104 mm Stroke: 132 mm Stroke / Bore: 1, 27 Displacement: 6.7 l Unit displacement 1.12 l Cooling scheme: liquid<br...

Standby power[mech]: 244 KW Fuel: Diesel Engine revolutions: 1500 rpm Cycle: 4-stroke Air charge system scheme: turbocharged with aftercooling Number of cylinders: 6 Cylinder arrangement: in-line Bore: 104 mm Stroke: 132 mm Stroke / Bore: 1.27 Displacement: 6.7 l Unit displacement 1.12 l Cooling scheme: liquid Compression...

Engine type: OHV horizontal shaft, eight cycle, 4-stroke Number of cylinders: 1 Cylinder Arrangement: 25° inclined Bore x stroke: 68 x 54 mm Displacement: 196 cm3 Cooling: Forced air Compression ratio: 8.5 : 1 Net power: 4.1 kW (5.5 HP) / 3 600 rpm Continuous rated power 3000 rpm: 3.3 kW (4.4 HP) Continuous rated power 3600 rpm: 3.7 kW (5.0 HP) /...
