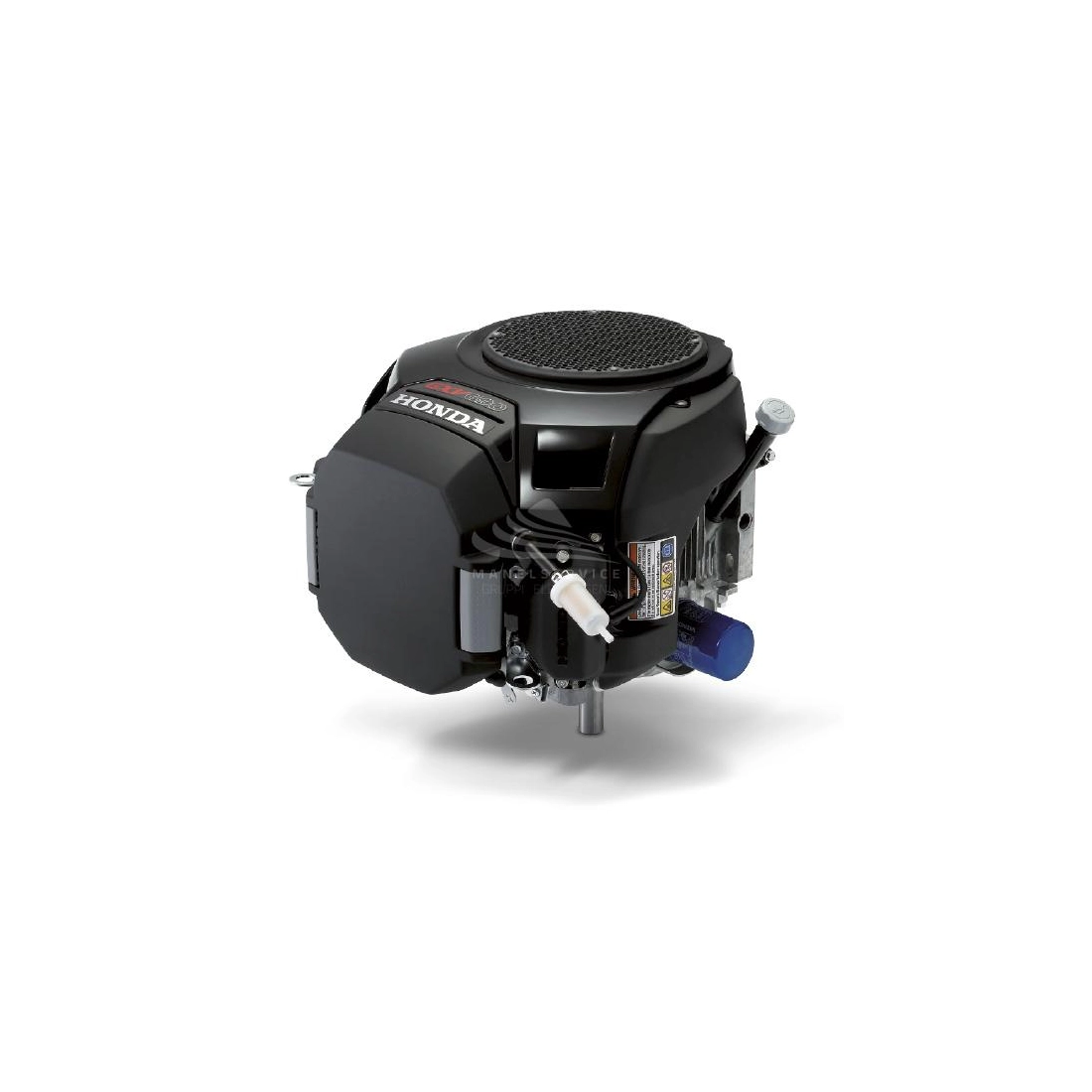

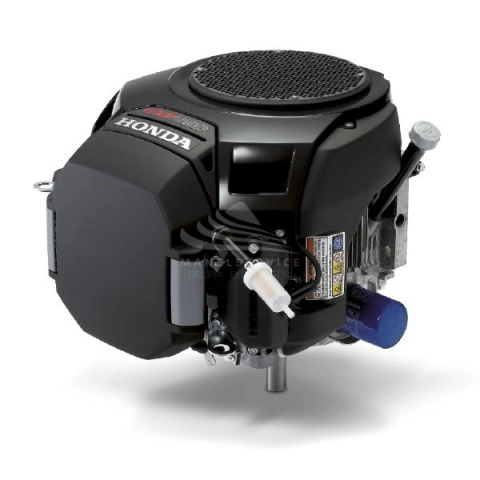

HONDA GXV690R QYF4 Engine

HONDA GXV690
search
  • HONDA GXV690
  • HONDA GXV690
HONDA
GXV690R QYF4 /
New product

OUT OF PRODUCTION

Net power (kW): 16.5
Net power (Hp): 22.1
Fuel: Petrol
Starter system: Electric
Round per minute (rpm): 3600
Displacement (cm3): 688
Lenght (mm): 449
Width (mm): 420
Height (mm): 492
Dry weight (Kg): 46.7
Fuel tank capacity (Lt.): 2.2
Compression ratio: 9.3 : 1

Technical features
Fuel
Gasoline
Engine
OHV vertical shaft, 4 stroke, cast iron cylinder
Ignition
Digital CDI with variable ignition advance
Starting system
Electric
Engine capacity (cm³)
688
Number cylinders
2
Cylinders' position
V to 90°
Oil capacity (L)
2.2
Cooling
Forced air
Bore x stroke (mm)
2 / 78 x 72
Compression ratio
9.3 : 1
Net power (kW)
16.5
Nominal power continuous

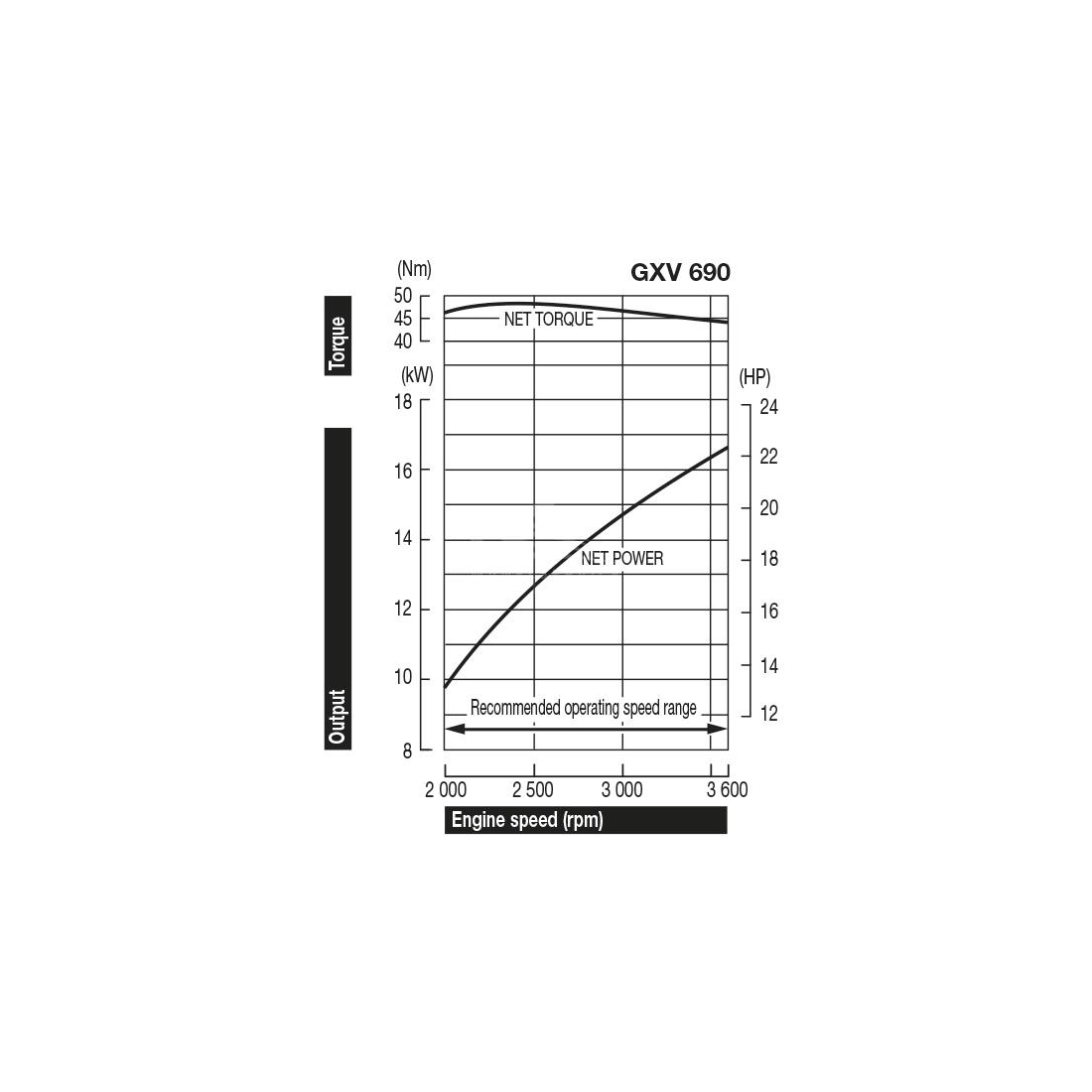

11.5 KW (15.4 HP) / 3000 rpm - 13.0 KW (17.4 HP) / 3600 rpm
Maximum torque
48.3 Nm / 4.93 kgfm / 2500 rpm
Lubrication
Forced
Carburetor
Double body, solenoid fuel supply interruption
Consumption (L/h)
5.6
Length (mm)
449
Width (mm)
420
Height (mm)
492
Dry weight (Kg)
46.7
Engine manufacturer
Honda
Details
