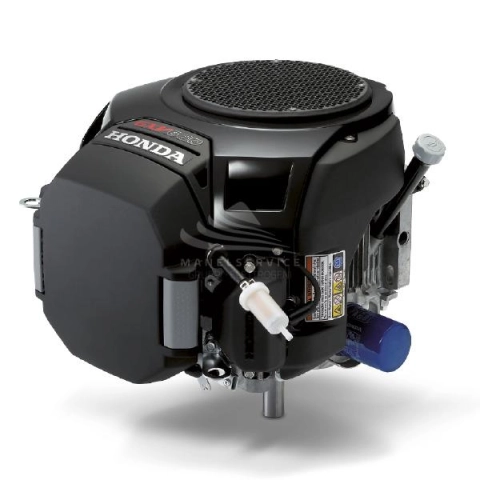

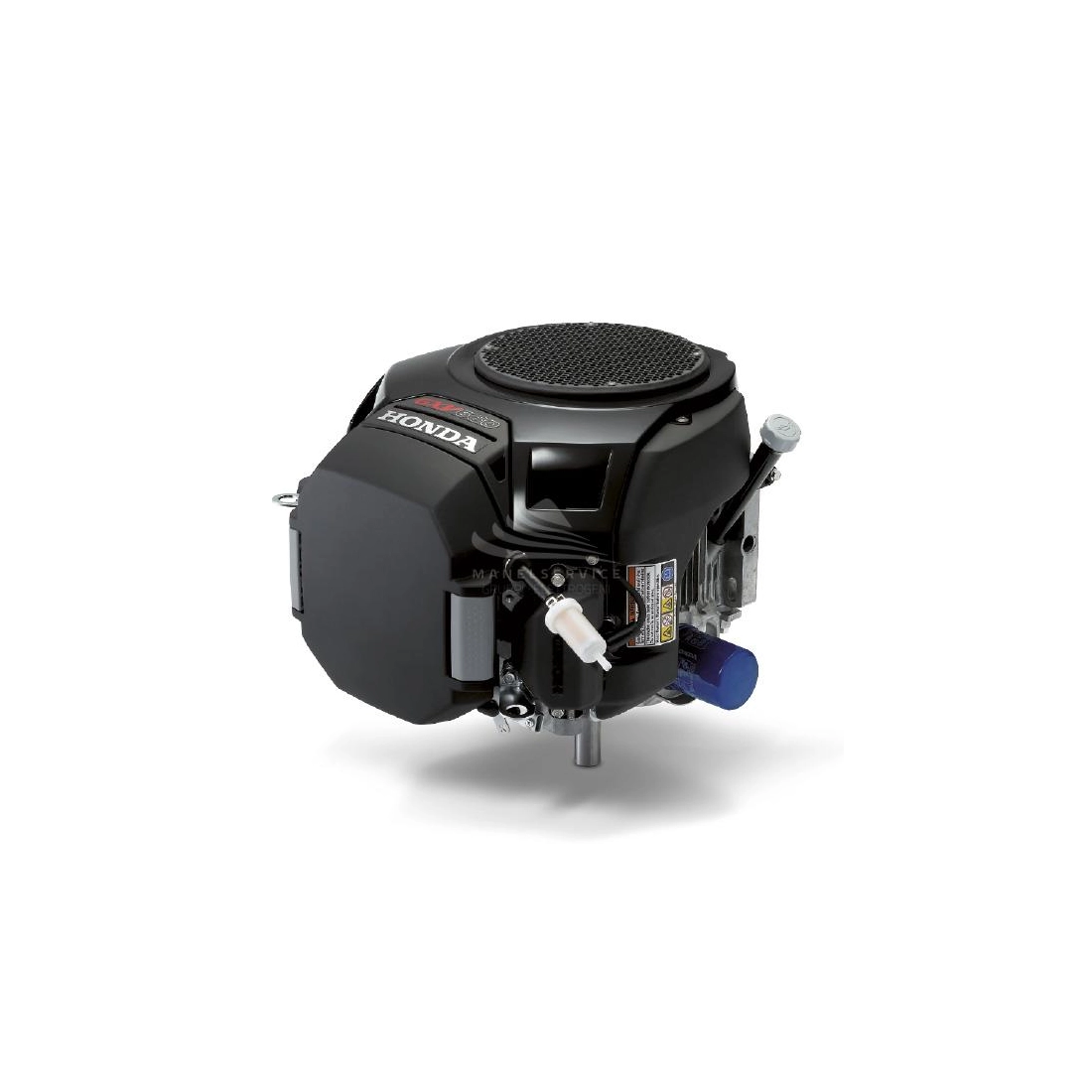

HONDA GXV660RH QYF4 Engine

OUT OF PRODUCTION

Net power (kW): 16
Net power (Hp): 21.5
Fuel: Petrol
Starter system: Electric
Round per minute (rpm): 3600
Displacement (cm3): 688
Lenght (mm): 449
Width (mm): 420
Height (mm): 492
Dry weight (Kg): 46.7
Fuel tank capacity (Lt.): 2.2
Compression ratio: 9.3 : 1

Payment methods:

Product: HONDA GXV660RH QYF4 Engine

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: HONDA GXV660RH QYF4 Engine

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: HONDA GXV660RH QYF4 Engine

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference GXV660RH QYF4 /

Data sheet

Fuel: Gasoline
Engine: OHV vertical shaft, 4 stroke, cast iron cylinder
Ignition: Digital CDI with variable ignition advance
Starting system: Electric
Engine capacity (cm³): 688
Number cylinders: 2
Cylinders' position: V to 90°
Oil capacity (L): 2.2
Cooling: Forced air
Bore x stroke (mm): 2 / 78 x 72
Compression ratio: 9.3 : 1
Net power (kW): 16.0

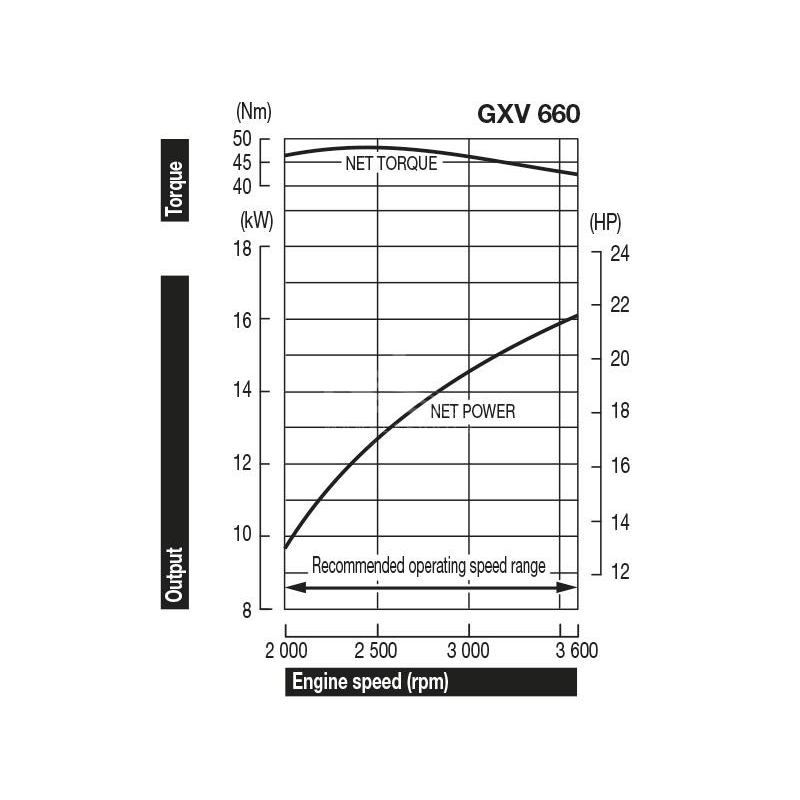

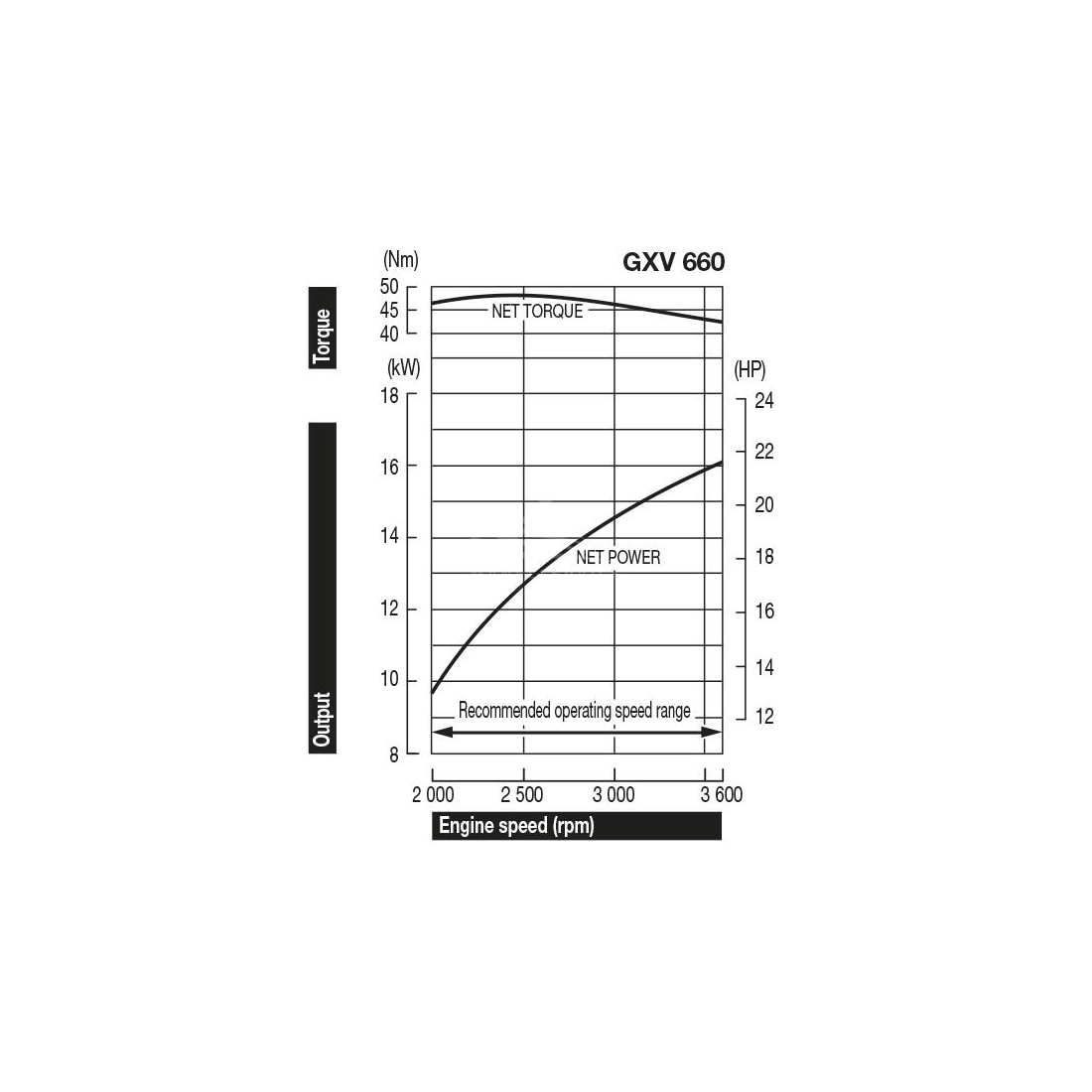

Nominal power continuous: 11.0 KW (14.8 HP) / 3000 rpm - 12.5 KW (16.8 HP) / 3600 rpm
Maximum torque: 48.3 Nm / 4.93 kgfm / 2500 rpm
Lubrication: Forced
Carburetor: Double body, solenoid fuel supply interruption
Consumption (L/h): 5.3
Length (mm): 449
Width (mm): 420
Height (mm): 492
Dry weight (Kg): 46.7
Engine manufacturer: Honda
