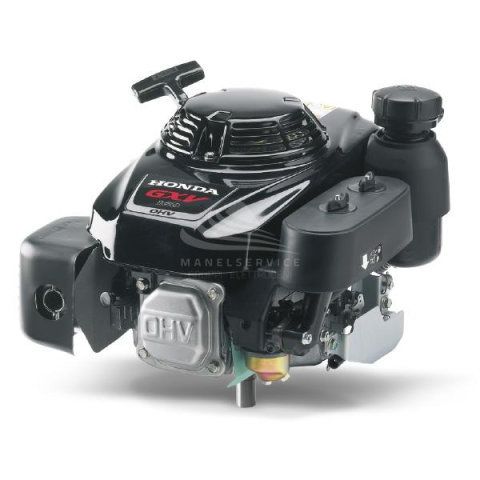

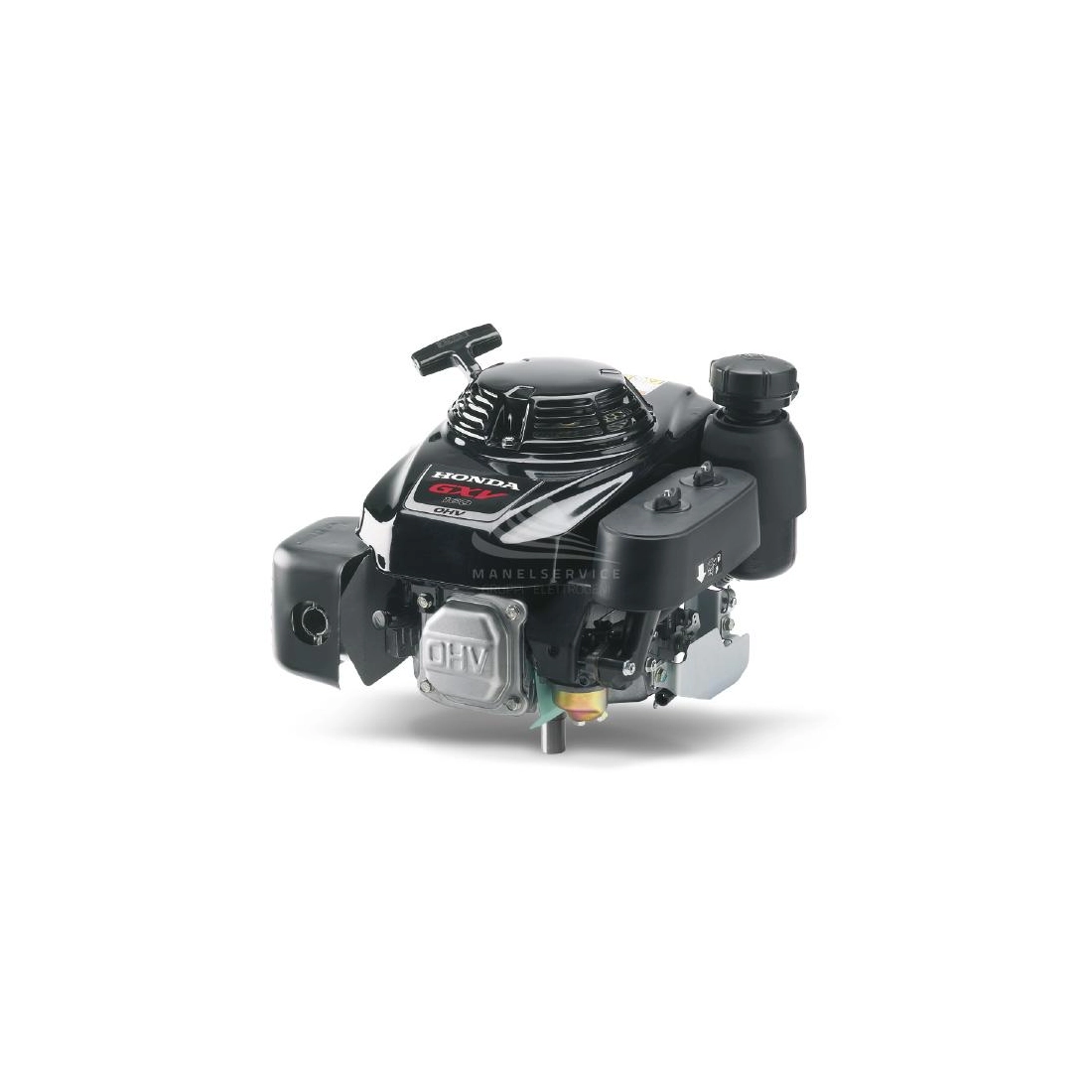

HONDA GXV160H2 A1-N5 Engine

Reference GXV160H2 A1-N5 /

OUT OF PRODUCTION

Net power (kW): 3.2
Net power (Hp): 4.3
Fuel: Petrol
Starter system: Manual
Round per minute (rpm): 3600
Displacement (cm3): 163
Lenght (mm): 420
Width (mm): 365
Height (mm): 357
Dry weight (Kg): 15.5
Fuel tank capacity (Lt.): 1.4
Compression ratio: 8 : 1

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference GXV160H2 A1-N5 /

Data sheet

Fuel: Gasoline
Engine: OHV vertical shaft, 4 stroke, cast iron cylinder
Ignition: A transistor contactless
Starting system: Manual
Engine capacity (cm³): 163
Number cylinders: 1
Oil capacity (L): 0.65
Cooling: Forced air
Bore x stroke (mm): 68 x 45
Compression ratio: 8.0 : 1
Net power (kW): 3.2
Nominal power continuous: 2.0 KW (2.7 HP) / 3000 rpm
Maximum torque: 9.6 Nm / 0.98 kgfm / 2500 rpm
Fuel tank capacity (L): 1.8
Consumption (L/h): 1.1
Running time (h): 1.63
Length (mm): 420
Width (mm): 365
Height (mm): 357
Dry weight (Kg): 15.5
Engine manufacturer: Honda

Specific References

Condition New

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
