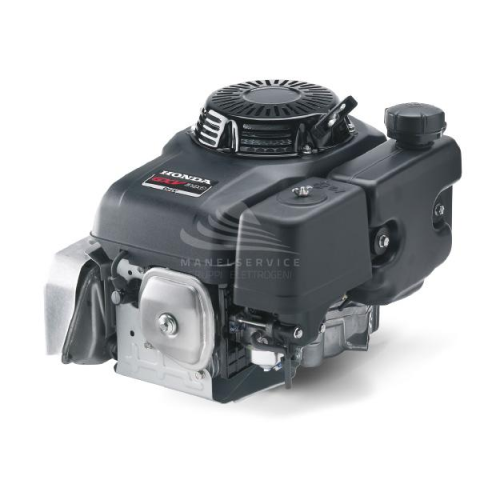

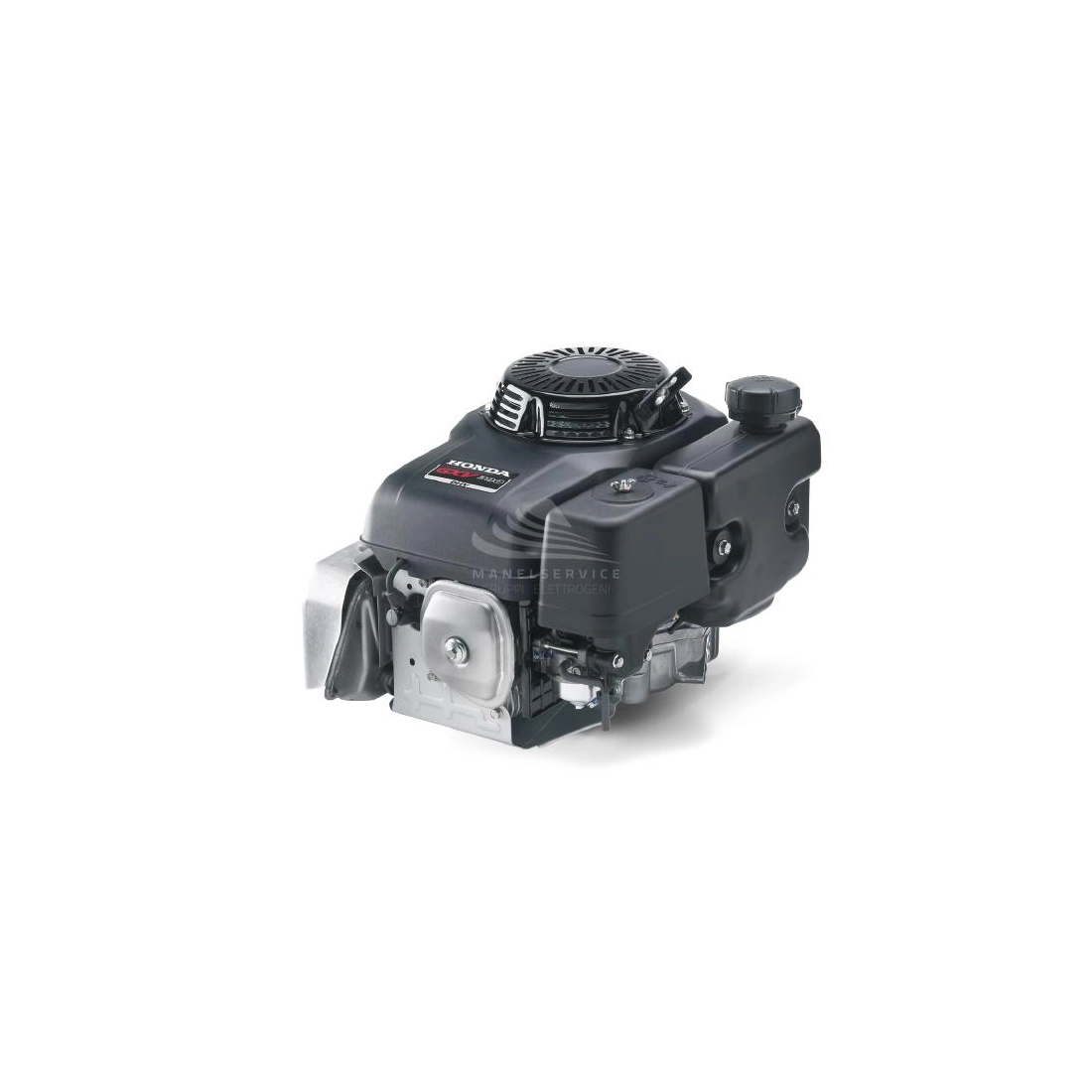

HONDA GXV390T1 DNE5 Engine

HONDA GXV390
HONDA GXV390
HONDA GXV390
HONDA GXV390
GXV390T1 DNE5


Net power (kW): 7.6
Net power (Hp): 10.2
Fuel: Petrol
Starter system: Manual
Round per minute (rpm): 3600
Displacement (cm3): 389
Lenght (mm): 430
Width (mm): 385
Height (mm): 410
Dry weight (Kg): 33
Fuel tank capacity (Lt.): 2.1
Compression ratio: 7.7 : 1

Download Scheda tecnica GXV390 Download Technical data GXV390

Height (mm)
410
Length (mm)
430
Starting system
Manual
Width (mm)
385
Engine manufacturer
Honda
Engine
OHV vertical shaft, 4 stroke, cast iron cylinder
Cooling
Forced air
Compression ratio
7.7 : 1
Fuel
Gasoline
Ignition
A transistor contactless
Engine capacity (cm³)
389
Number cylinders
1
Oil capacity (L)
1.1
Bore x stroke (mm)
88 x 64
Net power (kW)
7.6
Nominal power continuous
5.2 KW (7.0 HP) / 3000 rpm

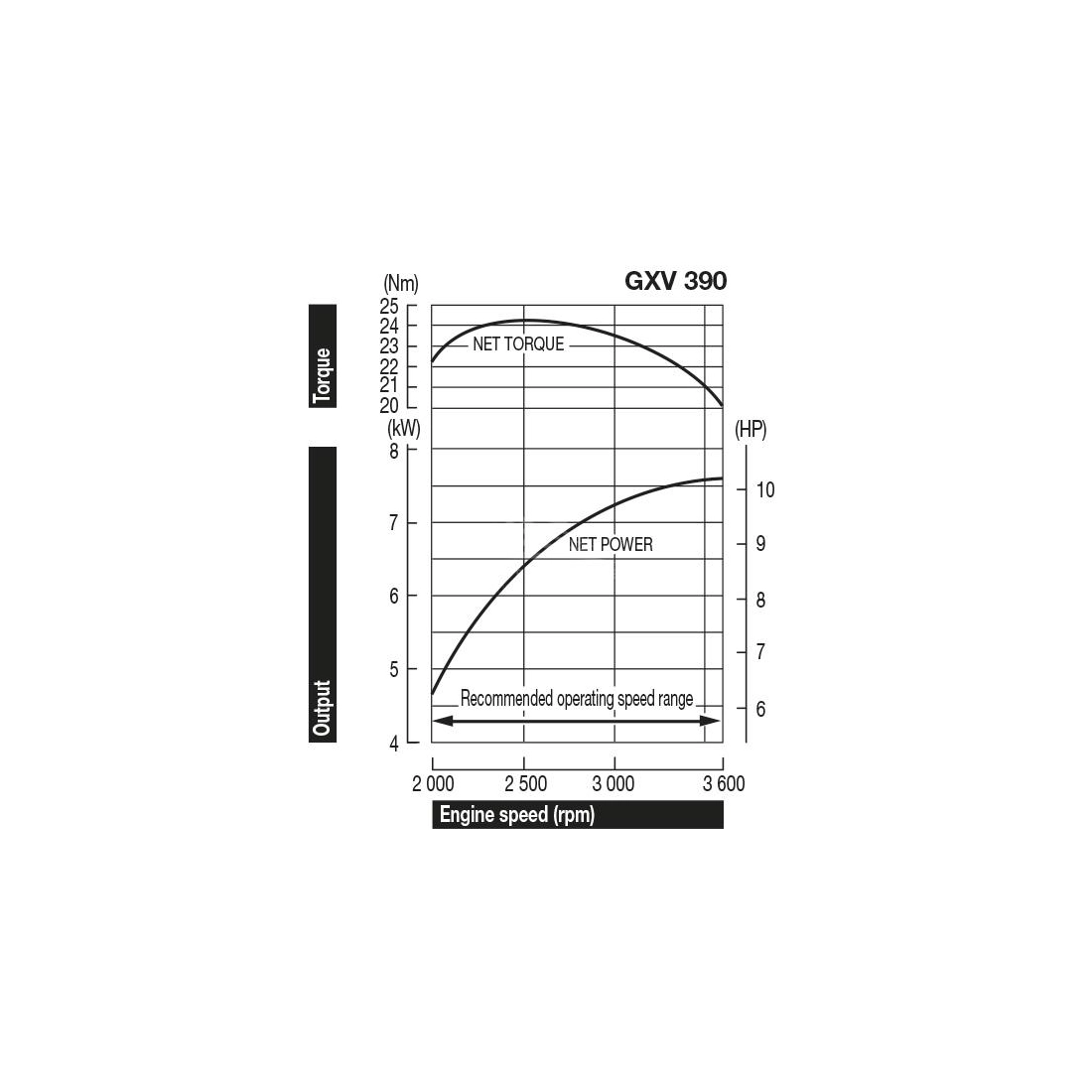

Maximum torque
24.2 Nm / 2.47 kgfm / 2500 rpm
Fuel tank capacity (L)
2.1
Consumption (L/h)
2.5
Running time (h)
0.84
Dry weight (Kg)
33
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
