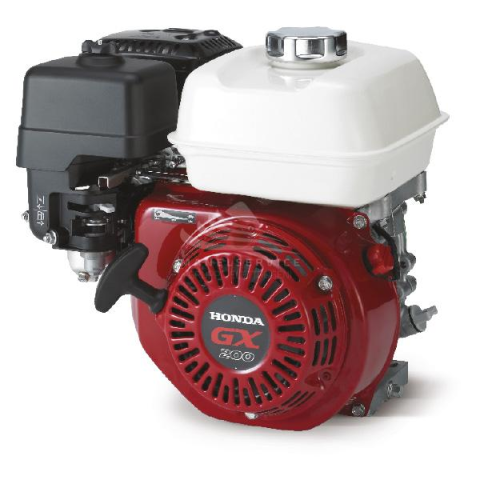

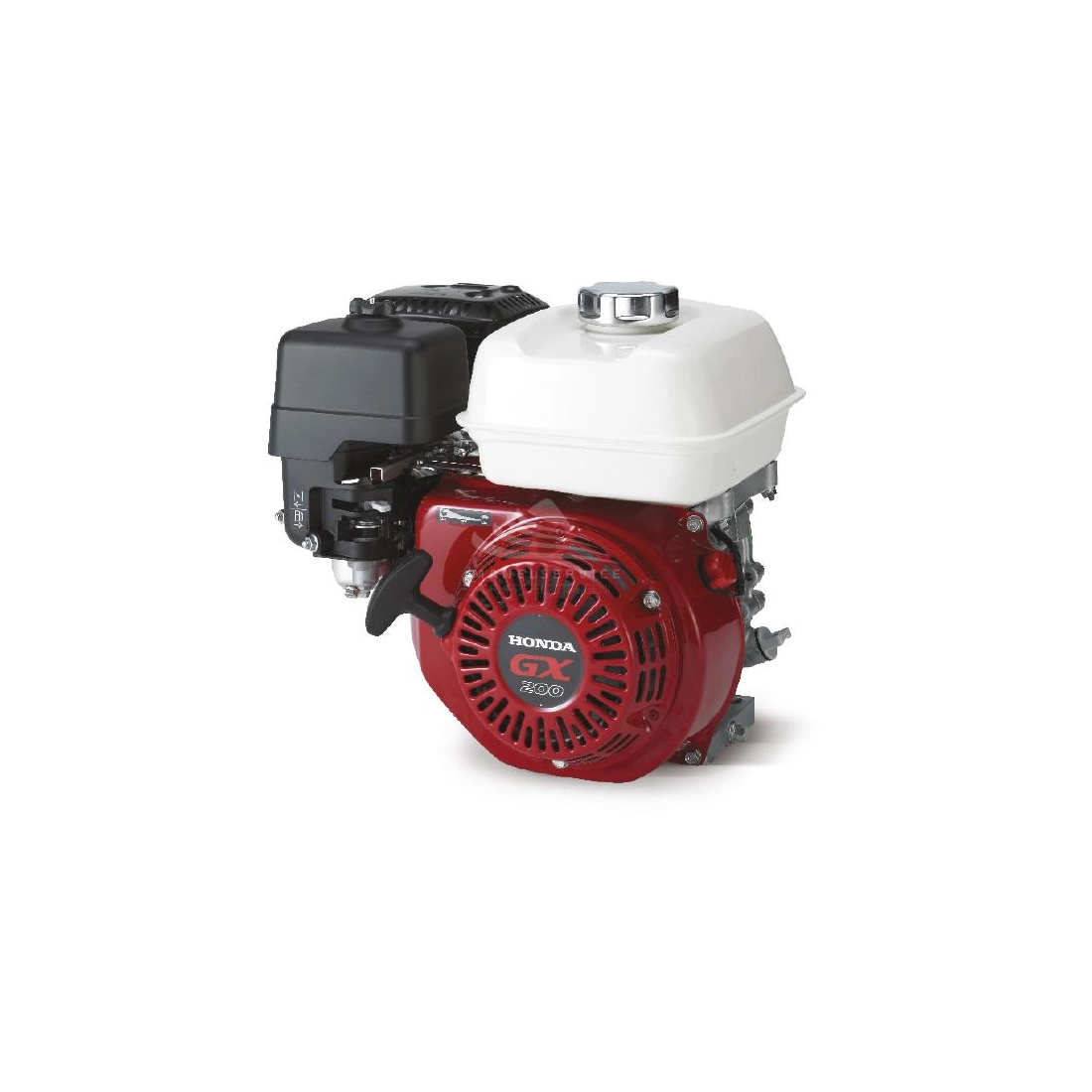

HONDA GX200UH2 QX4 Engine
      HONDA GX200UH2 QX4 Engine
      HONDA GX200UH2 QX4 Engine

      HONDA GX200UH2 QX4 Engine

      GX200UH2 QX4

      Net power (kW): 4.3
      Net power (Hp): 5.8
      Fuel: Petrol
      Starter system: Recoil starter
      Round per minute (rpm): 3600
      Displacement (cm3): 196
      Lenght (mm): 321
      Width: 376
      Height (mm): 346
      Dry weight (Kg): 16.1
      Fuel tank capacity (Lt.): 3.1

      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      HONDA
      GX200UH2 QX4

      Data sheet

      Fuel
      Gasoline
      Engine
      OHC ad albero orizzontale, 4 tempi, cilindro in ghisa
      Ignition
      A transistor contactless
      Starting system
      Manual
      Engine capacity (cm³)
      196
      Number cylinders
      1
      Cylinders' position
      Inclined to 25°
      Oil capacity (L)
      0.6
      Cooling
      Forced air
      Bore x stroke (mm)
      68 x 54
      Compression ratio
      8.5 : 1

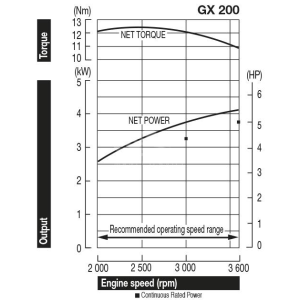

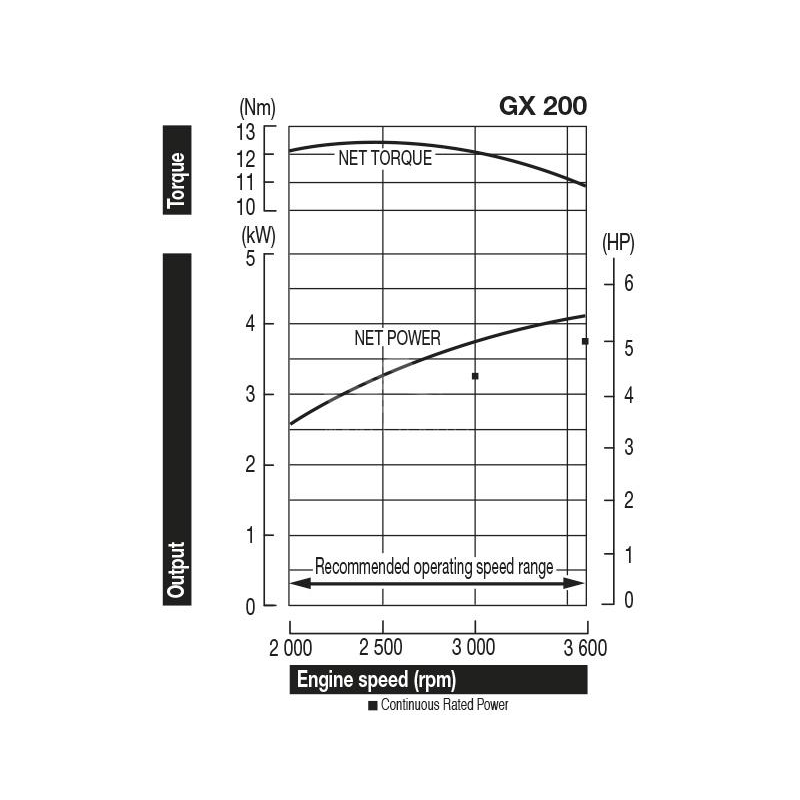

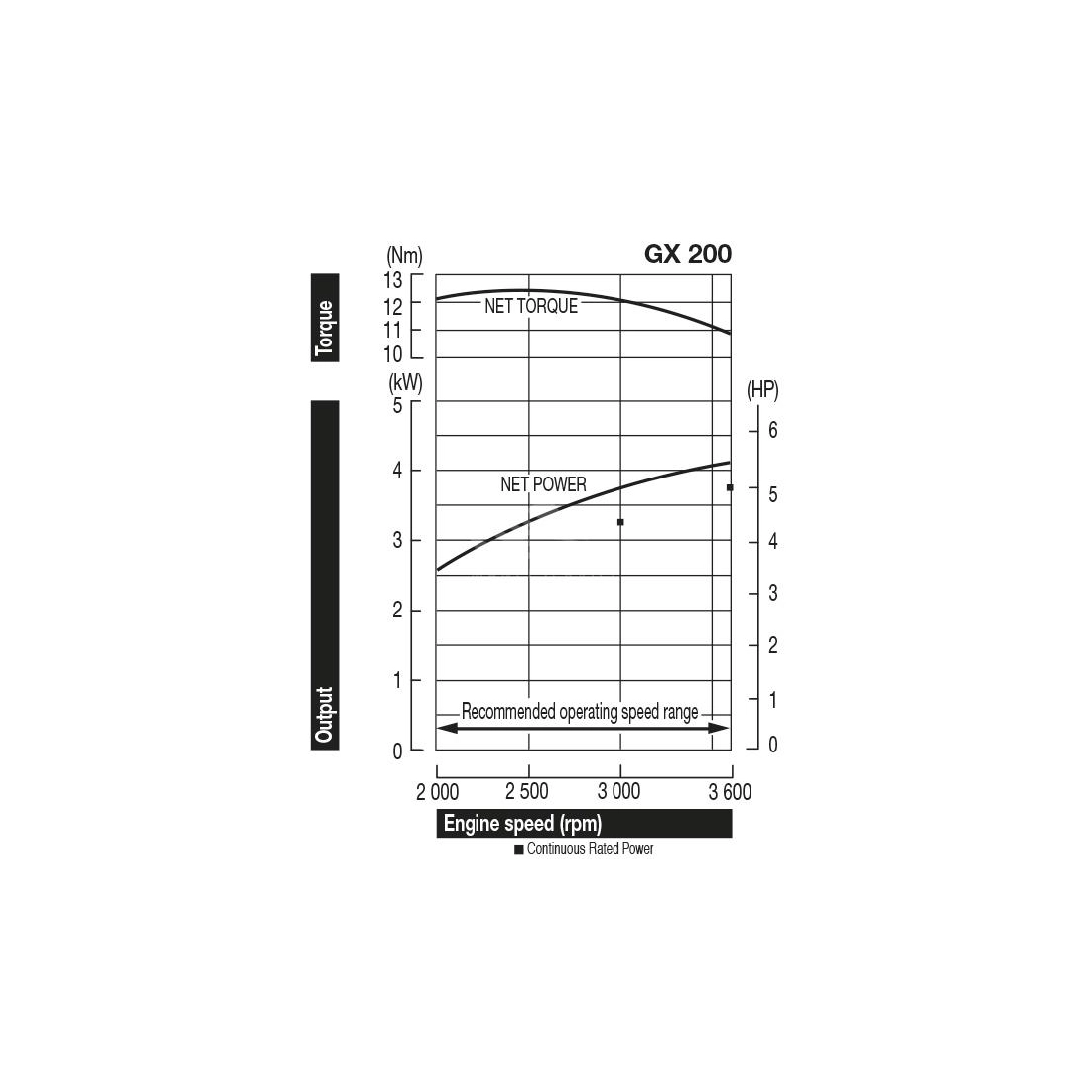

      Net power (kW)
      4.1
      Nominal power continuous
      3.3 KW (4.4 HP) / 3000 rpm - 3.7 KW (5.0 HP) / 3600 rpm
      Maximum torque
      12.4 Nm / 1.26 kgfm / 2500 rpm
      Fuel tank capacity (L)
      3.1
      Consumption (L/h)
      1.7
      Running time (h)
      1.82
      Length (mm)
      321
      Width (mm)
      376
      Height (mm)
      346
      Dry weight (Kg)
      16.1
      Engine manufacturer
      Honda

      Specific References

      New
      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
