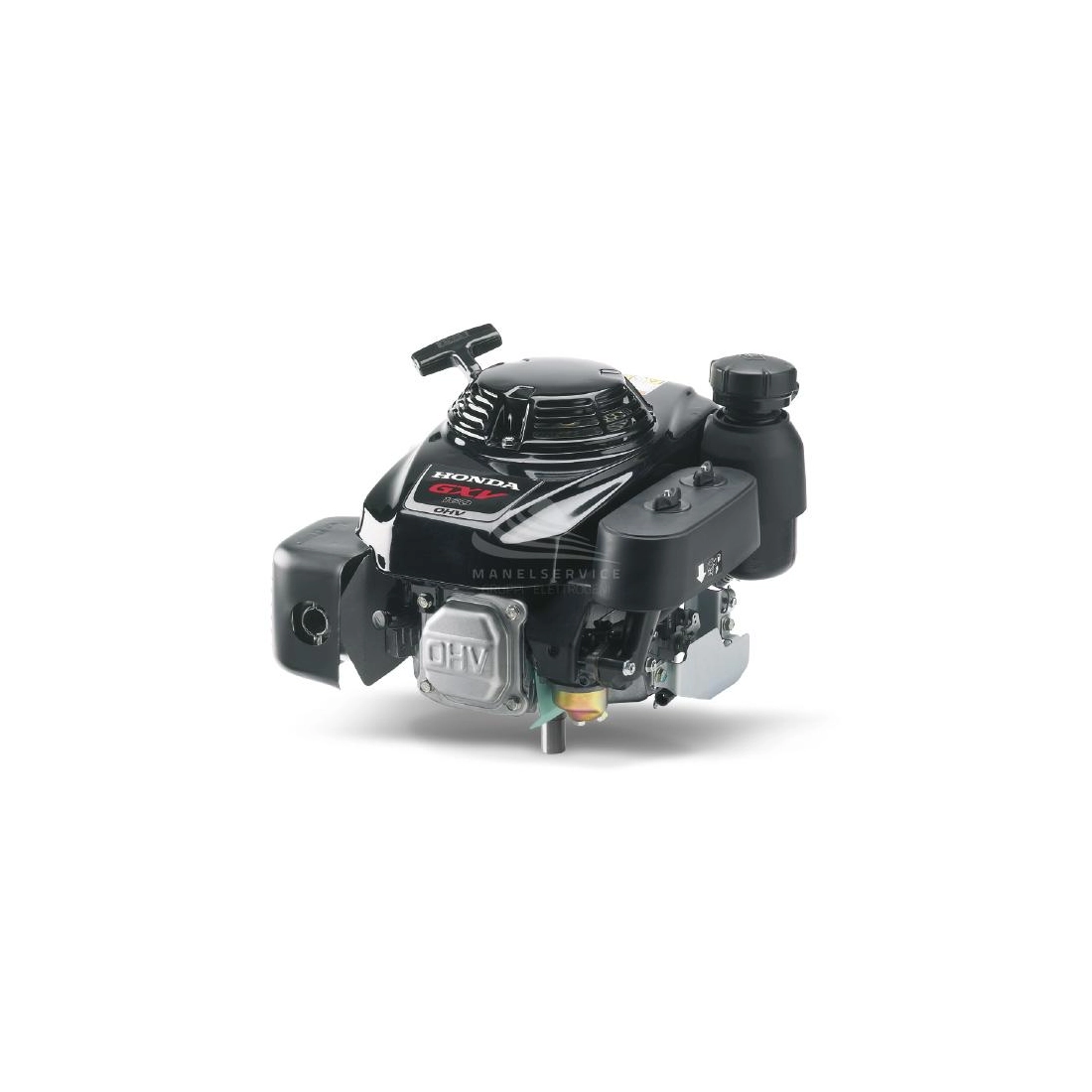

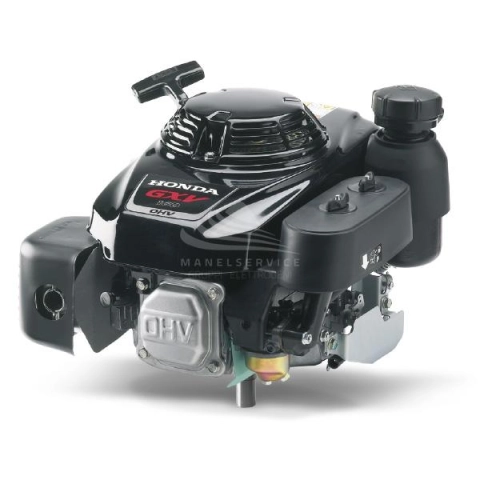

HONDA GXV160UH2 N1F1 Engine

Name: HONDA GXV160UH2 N1F1 Engine
Brand: HONDA
SKU: GXV160UH2 N1F1
Price: 507.52 EUR
Availability: InStock

Reference GXV160UH2 N1F1

Net power (kW): 3.2
Net power (Hp): 4.3
Fuel: Petrol
Starter system: Manual
Round per minute (rpm): 3600
Displacement (cm3): 163
Lenght (mm): 420
Width (mm): 365
Height (mm): 357
Dry weight (Kg): 15.5
Fuel tank capacity (Lt.): 1.4
Compression ratio: 8 : 1

List price

727.91 € tax incl.

596.65 € tax excl.

Discounted Price

507.52 € tax incl.

416.00 € tax excl.

Shipping from 18.30 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference GXV160UH2 N1F1

Data sheet

Fuel: Gasoline
Engine: OHV vertical shaft, 4 stroke, cast iron cylinder
Ignition: A transistor contactless
Starting system: Manuale
Engine capacity (cm³): 163
Number cylinders: 1
Oil capacity (L): 0.65
Cooling: Forced air
Bore x stroke (mm): 68 x 45
Net power (kW): 3.2
Nominal power continuous: 2.0 KW (2.7 HP) / 3000 rpm
Maximum torque: 9.6 Nm / 0.98 kgfm / 2500 rpm
Fuel tank capacity (L): 1.8
Consumption (L/h): 1.1
Running time (h): 1.63
Length (mm): 420
Width (mm): 365
Height (mm): 357
Dry weight (Kg): 15.5
Compression ratio: 8.0 : 1
Engine manufacturer: Honda

Specific References

Condition New

HONDA GXV160UH2 N1F1

Il motore GXV160 è raccomandato per una vasta gamma di macchine professionali quali tosaerba, macchine da cantiere, ed altre applicazioni industriali.

Caratteristiche dei motori:
- La configurazione OHV garantisce una combustione molto efficiente.
- Un rapporto potenza - cilindrata elevato.
- Avviamento facile e leggero, anche grazie ad un'efficiente sistema di decompressione ed un'impugnatura dell'avviatore ergonomica.
- Materiali impiegati di alta qualità, progettati e costruiti per durare molto a lungo.
- I motori rispettano tutte le più severe normative esistenti in Europa.
- Consumi di combustibile molto contenuti.
- Ridotte vibrazioni e rumore.

Le immagini sono puramente indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
