      816119

      DISCONTINUED PRODUCT

      Phase: Three phase
      Frequency: 50/60 Hz
      Voltage: 400 V
      Type of welding: TIG/MMA
      No-load voltage: 102 V
      Regulation current: 5 - 250 A
      Current max: 230 A
      Diameter electrodes: 1.6 - 5 mm
      Length: 510 mm
      Width: 190 mm
      Height: 53.5 mm
      Weight: 25 Kg

      Custom Quote
      Product: TELWIN SUPERIOR TIG 252 AC/DC HF/LIFT VRD AQUA

      PERSONAL DATA


      Ask a question
      Product: TELWIN SUPERIOR TIG 252 AC/DC HF/LIFT VRD AQUA
      Offer on letterhead
      Product: TELWIN SUPERIOR TIG 252 AC/DC HF/LIFT VRD AQUA
      TELWIN
      816119

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      400
      Efficiency (%)
      85
      Protection degree
      IP23
      No-load voltage (V)
      102
      Regulation current (A)
      5 - 250
      Diameter electrodes (mm)
      1.6 - 5
      Type of welding
      MMA / MIG
      Current max (A)
      230
      Length (mm)
      510
      Width (mm)
      190
      Height (mm)
      535
      Voltage regulator
      Inverter
      Weight (Kg)
      25

      Specific References

      EAN13
      8004897918181
      New

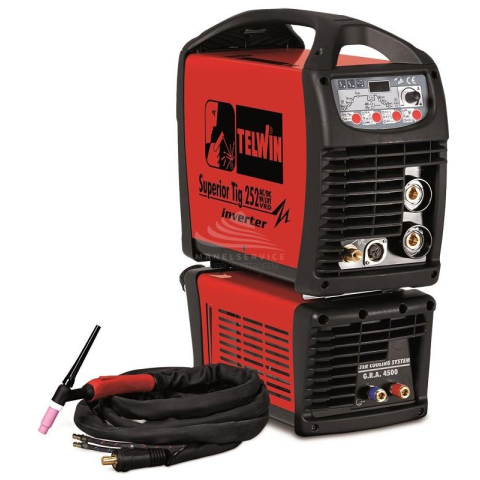

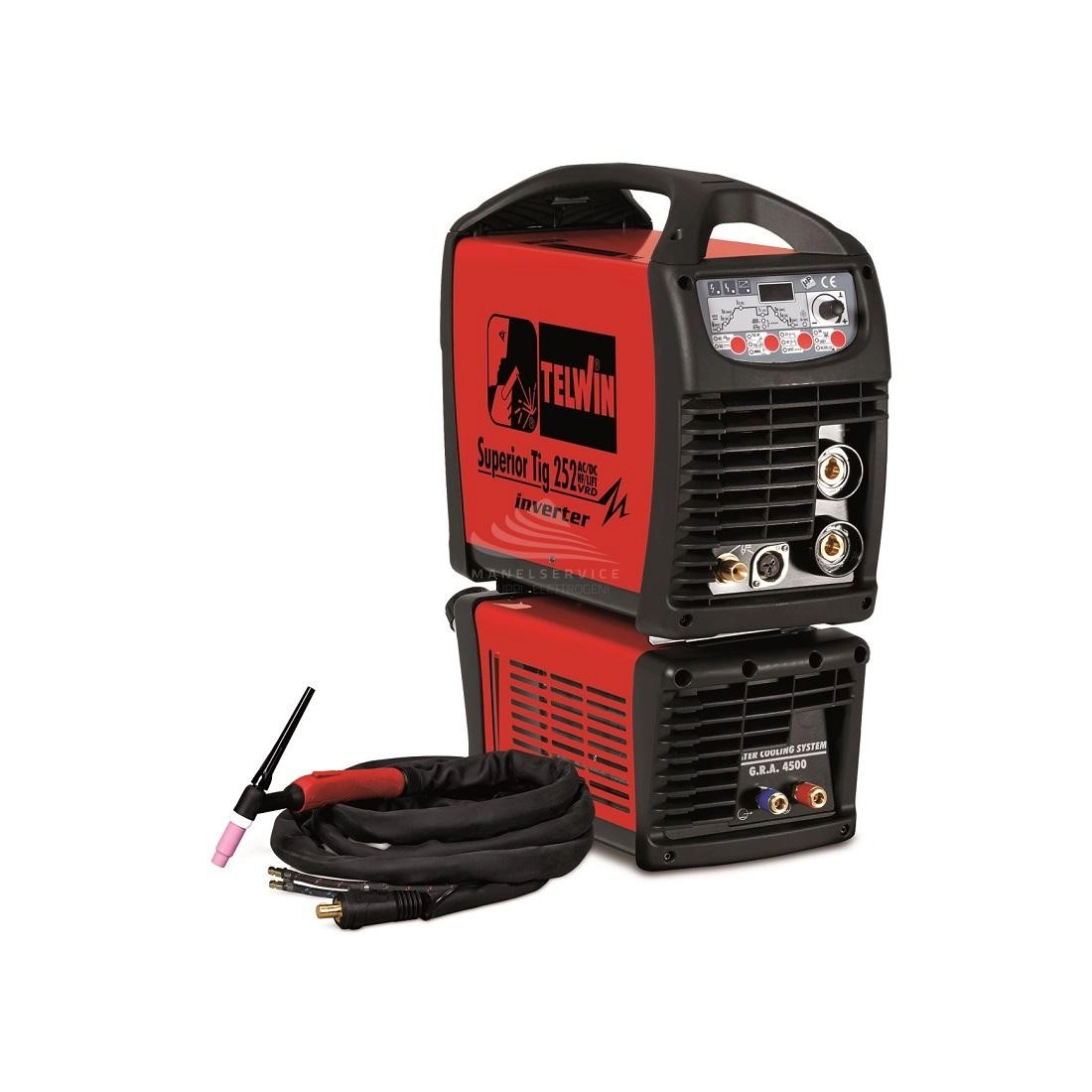

      Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current and alternating current (AC/DC).
      Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
      Features:
      - pulse and EASY pulse operation
      - adjustable pre-heatingfor simpler striking in AC
      - TIG regulations: bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency
      - THINSPOT function for quick and precise tack welding
      - MMA regulations: arc force and hot start
      - anti-stick device
      - VRD device
      - remote control and G.R.A. water cooling connector
      - thermostatic, overvoltage, undervoltage, overcurrent, water cooling unit protections.
      Complete with TIG welding accessories andwater cooling unit G.R.A..

      Not binding images and technical data.
