TELWIN TECNICA 190TIG/MMA DC LIFT VRD

816220
      TELWIN TECNICA 190TIG/MMA DC LIFT VRD
      TELWIN TECNICA 190TIG/MMA DC LIFT VRD

      Phase: Single phase
      Frequency: 50/60 Hz
      Voltage: 230 V
      Type of welding: TIG/MMA
      No-load voltage: 78 V
      Regulation current: 10 - 170 A
      Current max: 160 A
      Diameter electrodes: 1.6 - 4 mm
      Length: 420 mm
      Width: 170 mm
      Height: 380 mm
      Weight: 9.4 Kg

      List price
      1,008.94 € tax incl.
      827.00 € tax excl.
      Discounted Price
      530.70 € tax incl.
      435.00 € tax excl.
      Shipping from 18.30 € to Italy buy it today.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TELWIN
      816220

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230
      Efficiency (%)
      86
      Protection degree
      IP23
      No-load voltage (V)
      78
      Regulation current (A)
      10 - 170
      Diameter electrodes (mm)
      1.6 - 4
      Type of welding
      MMA / MIG
      Current max (A)
      160
      Length (mm)
      420
      Width (mm)
      Height (mm)
      380
      Voltage regulator
      Inverter
      Weight (Kg)
      9.4

      Specific References

      EAN13
      8004897965581
      New

      TIG (LIFT striking) and MMA inverter welding machine in direct current (DC).
      Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
      The Voltage Reduction Device (VRD) is used to decrease the output voltage to a safe level when the welding machine is on but not in welding conditions. This grants the operator's safety: he can come into contact with the electrode without risks, until welding operations are resumed (for use in damp environment such as mines or shipyards, etc.).
      Features:
      - compact and light
      - display to check welding current
      - MMA regulations: arc force and hot start
      - MMA electrodes: rutile, basic, stainless steel and cast iron
      - thermostatic, overcurrent, overvoltage, undervoltage, motorgenerator (+/-15%) protections.

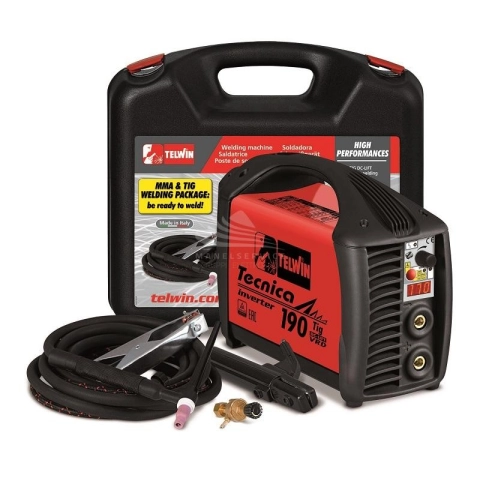

      Complete with TIG and MMA welding accessories and plastic carry case.

      Not binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
