TELWIN TECHNOLOGY TIG 185 DC 230V
852030
Out Of Production
DISCONTINUED PRODUCT
Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding: TIG/MMA
No-load voltage: 91 V
Regulation current: 5 - 160 A
Current max: 160 A
Diameter electrodes: 1.6 - 3.2 mm
Length: 375 mm
Width: 190 mm
Height: 505 mm
Weight: 12.9 Kg
Technical features
- Phase
- Single phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230
- Efficiency (%)
- 82
- Protection degree
- IP23
- No-load voltage (V)
- 91
- Regulation current (A)
- 5 - 160
- Diameter electrodes (mm)
- 1.6 - 3.2
- Type of welding
- MMA / MIG
- Current max (A)
- 160
- Length (mm)
- 375
- Width (mm)
- 190
- Height (mm)
- 505
- Voltage regulator
- Inverter
- Weight (Kg)
- 12.9
Details
TIG (high frequency HF or LIFT striking) and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:
- TIG regulations: current down slope, bi-level
- MMA regulations: arc force according to the type of electrode in use
- 2/4 strokes operation
- hot start and anti-stick devices
- remote control connector
- MMA electrodes: rutile, basic, stainless steel and cast iron
- thermostatic, overcurrent, overvoltage, undervoltage protections.
The optional TIG PULSE allows pulse welding.

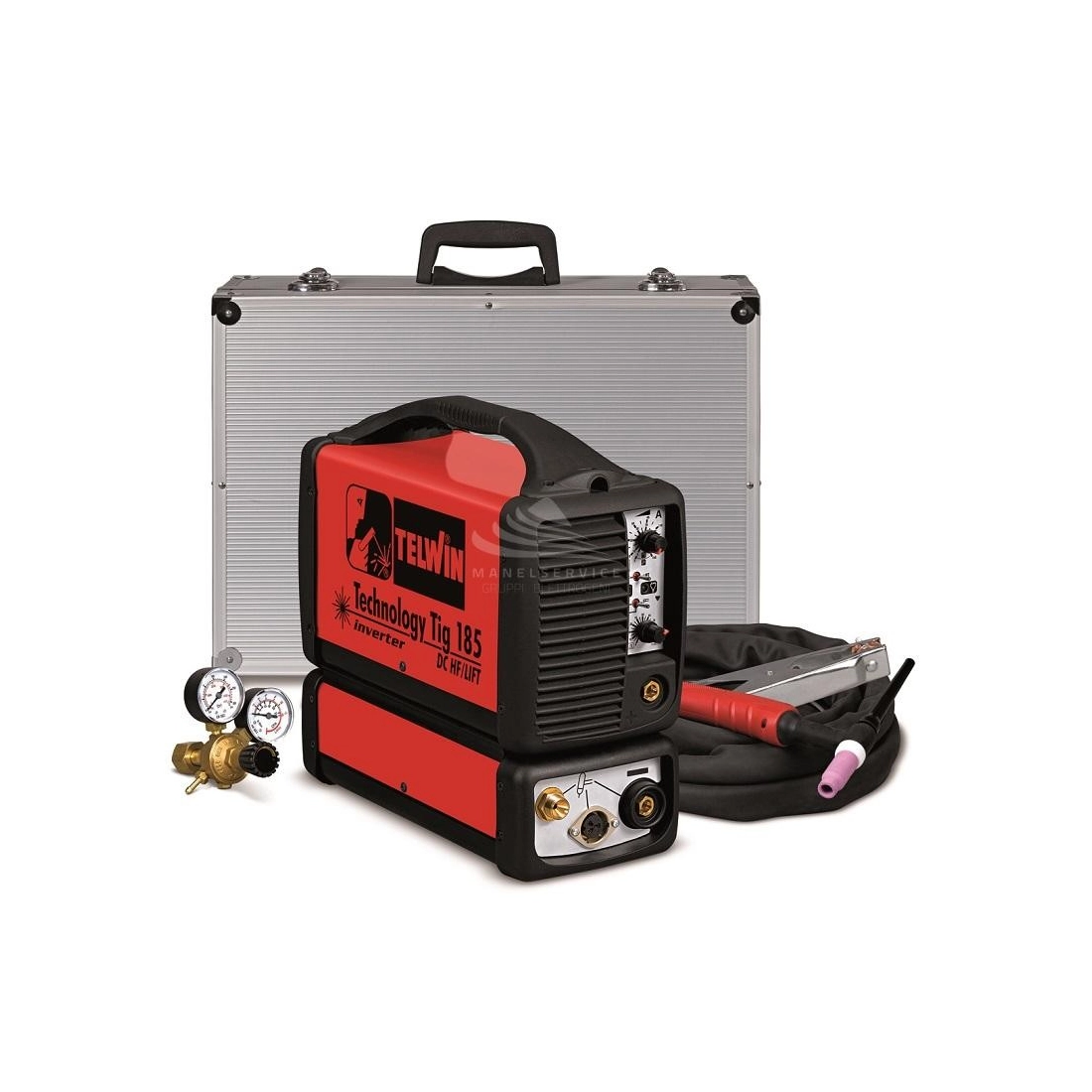

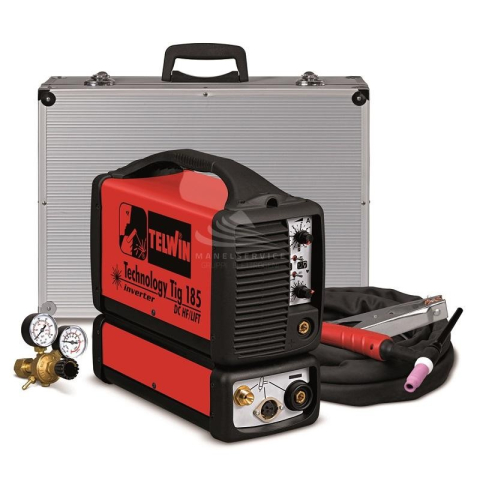

Complete with TIG welding accessories and aluminium carry case.
Not binding images and technical data.
Technical features
- Phase
- Single phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230
- Efficiency (%)
- 82
- Protection degree
- IP23
- No-load voltage (V)
- 91
- Regulation current (A)
- 5 - 160
- Diameter electrodes (mm)
- 1.6 - 3.2
- Type of welding
- MMA / MIG
- Current max (A)
- 160
- Length (mm)
- 375
- Width (mm)
- 190
- Height (mm)
- 505
- Voltage regulator
- Inverter
- Weight (Kg)
- 12.9
Details
TIG (high frequency HF or LIFT striking) and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:
- TIG regulations: current down slope, bi-level
- MMA regulations: arc force according to the type of electrode in use
- 2/4 strokes operation
- hot start and anti-stick devices
- remote control connector
- MMA electrodes: rutile, basic, stainless steel and cast iron
- thermostatic, overcurrent, overvoltage, undervoltage protections.
The optional TIG PULSE allows pulse welding.
Complete with TIG welding accessories and aluminium carry case.
Not binding images and technical data.
