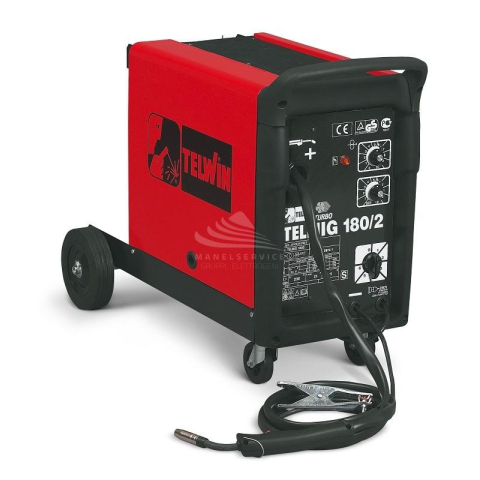

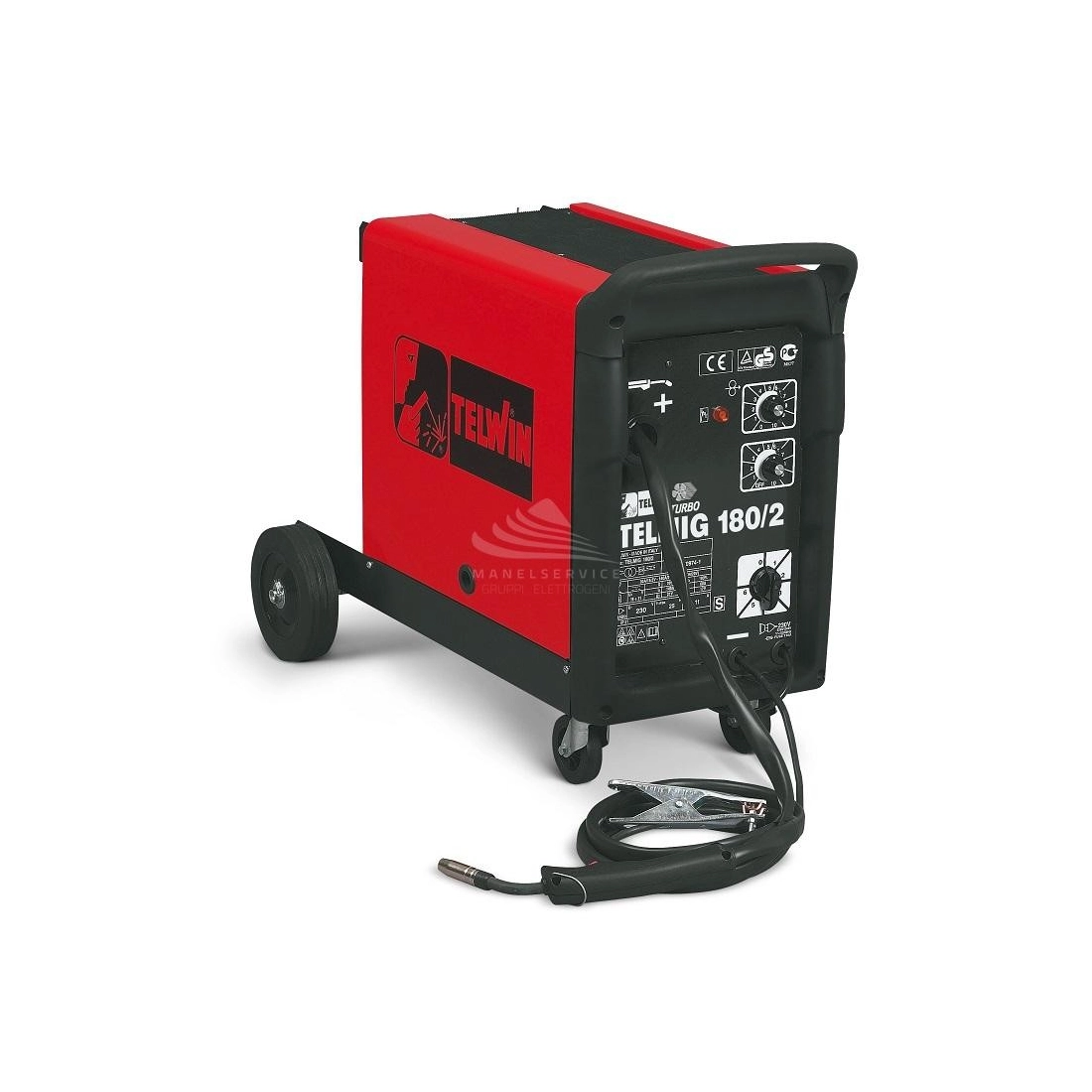

TELWIN TELMIG 180/2 TURBO 230V
821055
DISCONTINUED PRODUCT
Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding: MIG-MAG
No-load voltage: 31 V
Regulation current: 30 - 170 A
Current max: 140 A
Steel welding wire diameter: 0.6 - 0.8 mm
Inox welding wire diameter: 0.8 mm
Aluminium welding wire diameter: 0.8 - 1 mm
Length: 800 mm
Width: 450 mm
Height: 570 mm
Weight: 37 Kg
821055
Data sheet
- Phase
- Single phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230
- Protection degree
- IP21
- No-load voltage (V)
- 31
- Adjustment positions
- 6
- Regulation current (A)
- 30 - 170
- Ø steel welding wire (mm)
- 0.6 - 0.8
- Ø inox welding wire (mm)
- 0.8
- Ø aluminium welding wire (mm)
- 0.8 - 1
- Type of welding
- MIG-MAG
- Current max (A)
- 140
- Length (mm)
- 800
- Width (mm)
- 450
- Height (mm)
- 570
- Weight (Kg)
- 37
Specific References
- EAN13
- 8004897611228
MIG-MAG welding machine.
Designed for continuous and spot welding with electronic regulation of spotwelding time.
Thanks to optional kits this model allows also sheet tempering and riveting.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Complete with MIG-MAG welding accessories.
Not binding images and technical data.
