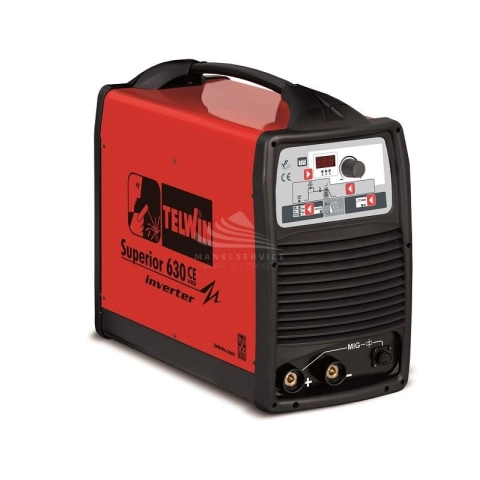

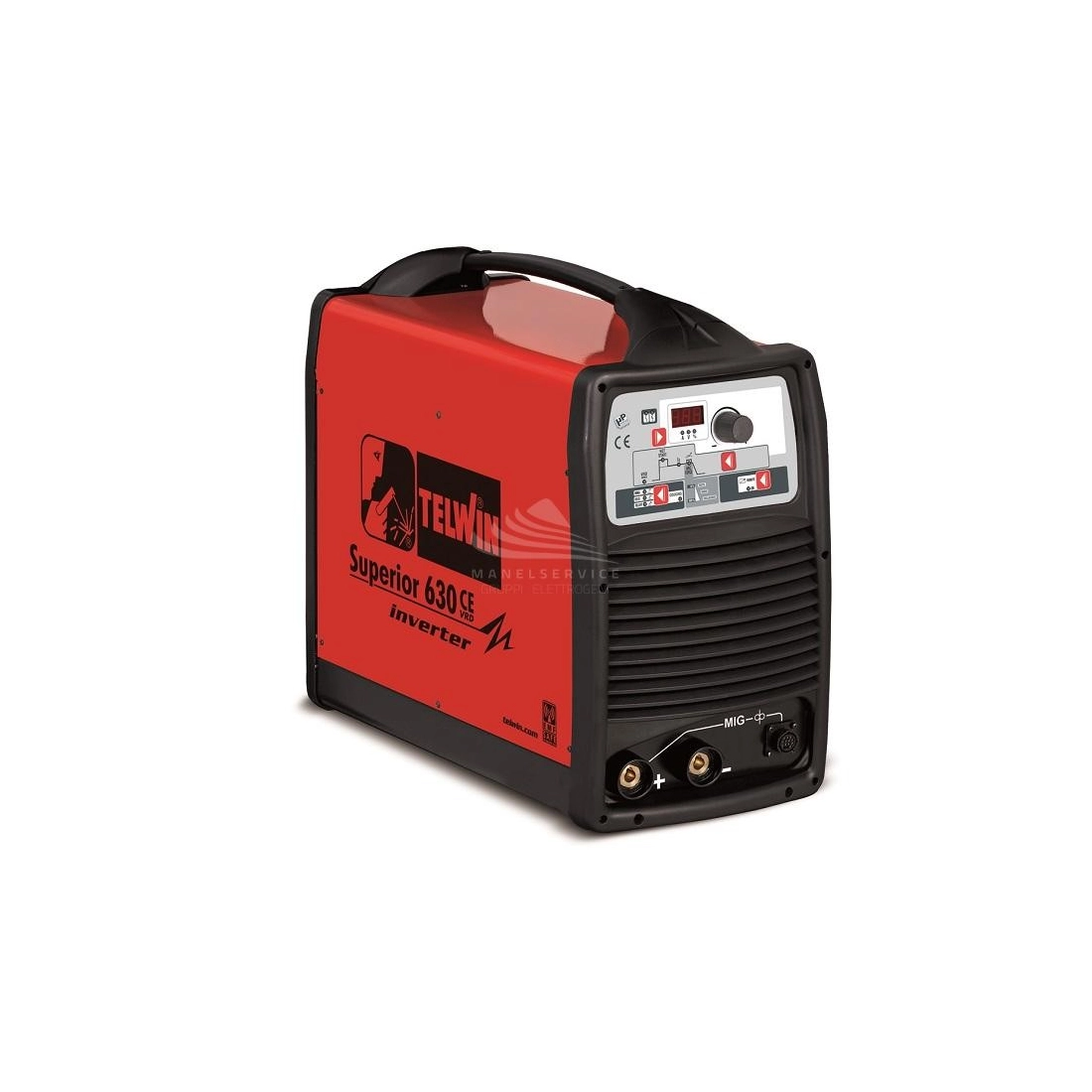

TELWIN SUPERIOR 630 CE VRD 230-400V
816032
Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230/400 V
Type of welding current: DC
Type of welding: MMA / TIG
No-load voltage: 65 / 73 V
Regulation current: 10-450 / 10-600 A
Current max: 400 / 500 A
Diameter electrodes: 1.6 - 8 mm
Length: 670 mm
Width: 310 mm
Height: 560 mm
Weight: 43 Kg
List price
tax incl.
tax excl.
Discounted Price
3,269.60 € tax incl.
2,680.00 € tax excl.
Shipping from 24.40 € to Italy buy it today. tax incl.
Calculate Shipping Cost
816032
Data sheet
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Efficiency (%)
- 86
- Protection degree
- IP23
- Maximum permissible current (A)
- 44 / 35
- No-load voltage (V)
- 65 / 73
- Regulation current (A)
- 10 - 450 / 10 - 600
- Diameter electrodes (mm)
- 1.6 - 8
- Type of welding current
- DC
- Type of welding
- MMA / MIG
- Current max (A)
- 400 / 500
- Length (mm)
- 670
- Width (mm)
- 310
- Height (mm)
- 560
- Voltage regulator
- Inverter
- Weight (Kg)
- 43
Specific References
- EAN13
- 8004897918648
New
MMA,TIG-LIFT in direct current (DC), multiprocess, inverter welding machine with microprocessor control, designed for welding cellulosic electrodes and coated electrodes such as aluminium, rutile, basic, stainless steel, cast iron with diameter up to 8 mm.
Superior 630 CE VRD has the ''gouging'' function and makes it possible MIG-MAG/FLUX welding with optional feeder.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Immediate control of the welding droplets transfer
- Regulation of arc force and hot start according to the type of electrode in use
- Anti-stick device
- VRD device
- Storage on on-board E2PROM of the last 9 alarms
- Remote control connector
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Not binding images and technical data.
