HELVI SPARC 146
      HELVI SPARC 146
      HELVI SPARC 146

      HELVI SPARC 146

      99806001

      Phase type: Single-phase
      Frequency: 50/60 Hz
      Voltage: 230 V
      Power: 2500 W
      Type of welding: MMA
      No-load voltage: 70 V
      Current regulation: 10 - 120 A
      Duty cycle at 40°: 120 A at 25% - 80 A at 50% - 60 A at 100%
      Maximum current: 120 A
      Electrode diameter: 1.6 - 3.2 mm
      Electrode type: 6013 - 7018
      Insulation: H
      Degree of protection: IP22S
      Length: 285 mm
      Width: 120 mm
      Height: 255 mm
      Weight: 4 Kg

      List price
      489.22 € tax incl.
      401.00 € tax excl.
      Discounted Price
      210.00 € tax incl.
      172.13 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: HELVI SPARC 146

      PERSONAL DATA


      Ask a question
      Product: HELVI SPARC 146
      Offer on letterhead
      Product: HELVI SPARC 146
      HELVI
      99806001

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230
      Protection degree
      IP22S
      Power (W)
      2500
      Motor insulation class
      H
      No-load voltage (V)
      70
      Regulation current (A)
      10 - 120
      Welding current (A)
      120 at 25% - 80 at 50% - 60 at 100%
      Diameter electrodes (mm)
      1.6 - 3.2
      Type of welding
      MMA
      Current max (A)
      120
      Length (mm)
      285
      Width (mm)
      120
      Height (mm)
      255
      Product type
      Welding machine
      Weight (Kg)
      4

      Specific References

      New

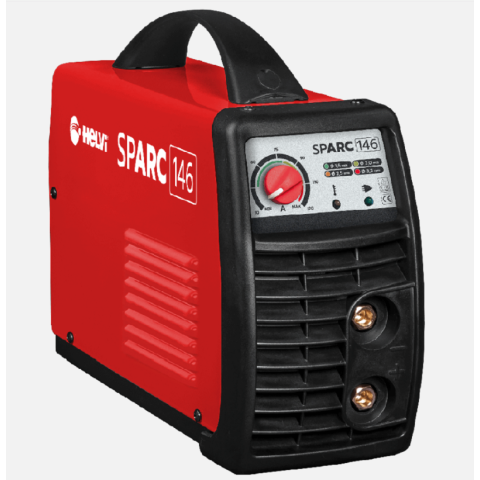

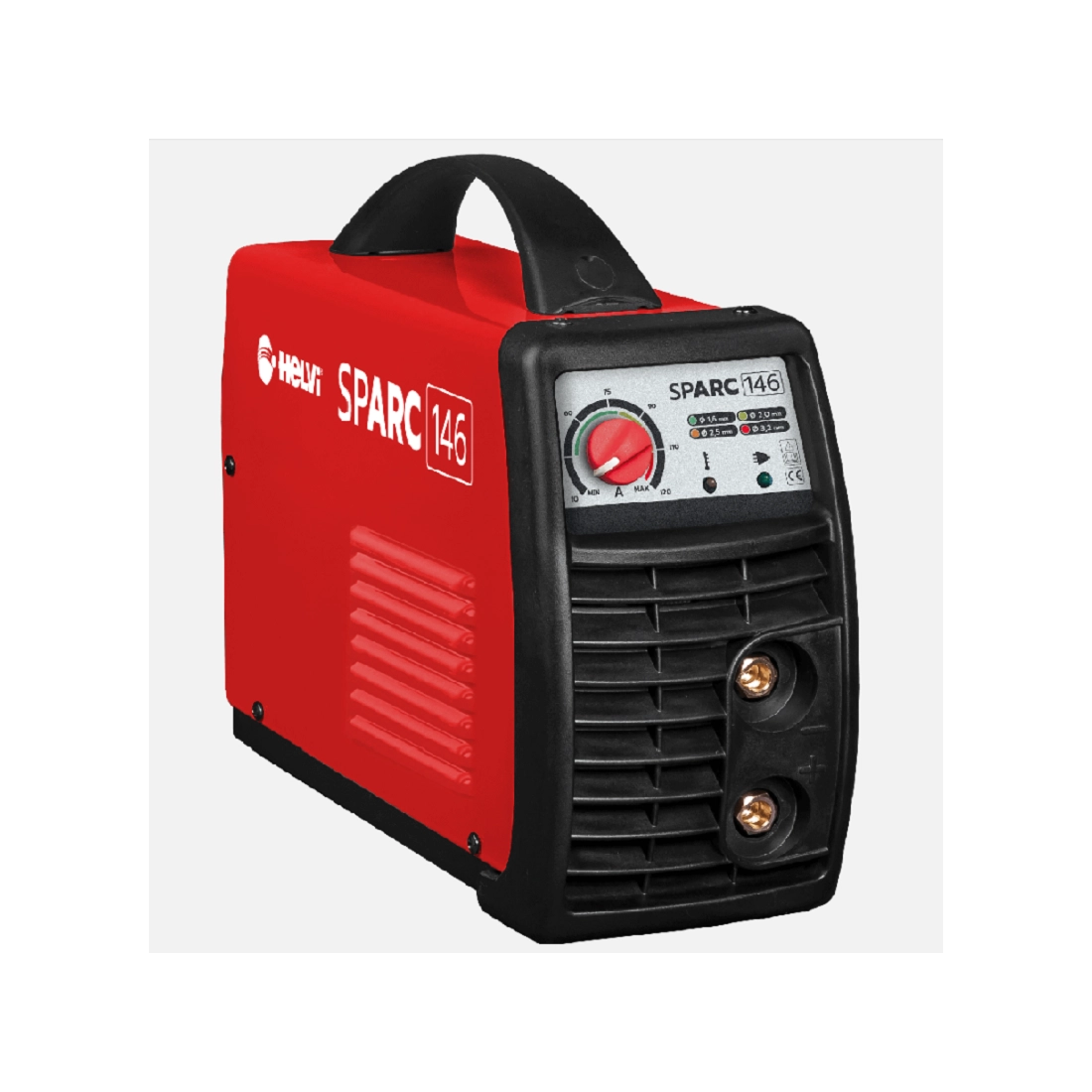

      HELVI SPARC146 Welding machine

      HELVI SPARC146 is an easy to use single-phase inverter welding machine with excellent welding characteristics with all types of commercial electrodes (rutile, basic, stainless steel). HELVI SPARC146 is equipped with overvoltage, overtemperature and electrode bonding control. HELVI SPARC146 is compact and lightweight, ideal for domestic maintenance work.
      HELVI SPARC146 is a single-phase welding machine with 230 V power supply and 50/60 Hz frequency. The HELVI SPARC146 welder has a nominal power rating of 60% of 2500 W for a maximum current of 120 A.
      The HELVI SPARC146 welding machine is designed for MMA type welding with electrodes ranging from 1,6 mm to 3,2 mm in diameter.
      The no-load voltage of the HELVI SPARC146 welding machine is 70 V and has a current regulation from 10 A up to 120 A.
      The HELVI SPARC146 welding machine has H insulation and IP22S protection.
      HELVI SPARC146 is very compact and extremely light thanks to its weight of about 4 Kg. Thanks to the comfortable handle it is also easy to transport.

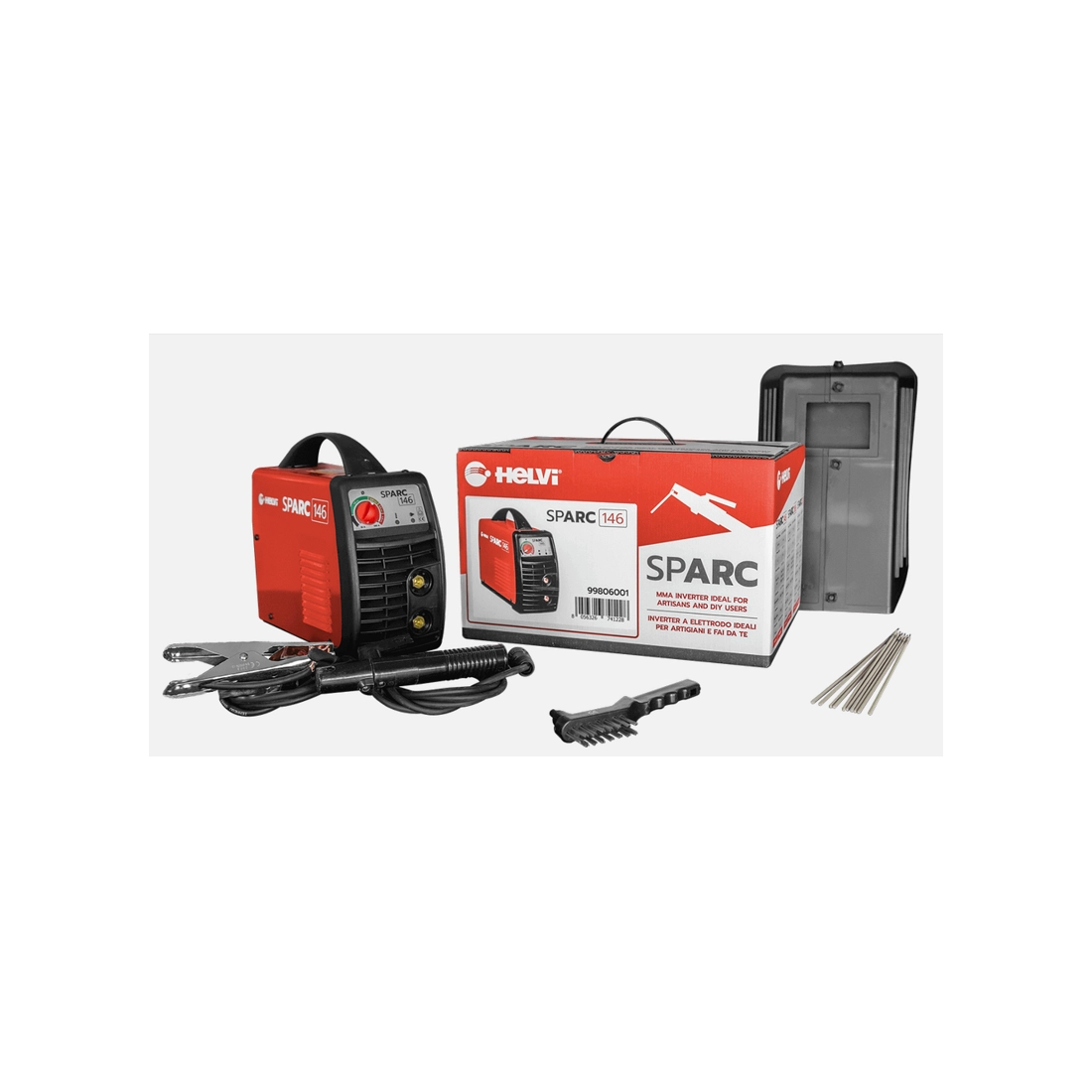

      HELVI SPARC146 is in a carton box version which includes:
      - 10 mm² neoprene ground cable for a length of 1,6 metres;
      - 10 mm² neoprene welding cable for a length of 2,4 metres;
      - Welding mask with 75x98 mm glass;
      - Glasses kit;
      - Rutile electrodes with diameter Ø 2 mm (20 pieces);
      - Hammer/brush.

      Technical characteristics of the HELVI SPARC146 welding machine:
      Phase type: Single-phase
      Frequency: 50/60 Hz
      Voltage: 230 V
      Power: 2500 W
      Type of welding: MMA
      No-load voltage: 70 V
      Current regulation: 10 - 120 A
      Duty cycle at 40°: 120 A at 25% - 80 A at 50% - 60 A at 100%
      Maximum current: 120 A
      Electrode diameter: 1.6 - 3.2 mm
      Electrode type: 6013 - 7018
      Insulation: H
      Degree of protection: IP22S
      Length: 285 mm
      Width: 120 mm
      Height: 255 mm
      Weight: 4 Kg

      If instead you are looking for another product similar to the HELVI SPARC146 welding inverter, then we recommend you look at the entire range dedicated to welding machines.

      Images and technical data are not binding.
