TELWIN SUPERMIG 380 230-400V

Reference 822043

DISCONTINUED PRODUCT

Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding: MIG-MAG/FLUX/BRAZING
No-load voltage: 43 V
Regulation current: 40 - 350 A
Current max: 350 A
Steel welding wire diameter: 0.6 - 1.6 mm
Inox welding wire diameter: 0.8 - 1.6 mm
Aluminium welding wire diameter: 0.8 - 1.2 mm
Flux cored welding wire diameter: 1 - 1.6 mm
Brazing wire diameter: 0.8 - 1.2 mm
Length: 890 mm
Width: 453 mm
Height: 1285 mm
Weight: 101 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 822043

Data sheet

Phase: Single phase / Three phase
Frequency (Hz): 50 / 60
Voltage (V): 230 / 400
Protection degree: IP22
No-load voltage (V): 43
Adjustment positions: 18
Regulation current (A): 40 - 350
Ø steel welding wire (mm): 0.6 - 1.6
Ø inox welding wire (mm): 0.8 - 1.6
Ø aluminium welding wire (mm): 0.8 - 1.2
Ø flux cored welding wire (mm): 1 - 1.6
Ø brazing wire (mm): 0.8 - 1.2
Type of welding: MIG-MAG
MIG-MAG welding: MIG-MAG/FLUX/BRAZING
Current max (A): 350
Length (mm): 890
Width (mm): 453
Height (mm): 1285
Weight (Kg): 101

Specific References

EAN13: 8004897790756

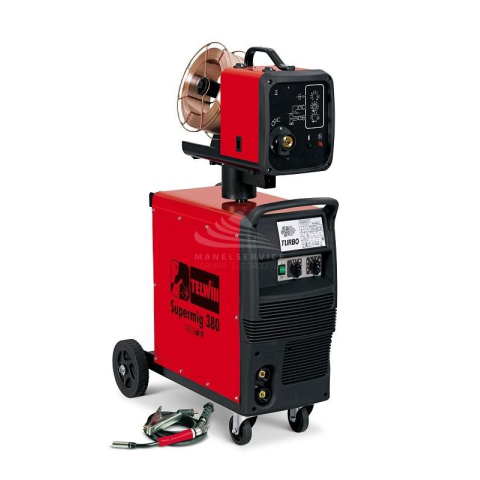

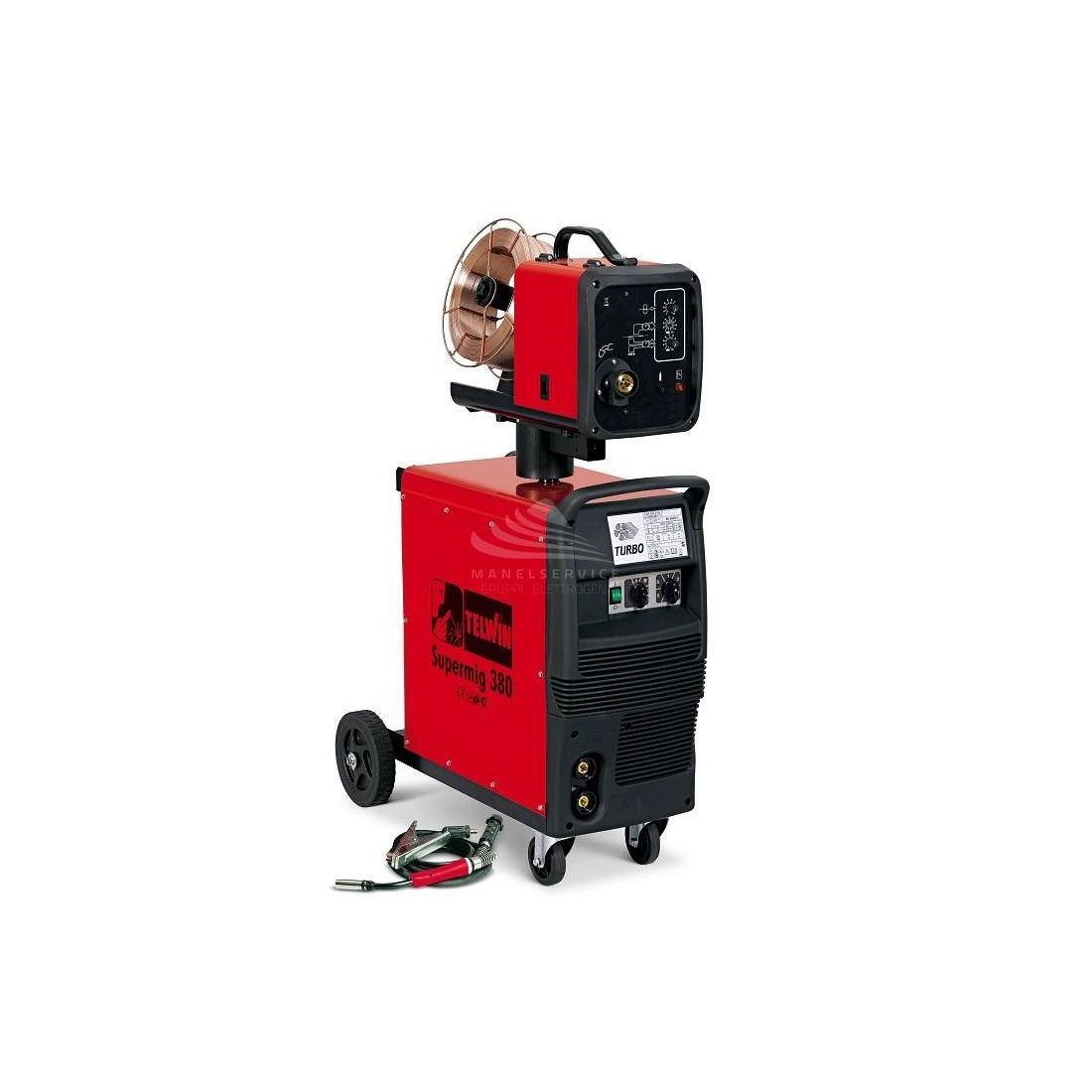

MIG-MAG/FLUX/BRAZING welding machine with 4 rolls, separate wire feeder, fit for use in the industrial field.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Features:
- Very strong
- Numerous steps for regulation of arc voltage
- Regulation of spot welding time
- Two positions for reactance
- Thermostatic protection
Thanks to the extensions (optional) it is possible to increase the working range between wire feeder and power source up to 10 meters.
Complete with MIG-MAG welding accessories.

Not binding images and technical data.
