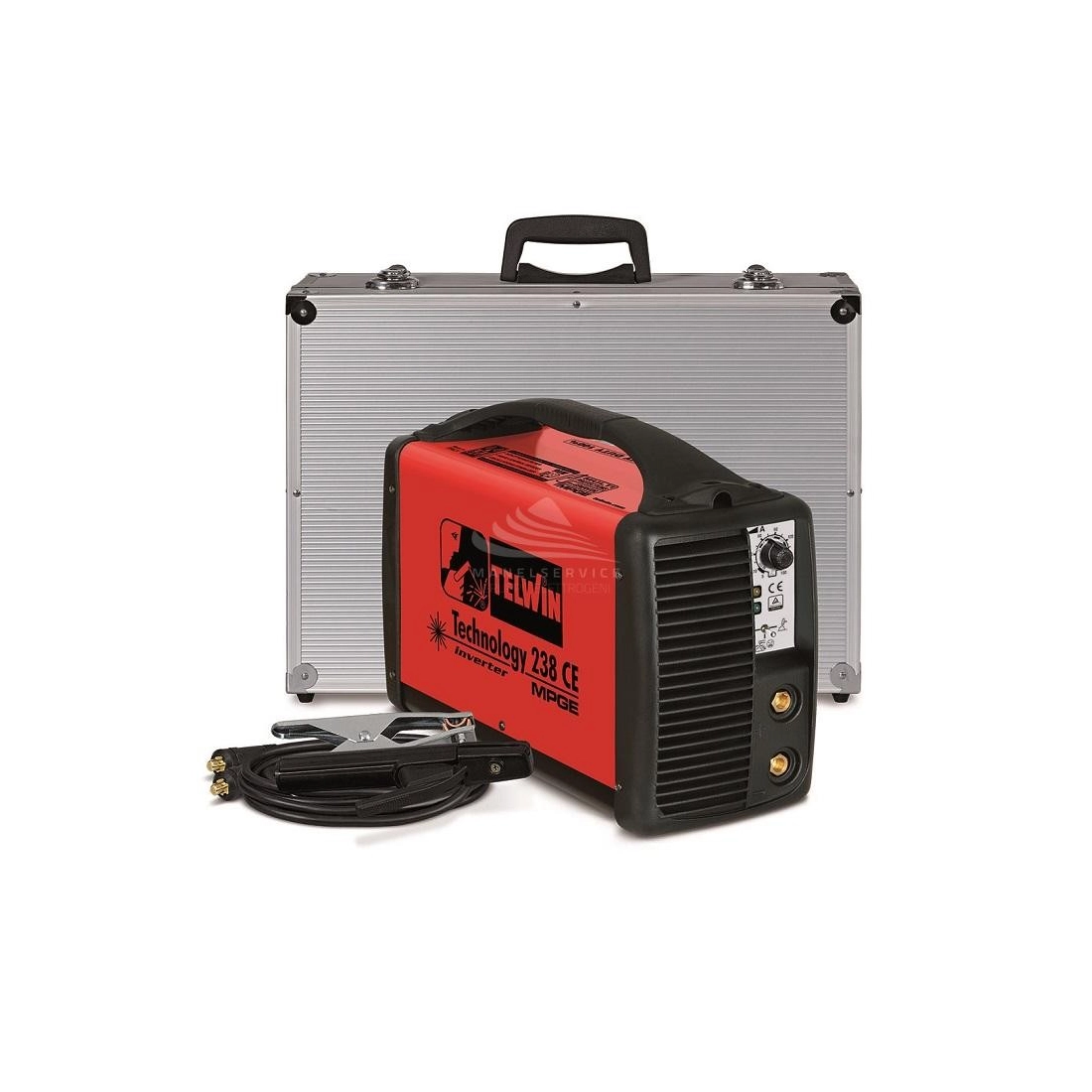

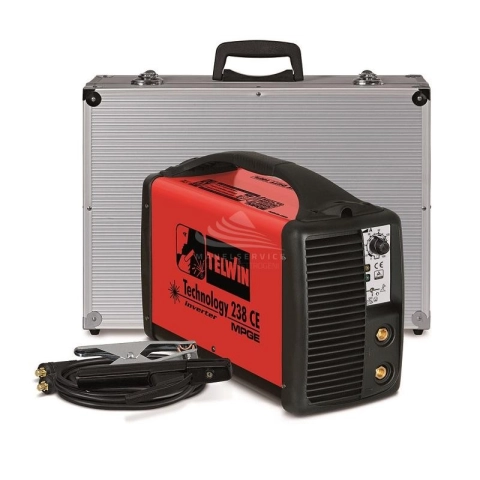

TELWIN TECHNOLOGY 238 CE/MPGE 230V ACX ALUMINIUM CARRY CASE
      TELWIN TECHNOLOGY 238 CE/MPGE 230V ACX ALUMINIUM CARRY CASE

      TELWIN TECHNOLOGY 238 CE/MPGE 230V ACX ALUMINIUM CARRY CASE

      DISCONTINUED PRODUCT

      Phase: Single phase
      Frequency: 50/60 Hz
      Voltage: 230 V
      Type of welding current: DC
      Type of welding: MMA / TIG
      No-load voltage: 102 V
      Regulation current: 5 - 180 A
      Current max: 180 A
      Diameter electrodes: 1.6 - 4 mm
      Length: 465 mm
      Width: 185 mm
      Height: 355 mm
      Weight: 10.1 Kg

      Custom Quote
      Product: TELWIN TECHNOLOGY 238 CE/MPGE 230V ACX ALUMINIUM CARRY CASE

      PERSONAL DATA


      Ask a question
      Product: TELWIN TECHNOLOGY 238 CE/MPGE 230V ACX ALUMINIUM CARRY CASE
      Offer on letterhead
      Product: TELWIN TECHNOLOGY 238 CE/MPGE 230V ACX ALUMINIUM CARRY CASE
      TELWIN
      816252

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230
      Efficiency (%)
      84
      Protection degree
      IP23
      Maximum permissible current (A)
      36
      No-load voltage (V)
      102
      Regulation current (A)
      5 - 180
      Diameter electrodes (mm)
      1.6 - 4
      Type of welding current
      DC
      Type of welding
      MMA / MIG
      Current max (A)
      180
      Length (mm)
      465
      Width (mm)
      185
      Height (mm)
      355
      Voltage regulator
      Inverter
      Weight (Kg)
      10.1

      Specific References

      EAN13
      8004897828732
      New

      MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
      Designed for welding cellulosic electrodes and coated electrodes such as aluminium, rutile, basic, stainless steel and cast iron electrodes with diameter up to 4 mm.
      It can be connected to motorgenerators.
      Features:
      - Compact and light
      - High welding current stability in spite of mains voltage fluctuations
      - Regulation of arc force and hot start according to the type of electrode in use
      - Anti-stick device
      - Thermostatic, overvoltage, undervoltage, overcurrent protections.
      Complete with MMA welding accessories and aluminium carry case.

      Not binding images and technical data.
