HELVI MAXIMIG 408

Name: HELVI MAXIMIG 408
Brand: HELVI
SKU: 99410065K
Price: 2815.76 EUR
Availability: InStock

Reference 99410065K

Phase type: Three-phase
Frequency: 50/60 Hz
Voltage: 230 V / 400 V
Power: 14.5 KVA @ 60%
Welding Type: MIG
No-load voltage: 18 ÷ 45 V
Current regulation: 30 - 400 A
Maximum current: 400 A
Amp. 60974-1: 40% 400 A 60% 326 A 100% 255 A
Welding positions: 28
Steel wire diameter: 0.6 - 1.6 mm
Stainless steel wire diameter: 0.8 - 1.2 mm
Aluminium wire diameter: 0.8 - 1.6 mm
Insulation: H
Degree of protection: IP23S
Length: 1000 mm
Width: 555 mm
Height: 810 mm
Weight: 129.8 Kg

List price

6,257.38 € tax incl.

5,129.00 € tax excl.

Discounted Price

2,815.76 € tax incl.

2,308.00 € tax excl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 99410065K

Data sheet

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 230 / 400
Protection degree
Motor insulation class: H
No-load voltage (V): 45
Adjustment positions: 28
Regulation current (A): 18 - 45
Amp. 60974-1 (40°): 225 A @ 60% - 290 A @ 35%
Ø steel welding wire (mm): 0.6 - 1.6
Ø inox welding wire (mm): 0.8 - 1.2
Ø aluminium welding wire (mm): 0.8 - 1.6
Type of welding current: DC
Type of welding: MIG-MAG
Current max (A): 400
Length (mm): 1000
Width (mm): 555
Height (mm): 810
Weight (Kg): 129.8

Specific References

Condition New

HELVI MAXIMIG 408

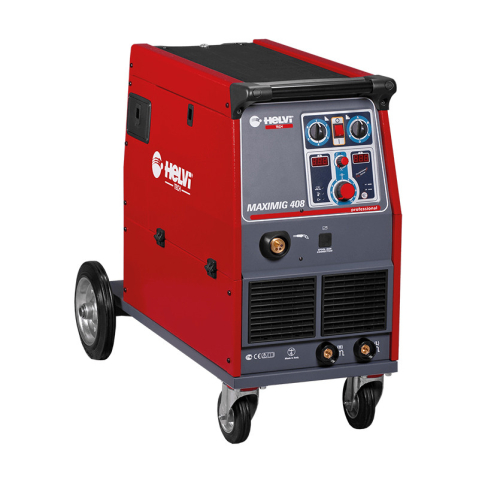

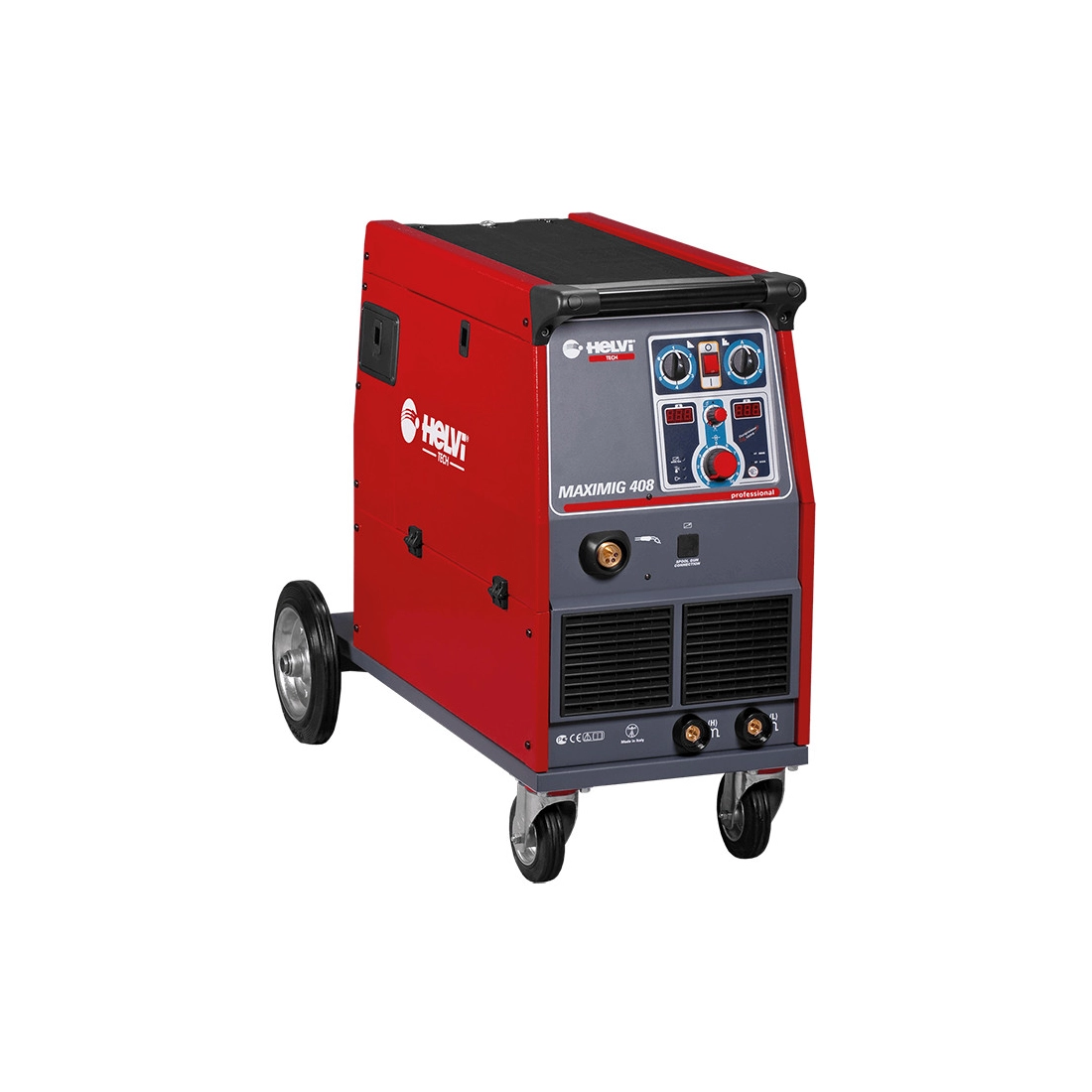

HELVI MAXIMIG 408 is a professional, industrial, three-phase, trolley-mounted continuous wire welding machine. HELVI It is designed to meet the needs of small and medium-sized carpentries, which require reliable and versatile equipment for HELVI welding of a wide range of materials, including steel, stainless steel and aluminum.

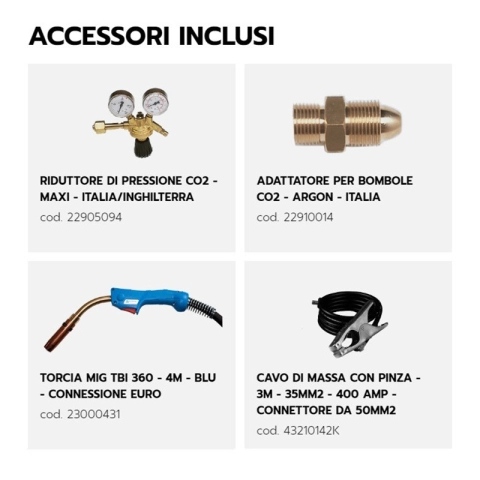

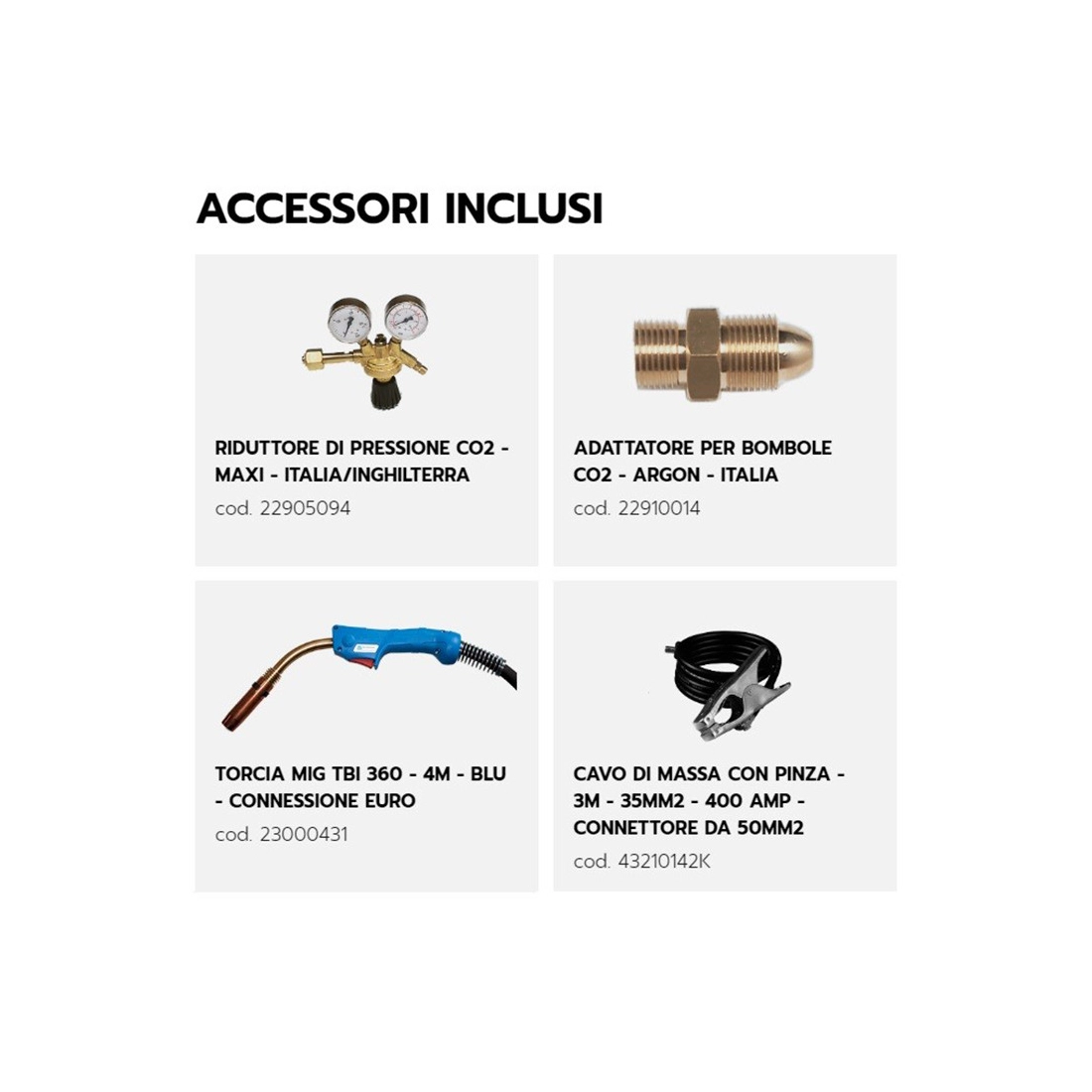

The HELVI MAXIMIG 408 welding machine is equipped with a flashlight with a euro connection, a pressure reducer, a gas hose, a clamp and a ground cable. It is also equipped with a spot welding timer and a display to show current and arc voltage.

HELVI MAXIMIG 408 Welding Machine Key Features:

Three-phase: the HELVI MAXIMIG 408 welder is powered at 230 V or 400 V, making it suitable for any electrical system.

Power: 14.5 KVA @ 60%, to ensure high performance even with demanding loads.

Welding type: MIG, for high quality and precision welding.

No-load voltage: 18 ÷ 45 V, for stable and uniform welding.

Current regulation: 30 to 400 A, to meet the needs of any application.

Maximum current: 400 A, for welding large materials.

Amp. 60974-1: 40% 400 A 60% 326 A 100% 255 A, for efficient and productive welding machine.

Welding machine positions: 28, for versatility of use.

Steel wire diameter: 0.6 - 1.6 mm, for a wide range of applications.

INOX steel wire diameter: 0.8 - 1.2 mm, for the stainless steel welding machine.

Aluminum wire diameter: 0.8 - 1.6 mm, for the aluminum welding machine.

Insulation: H, for high safety.

Degree of protection: IP23S, for protection from dust and water splashes.

HELVI MAXIMIG 408 Advantages.

The HELVI MAXIMIG 408 offers a number of advantages that make it an ideal choice for small and medium-sized carpentries:

Reliability: the HELVI MAXIMIG 408 welding machine is designed and built with high-quality materials to ensure a long service life.

Versatility: the HELVI MAXIMIG 408 welding machine can weld a wide range of materials, in different positions.

Efficiency: the HELVI MAXIMIG 408 welding machine is energy efficient to reduce operating costs.

Safety: the HELVI MAXIMIG 408 welding machine is equipped with safety devices to protect the operator.

If you are looking for a ptoduct like HELVI MAXIMIG 408 or with similar features click HERE.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
