TELWIN ELECTROMIG 230 WAVE 400V
      TELWIN ELECTROMIG 230 WAVE 400V

      TELWIN ELECTROMIG 230 WAVE 400V

      816060

      Phase: Three phase
      Frequency: 50/60 Hz
      Voltage: 400 V
      Type of welding: MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift
      No-load voltage: 95 V
      Regulation current: 10 - 240 A
      Current max: 200 A
      Diameter electrodes: 1.6 - 4 mm
      Steel welding wire diameter: 0.6 - 1 mm
      Inox welding wire diameter: 0.8 - 1 mm
      Aluminium welding wire diameter: 0.8 - 1 mm
      Flux cored welding wire diameter: 0.8 - 1.2 mm
      Brazing wire diameter: 0.8 - 1 mm
      Length: 795 mm
      Width: 375 mm
      Height: 730 mm
      Weight: 31.7 Kg

      List price
      3,647.80 € tax incl.
      2,990.00 € tax excl.
      Discounted Price
      1,919.06 € tax incl.
      1,573.00 € tax excl.
      Shipping from 20.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: TELWIN ELECTROMIG 230 WAVE 400V

      PERSONAL DATA


      Ask a question
      Product: TELWIN ELECTROMIG 230 WAVE 400V
      Offer on letterhead
      Product: TELWIN ELECTROMIG 230 WAVE 400V
      TELWIN
      816060

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      400
      Efficiency (%)
      86
      Protection degree
      IP23
      No-load voltage (V)
      95
      Regulation current (A)
      10 - 240
      Diameter electrodes (mm)
      1.6 - 4
      Ø steel welding wire (mm)
      0.6 - 1
      Ø inox welding wire (mm)
      0.8 - 1
      Ø aluminium welding wire (mm)
      0.8 - 1
      Ø flux cored welding wire (mm)
      0.8 - 1.2
      Ø brazing wire (mm)
      0.8 - 1
      Type of welding
      Multiprocess
      MIG-MAG welding
      MIG-MAG/FLUX/BRAZING
      Current max (A)
      Length (mm)
      795
      Width (mm)
      375
      Height (mm)
      730
      Voltage regulator
      Inverter
      Weight (Kg)
      31.7

      Specific References

      EAN13
      8004897926087
      New

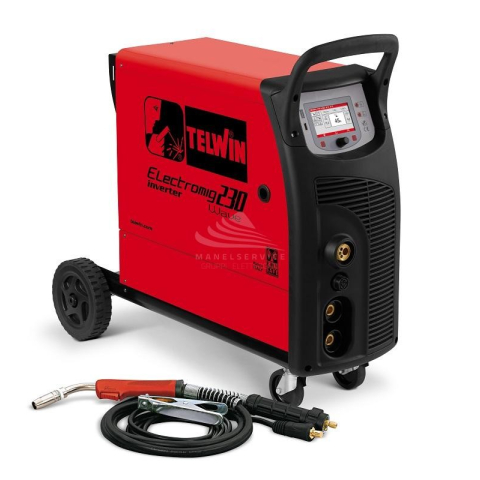

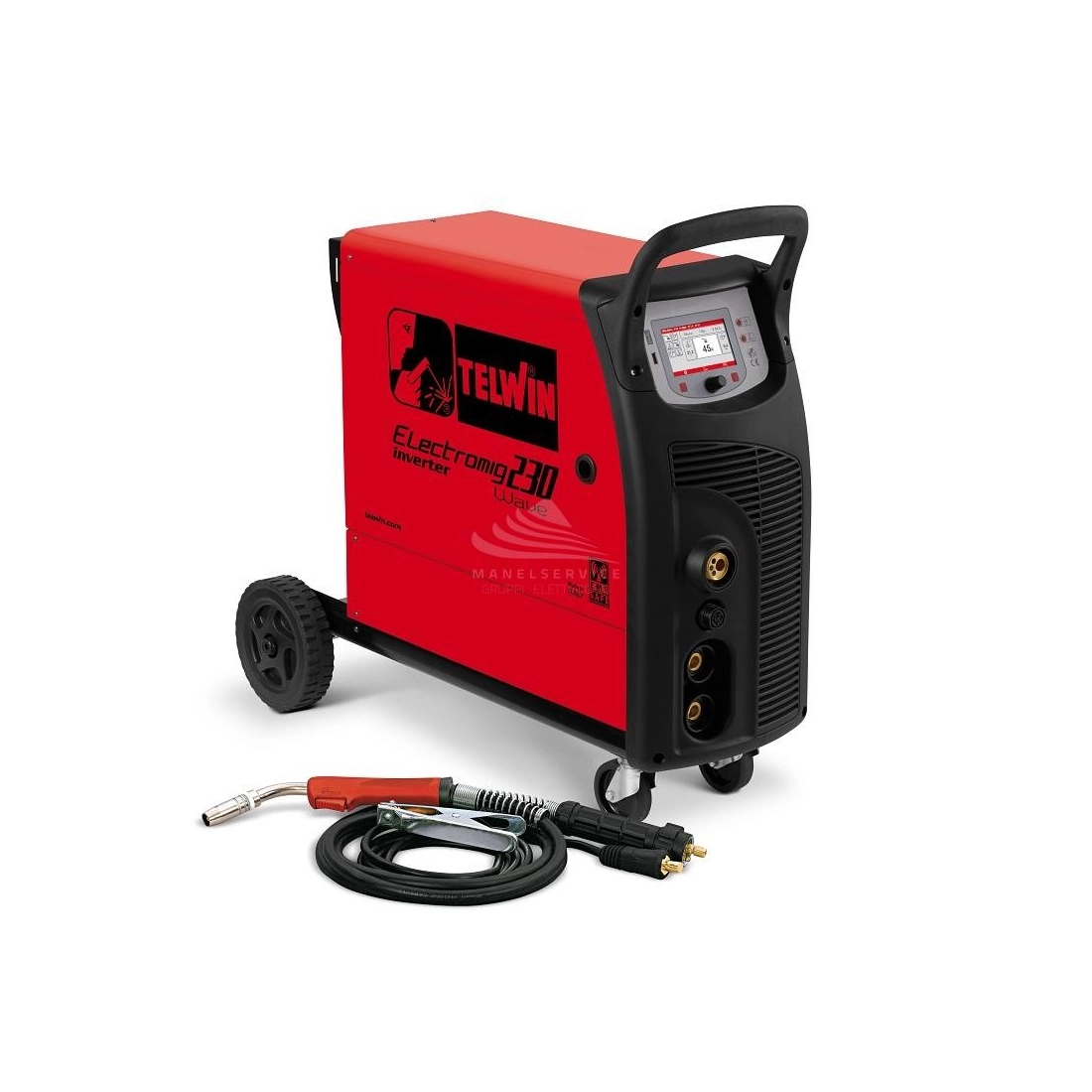

      Microprocessor controlled, multiprocess MIG-MAG (continuous and pulse), FLUX/BRAZING/MMA/TIG DC-Lift inverter welding machine.
      The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanks to SYNERGIC adjustment of parameters.
      Maximum operational flexibility for use in a wide variety of application sectors, from maintenance to installation and interventions at body shops.
      It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) with specific welding processes having low thermal transfer, ROOT-MIG and ATC, and specific processes for aluminium and brazed materials AB PULSE and AB PoP.
      The intelligent and automatic control of the arc, instant by instant, will maintain high levels of welding in all working conditions, with different materials and/or gases.
      Complete with VRD device.
      Supplied with various stored welding programmes, it offers the possibility also to store, trace and export more customised programmes.
      Complete with MIG-MAG torch, cable and earth clamp.

      Not binding images and technical data.
