TELWIN EURARC 410 230V/400V

817016
      TELWIN EURARC 410 230V/400V
      TELWIN EURARC 410 230V/400V

      OUT OF PRODUCTION

      Phase: Single phase / Three phase
      Frequency: 50/60 Hz
      Voltage: 230 / 400 V
      Type of welding current: AC
      Type of welding: MMA
      No-load voltage: 51 V
      Regulation current: 70 - 330 A
      Diameter electrodes: 2 - 6 mm
      Length: 830 mm
      Width: 455 mm
      Height: 580 mm
      Weight: 45 Kg

      Ask a question
      Offer on letterhead
      Ask for availability
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TELWIN
      817016

      Data sheet

      Phase
      Single phase / Three phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 400
      Protection degree
      IP22
      No-load voltage (V)
      51
      Regulation current (A)
      70 - 330
      Diameter electrodes (mm)
      2 - 6
      Type of welding current
      AC
      Type of welding
      MMA
      Length (mm)
      830
      Width (mm)
      455
      Height (mm)
      580
      Weight (Kg)
      45

      Specific References

      EAN13
      8004897847887
      New

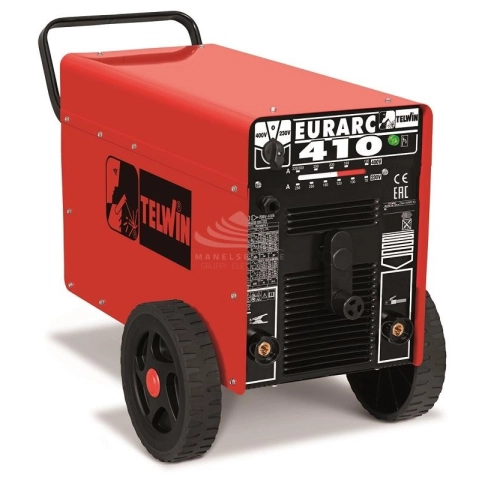

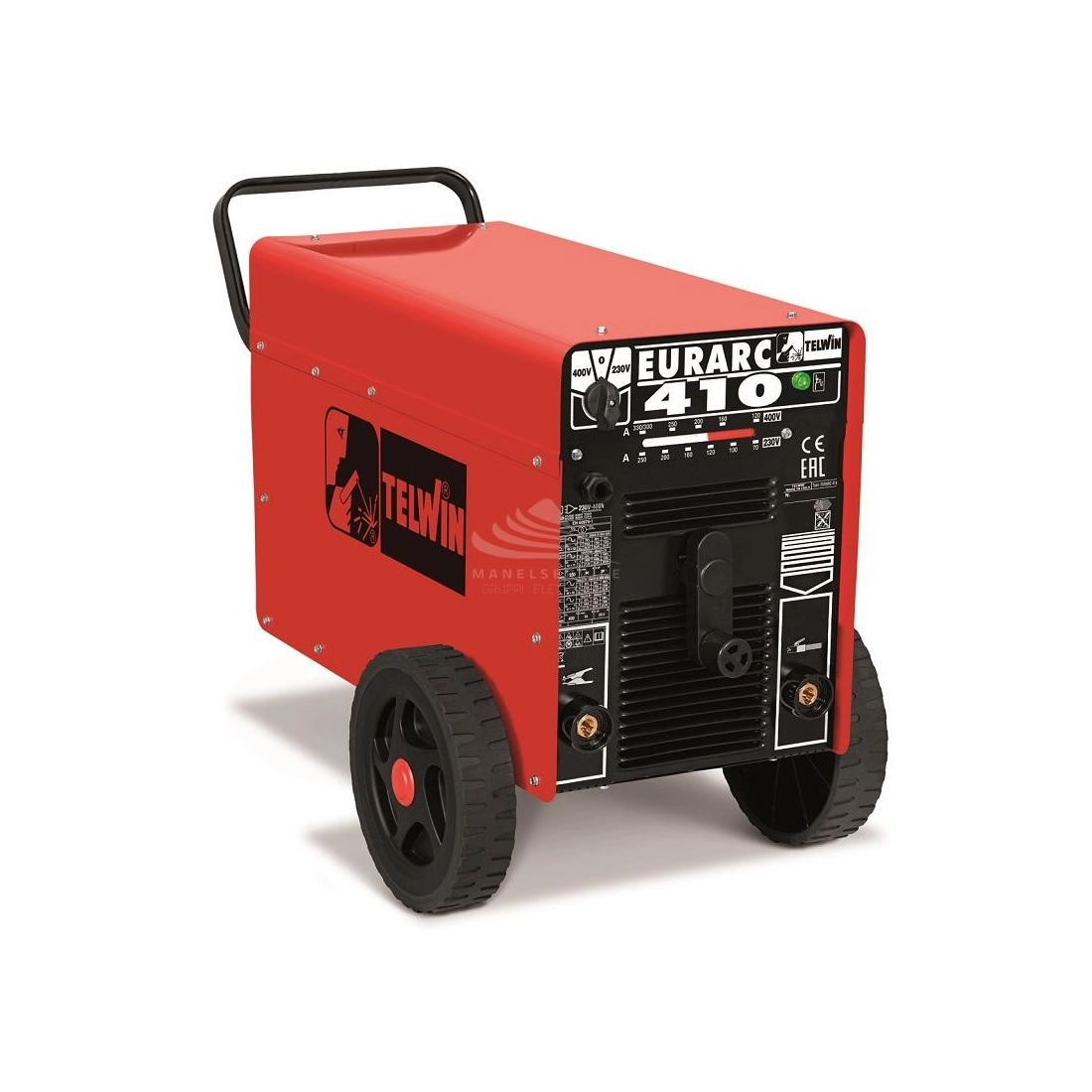

      MMA stick electrode welding machine in alternating current (AC). Stepless regulation of welding current.
      With thermostatic protection.
      Use with a wide range of electrodes: rutile.

      Not binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
