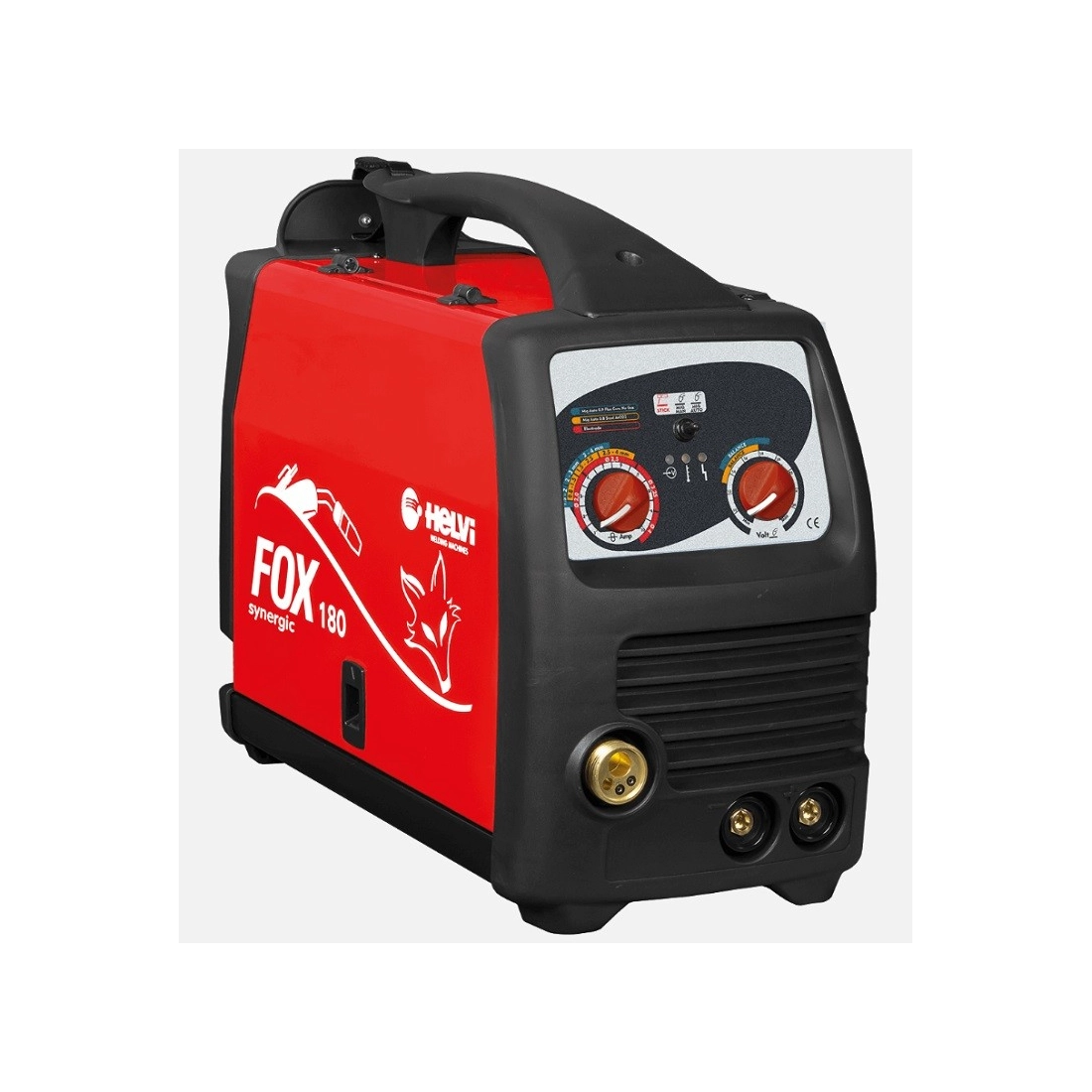

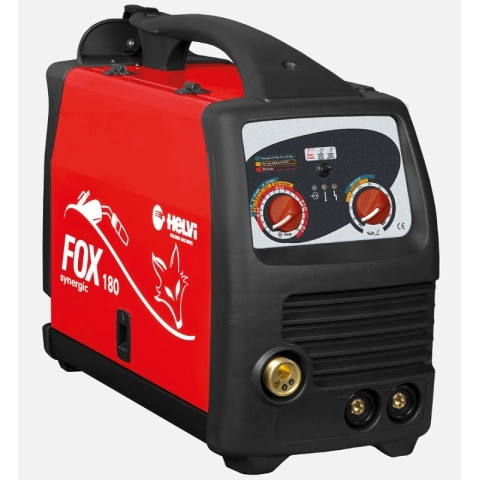

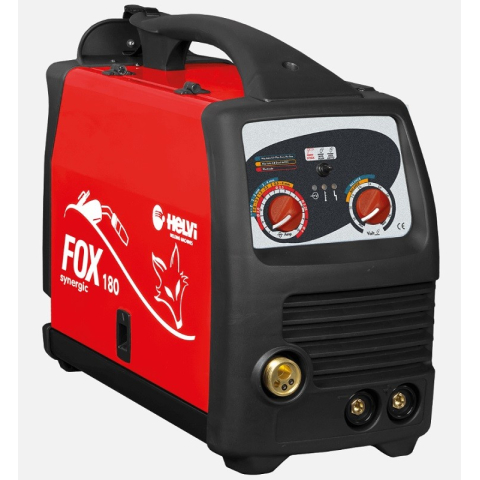

HELVI FOX 180S Inverter Multiprocess MMA-MIG Welder 3.5 kVA

Reference 99820009

OUT OF PRODUCTION

Phase type: Single-phase
Frequency: 50/60 Hz
Voltage: 230 V
Power: 3.5 kVA @ 60%
Welding Type: MMA-MIG
No-load voltage: 25 ÷ 39 V
Current regulation: 25 - 170 A
Maximum current: 170 A
Amp. 60974-1: 25% 170 A - 60 % 110 A - 100% 85 A
Electrode type: 6013 (rutile)
Electrode Diameter: 1.6 - 3.25 mm
Steel wire diameter: 0.6 - 1 mm
Stainless steel wire diameter: 0.8 - 1 mm
Aluminium wire diameter: 0.8 - 1 mm
Flux-core diameter: 0.8 - 1 mm
Brazing diameter: 0.8 - 1 mm
Insulation: H
Degree of protection: IP22S
Length: 480mm
Width: 220 mm
Height: 385 mm
Weight: 11.5 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 99820009

Data sheet

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Cooling: Air
Protection degree: IP22S
Motor insulation class: H
No-load voltage (V): 39
Regulation current (A): 18 - 45
Welding current (A): 290
Amp. 60974-1 (40°): 85 A @ 100% 110 A @ 60% - 170 A @ 25%
Diameter electrodes (mm): 1 - 3.5
Maximum diameter electrodes (mm): 3.25
Ø steel welding wire (mm): 0.6 - 1
Ø inox welding wire (mm): 0.8 - 1
Ø aluminium welding wire (mm): 0.8 - 1
Ø flux cored welding wire (mm): 0.8 - 1
Ø brazing wire (mm): 0.8 - 1
Type of welding current: DC
Type of welding: Multiprocess
MIG-MAG welding: MIG-MAG/FLUX/BRAZING
Maximum wire diameter (mm): 1
Current max (A): 170
Power consumption (W): 2800
Length (mm): 480
Width (mm): 220
Height (mm): 385
Voltage regulator: Inverter
Weight (Kg): 11.5
Video: xiDObKywLgs

Specific References

Condition New

MAIN FEATURES:
- Inverter technology
- Automatically compensates for grid imbalances
- Lightness and versatility
- Convenient patented torch holder and cable holder
- Easy adjustment thanks to reference scales
- Excellent results even for inexperienced welders
- Suitable for use with generator (10 kVA recommended)

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
