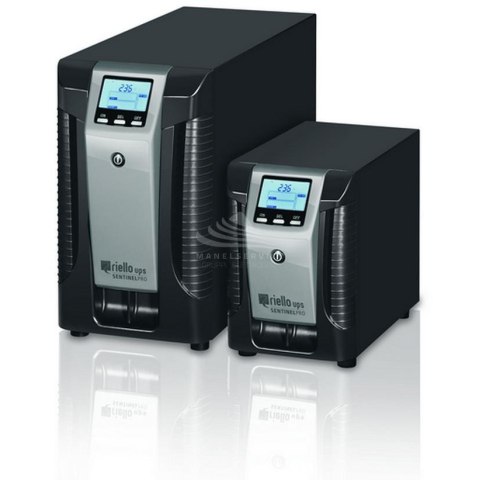

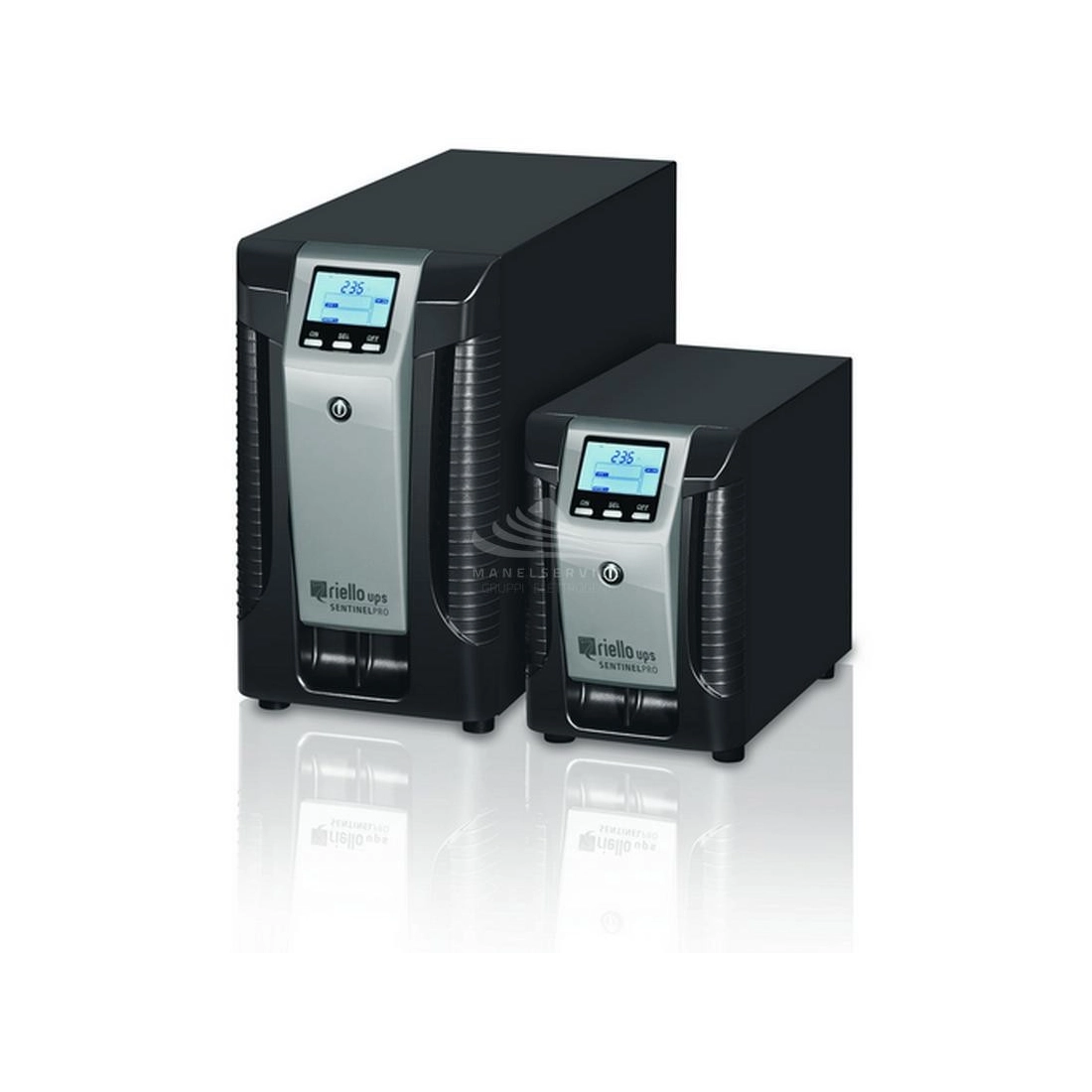

RIELLO UPS SEP3000ER 3000VA

Reference CSEP3K0LNB

Rated power: 3000 VA

Voltage: 220 / 230 / 240 V

Voltage tolerance: 230 V ±20%.

Frequency. 50 / 60 Hz

Frequency tolerance: 50 Hz ±5% / 60 Hz ±5%.

Power factor: >0.99

Current distortion: ?7%.

Voltage tolerance: 180 / 264 V

Frequency tolerance: Frequency selected (±1.5 Hz to ±5 Hz configurable)

Rated power: 3000 VA

Active power: 2400 W

Number of phases: 1

Crest factor (Ipicco/Irms): 3 : 1

Waveform: Sinusoidal

Frequency: Selectable: 50 Hz or 60 Hz or self-learning

Voltage distortion with distorting load: <4%.

Voltage distortion with linear load: <2%.

Overload times

Load = 150%: 1 sec.

Load = 125%: 5 sec.

Batteries

Type: VRLA AGM lead-acid, maintenance-free; Supercaps

Charging time: 2-4 h

Colour: Black

Dimensions: 190 x 446 x 333 mm

Weight: 15 kg

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 220 / 230 / 240
Power (VA): 3000
Battery type: VRLA/AGM/GEL/NiCd/Liion/Supercaps
Operating temperature (°C): 0 °C / +40 °C
Length (mm): 446
Width (mm): 190
Height (mm): 333
Dry weight (Kg): 15
Colour: Black

CHARACTERISTICS

Filtered, stabilised and reliable voltage: ON LINE double conversion technology (VFI according to IEC 62040-3) with filters for atmospheric noise suppression;
High overload capacity (up to 150%);
Programmable auto restart at mains return;
Battery ignition (Cold Start);
Load power factor correction (UPS input power factor close to 1);
Wide input voltage tolerance range (from 140 V to 276 V) without battery intervention;
Expandable autonomy for several hours;
Fully configurable via UPS Tools configuration software;
High battery reliability (automatic and manually activated battery test);
High UPS reliability (total microprocessor control);
Low impact on mains (sinusoidal absorption).
ADVANCED COMMUNICATION

Multiplatform communication for all operating systems and network environments: PowerShield3 monitoring and shutdown software for Windows 10, 8, 7, Hyper-V, 2019, 2016, 2012 and earlier versions, Mac OS X, Linux, VMWare ESXi, Citrix XenServer and other Unix operating systems;
UPS Tools configuration and customisation software supplied as standard;
RS232 serial port and opto-isolated contacts;
USB port;
Slot for communication cards.

Images and technical data are not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
