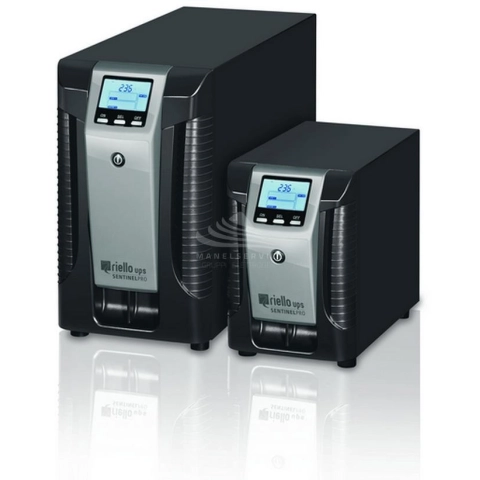

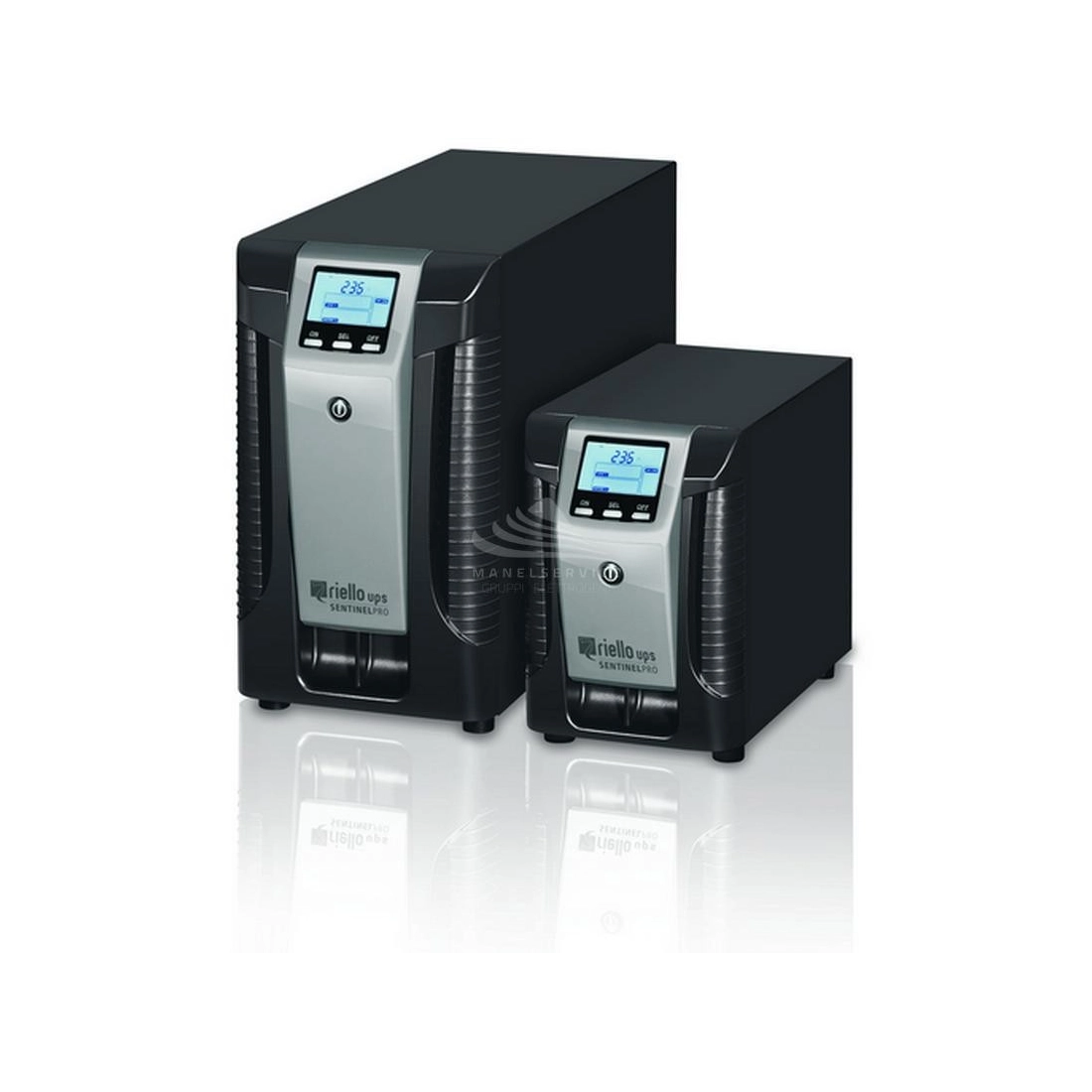

RIELLO SEP 2200 A3 2200 VA

Reference SEP 2200 A3

Rated power: 2200 VA
Voltage: 220 / 230 / 240 V
Voltage tolerance: 230 V ±20%.
Frequency. 50 / 60 Hz
Frequency tolerance: 50 Hz ±5% / 60 Hz ±5%
Power factor: >0.99
Current distortion: ?7%
Voltage tolerance: 180 / 264 V
Frequency tolerance: Frequency selected (±1.5 Hz to ±5 Hz configurable)
Rated power: 2200 VA
Active power: 1980 W
Number of phases: 1
Crest factor (Ipicco/Irms): 3 : 1
Waveform: Sinusoidal
Frequency: Selectable: 50 Hz or 60 Hz or self-learning
Voltage distortion with distorting load: <4%.
Voltage distortion with linear load: <2%.
Overload times
Load = 150%: 1 sec.
Load = 125%: 5 sec.
Batteries
Type: VRLA AGM leaded, maintenance-free; Supercaps
Recharge time: 2-4 h
Colour: Black
Weight: 25.6 kg
Dimensions (h l w d): 333x190x446 mm

Download Scheda tecnica SEP 2200 A3

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 220 / 230 / 240
Power (VA): 125000
Battery type: VRLA/AGM/GEL/NiCd/Liion/Supercaps
Operating temperature (°C): 0 °C / +40 °C
Length (mm): 446
Width (mm): 190
Height (mm): 333
Dry weight (Kg): 25.6
Colour: Black

CHARACTERISTICS

Filtered, stabilised and reliable voltage: ON LINE double conversion technology (VFI according to IEC 62040-3) with filters for atmospheric noise suppression;
High overload capacity (up to 150%);
Programmable auto restart at mains return;
Battery ignition (Cold Start);
Load power factor correction (UPS input power factor close to 1);
Wide input voltage tolerance range (from 140 V to 276 V) without battery intervention;
Expandable autonomy for several hours;
Fully configurable via UPS Tools configuration software;
High battery reliability (automatic and manually activated battery test);
High UPS reliability (total microprocessor control);
Low impact on mains (sinusoidal absorption).
ADVANCED COMMUNICATION

Multiplatform communication for all operating systems and network environments: PowerShield3 monitoring and shutdown software for Windows 10, 8, 7, Hyper-V, 2019, 2016, 2012 and earlier versions, Mac OS X, Linux, VMWare ESXi, Citrix XenServer and other Unix operating systems;
UPS Tools configuration and customisation software supplied as standard;
RS232 serial port and opto-isolated contacts;
USB port;
Slot for communication cards.
