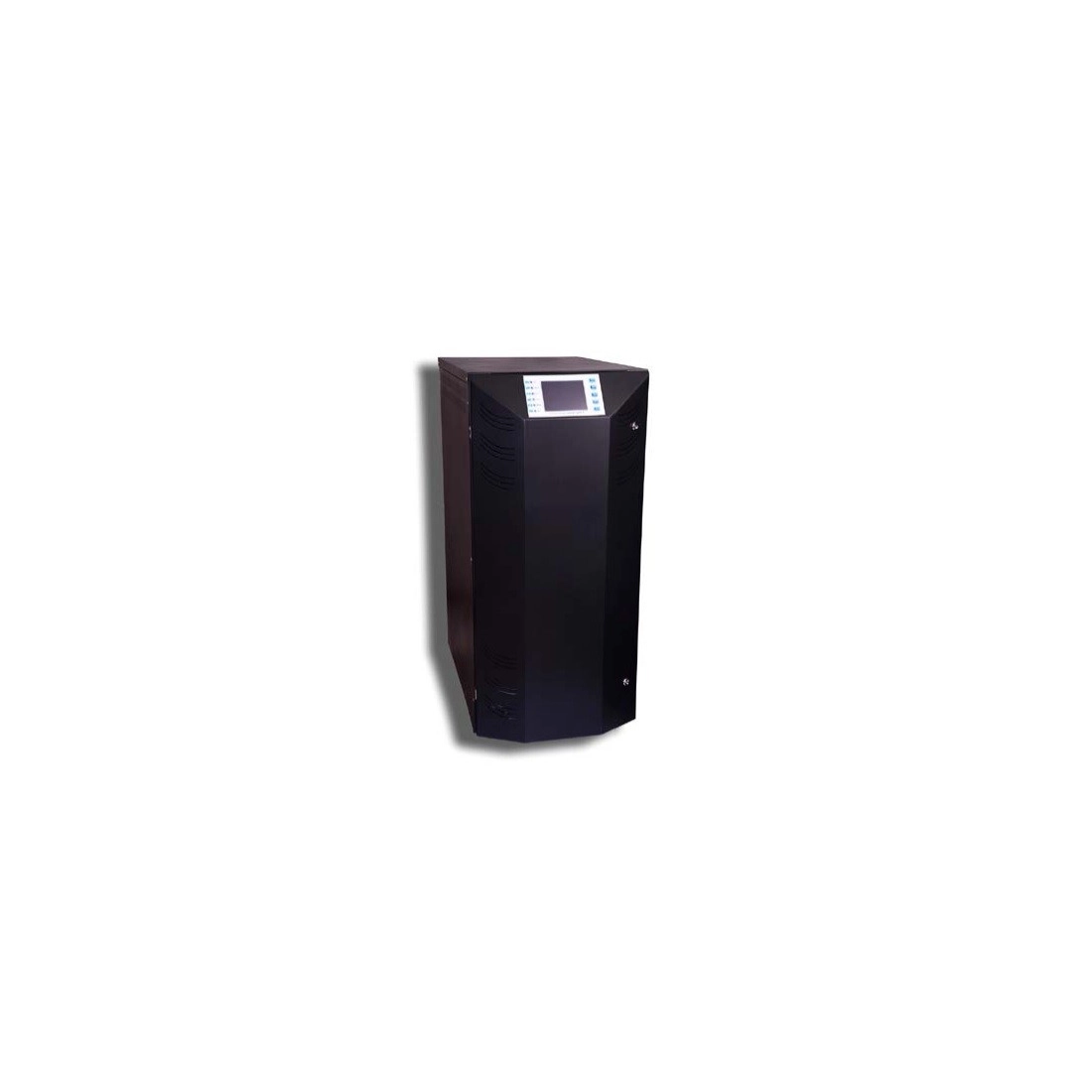

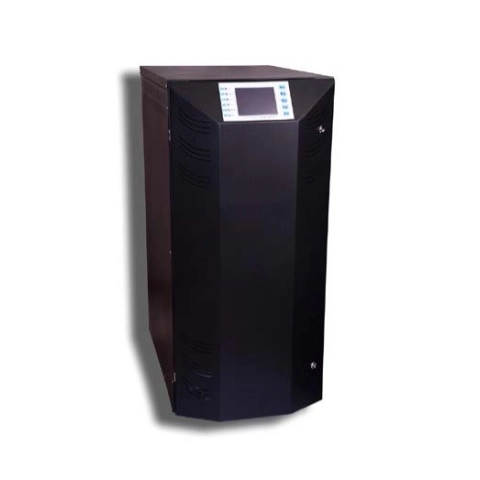

UPS300 Three-phase - Nominal power 30 KVA P.F. 0.8

Reference UPS 300

INPUT
Nominal power: 30KVA
Voltage: 380/400/415 VAC three-phase + N + ground
Input voltage variation: ± 20%
Frequency: 40 / 72 Hz
Power factor: 0.99
Maximum input current phase/neutral: 45 A
Harmonic distortion:< 3%
BY - PASS
Rated voltage: 380/400/415 VAC three-phase + N + earth
Voltage variation: ± 15% (selectable from ± 5% to ± 25%)
Frequency: 50/60 Hz
Rated current: 200% In
Number of phases: 3+N
Protection: short circuit - over load - over temperature
OUTPUT
Nominal power: 30 KVA
Active power: 24 KW
Number of phases: 3+N
Crest factor:3:1
Waveform: sinusoidal
Static stability: ±1%
Dynamic stability: ± 1%
Phase/neutral output current: 38 A
Frequency: 50/60 Hz selectable and/or automatic
Distortion on linear load: 1%
Non-linear load distortion: 3%

Dimensions mm: 500 x 800 x1100 h
Weight without batteries in Kg: 115
Weight of metal cabinet in Kg: 150

Download Technical Data UPS300

Product Details
Description

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 380/400/415 trifase + N + terra
Protection degree: IP21
Power (VA): 30000
Full charge time in network (h): 6
Battery type: Maintenance-free hermetic lead
Length (mm): 800
Width (mm): 500
Height (mm): 1100
Sound level at driver's ear: ? 50 dBA
Input voltage (V): 380/400/415 trifase + N + terra
Kind of wave: Sinusoidal
Colour: Black
Nominal input voltage (V): 380/400/415 VAC trifase + N + terra
Display/read-out: LCD display
Approvals: EN 62040 - 2 Lev. A and Directive 73/23 EEC, 93/68 EEC, 89/336 EEC
Power factor control: 0.99
Protections: Over temperature, over load, short circuit, high/low battery voltage
MasterBus compatible: Yes
Weight (Kg): 150

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
