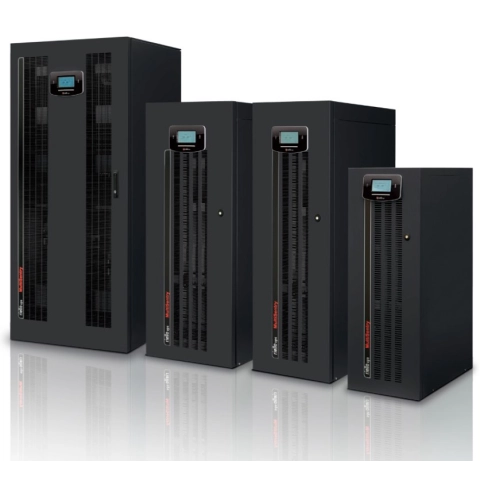

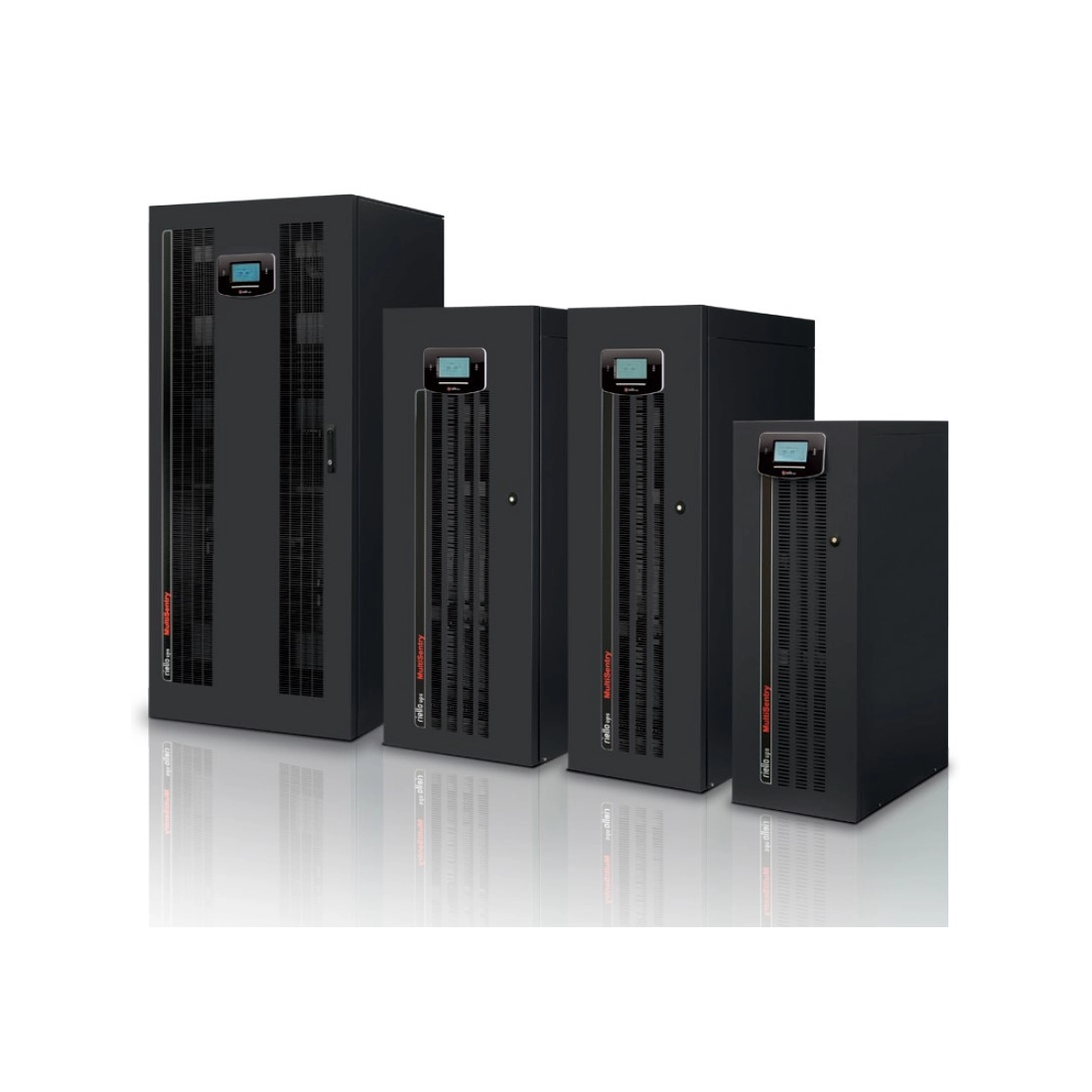

RIELLO MST 125 T4 MULTI SENTRY UPS 125 KVA

Reference RIEEMSTM13ANB00

VERSION WITH SEPARATE BATTERY BOX

ENTRANCE
Rated voltage: 380-400-415 Vac three-phase + N
Nominal frequency: 50/60 Hz
Frequency tolerance: 40 ÷ 72 Hz
Power factor at full load: 0.99
Current distortion: THDI ? 3%.
BY-PASS
Rated voltage: 380-400-415 Vac three-phase + N
Number of phases: 3 + N
Voltage tolerance: 180 ÷ 264 V (selectable)
Rated frequency: 50 or 60 Hz (selectable)
Frequency tolerance: ±5 (selectable)
EXIT
Rated power: 125 kVA
Active power: 112.5 kW
Power factor: 0.9
Number of phases: 3 + N
Rated voltage: 380-400-415 Vac three-phase + N (selectable)
Static variation: ± 1%
Dynamic variation: ± 3%
Crest factor: 3 : 1 Ipeak/Irms
Voltage distortion: ? 1% with linear load / ? 3% with distorting load
Frequency: 50/60 Hz
Frequency stability in battery: 0.01%.

Supported battery type: VRLA AGM/GEL/NiCd/Li-ion/Supercaps
recharge time: 6 hours
Weight without batteries (kg): 250
Depth: 840 mm
Width: 650 mm
Height: 1600 mm
Communication: 3 slots for communication interface /RS232/USB
Ambient temperature: 0 °C/ +40 °C
Relative humidity: 90% non-condensing
Colour: Dark grey RAL 7016
Noise level at 1 meter: < 63 dB(A)
Degree of protection: IP20
Smart Active Yield: up to 99%
With wheels for handling

Download Technical Data RIELLO MST

Product Details
Description

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 380-400-415 + N
Protection degree: IP20
Power (VA): 125000
Battery type: VRLA/AGM/GEL/NiCd/Liion/Supercaps
Operating temperature (°C): 0 °C / +40 °C
Acoustic pressure: 63 dB(A) at 7 m
Length (mm): 840
Width (mm): 650
Height (mm): 1600
Dry weight (Kg): 250
Colour: Grey

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Unavailable

€22,380.00 €22,380.00

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
