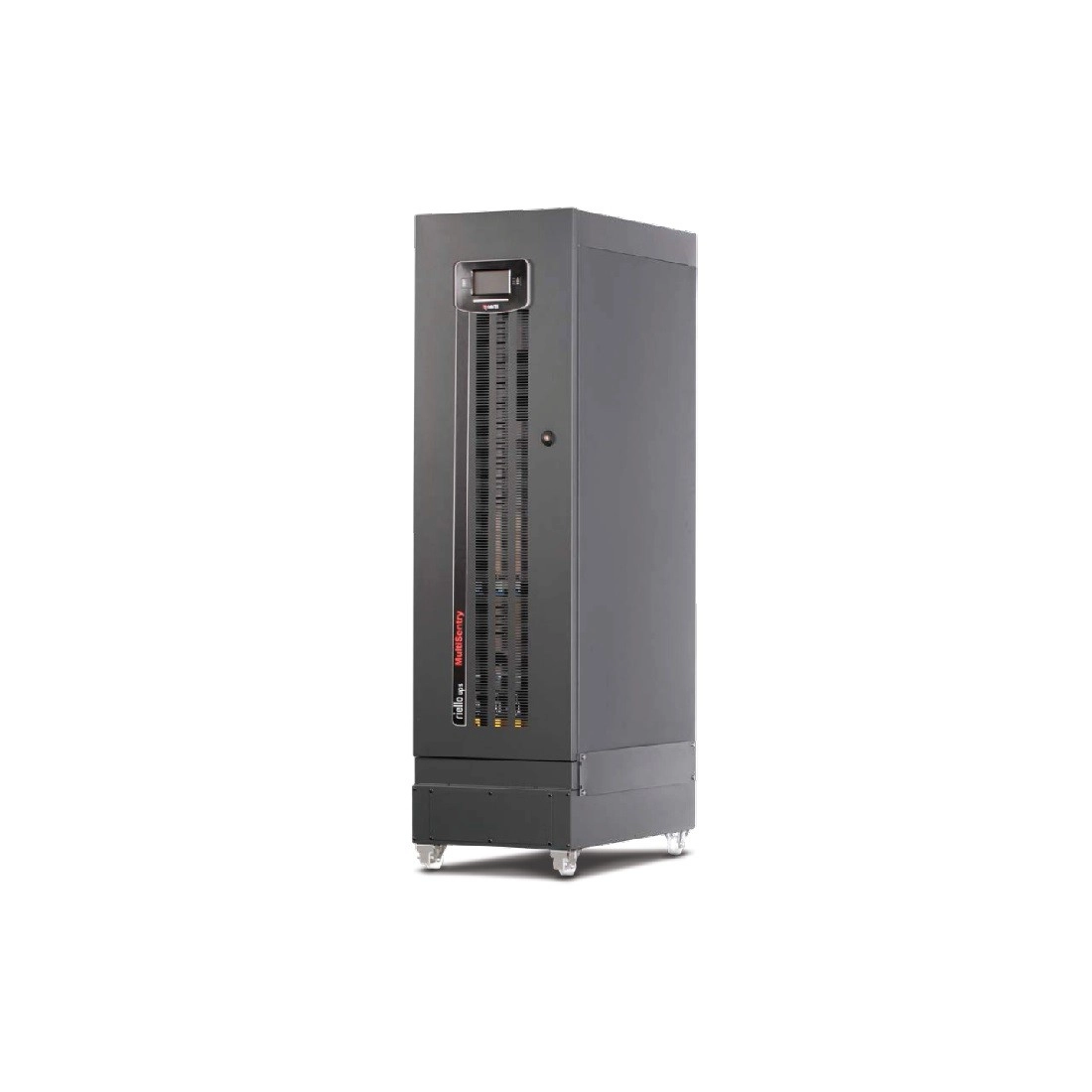

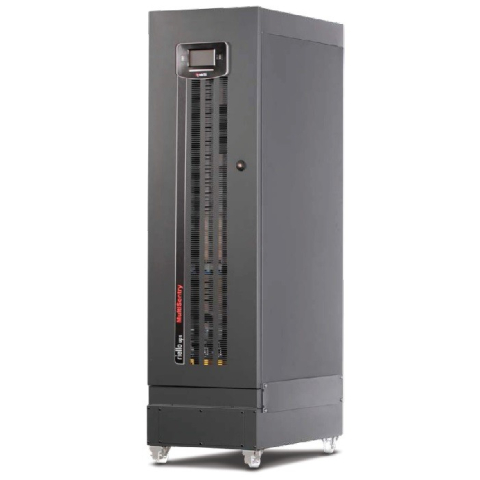

RIELLO MST 12 T4 MULTY SENTRY UPS 12000 VA

Reference RIEDMSTK15AT400

Version with internal batteries
Running time: 25 min
INPUT
Rated voltage: 380-400-415 Vac three-phase + N
Rated frequency: 50/60 Hz
Frequency tolerance: 40 ÷ 72 Hz
Power factor at full load: 0.99
Current distortion: THDI ? 3%
BY-PASS
Rated voltage: 380-400-415 Vac three-phase + N
Number of phases: 3 + N
Voltage tolerance: 180 ÷ 264 V (selectable)
Rated frequency: 50 or 60 Hz (selectable)
Frequency tolerance: ±5 (selectable)
EXIT
Rated power: 15 kVA
Active power: 13.5 kW
Power factor: 0.9
Number of phases: 3 + N
Rated voltage: 380-400-415 Vac three-phase + N (selectable)
Static variation: ± 1%
Dynamic variation: ± 3%
Crest factor: 3 : 1 Ipeak/Irms
Voltage distortion: ? 1% with linear load / ? 3% with distorting load
Frequency: 50/60 Hz
Frequency stability in battery: 0.01%
Overload at Pf 0.8: 115% unlimited, 125% for 10 minutes, 150% for 1 minute, 168% for 5 seconds
BATTERIES
Type: Lead
Weight without batteries (kg): 325
Depth: 850 mm
Width: 440 mm
Height: 1320 mm
Communication: 3 slots for communication interface /RS232/USB
Ambient temperature: 0 °C/ +40 °C
Relative humidity: 90% non-condensing
Colour: Dark grey RAL 7016
Noise level at 1 meter: < 52 dB(A)
Degree of protection: IP20
Smart Active efficiency: up to 99%
With wheels for handling

Download Technical Data MST

Product Details
Description

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 380-400-415 + N
Protection degree: IP20
Power (VA): 15000
Battery type: Lead acid
Operating temperature (°C): 0 °C / +40 °C
Running time (h): 25 min
Acoustic pressure: 52 dB(A) at 7 m
Length (mm): 850
Width (mm): 440
Height (mm): 1320
Dry weight (Kg): 325
Colour: Grey

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
