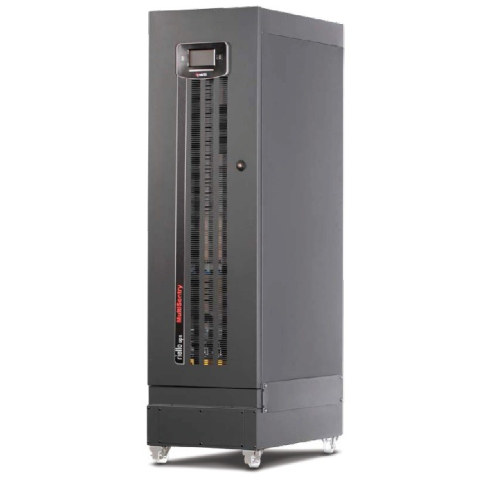

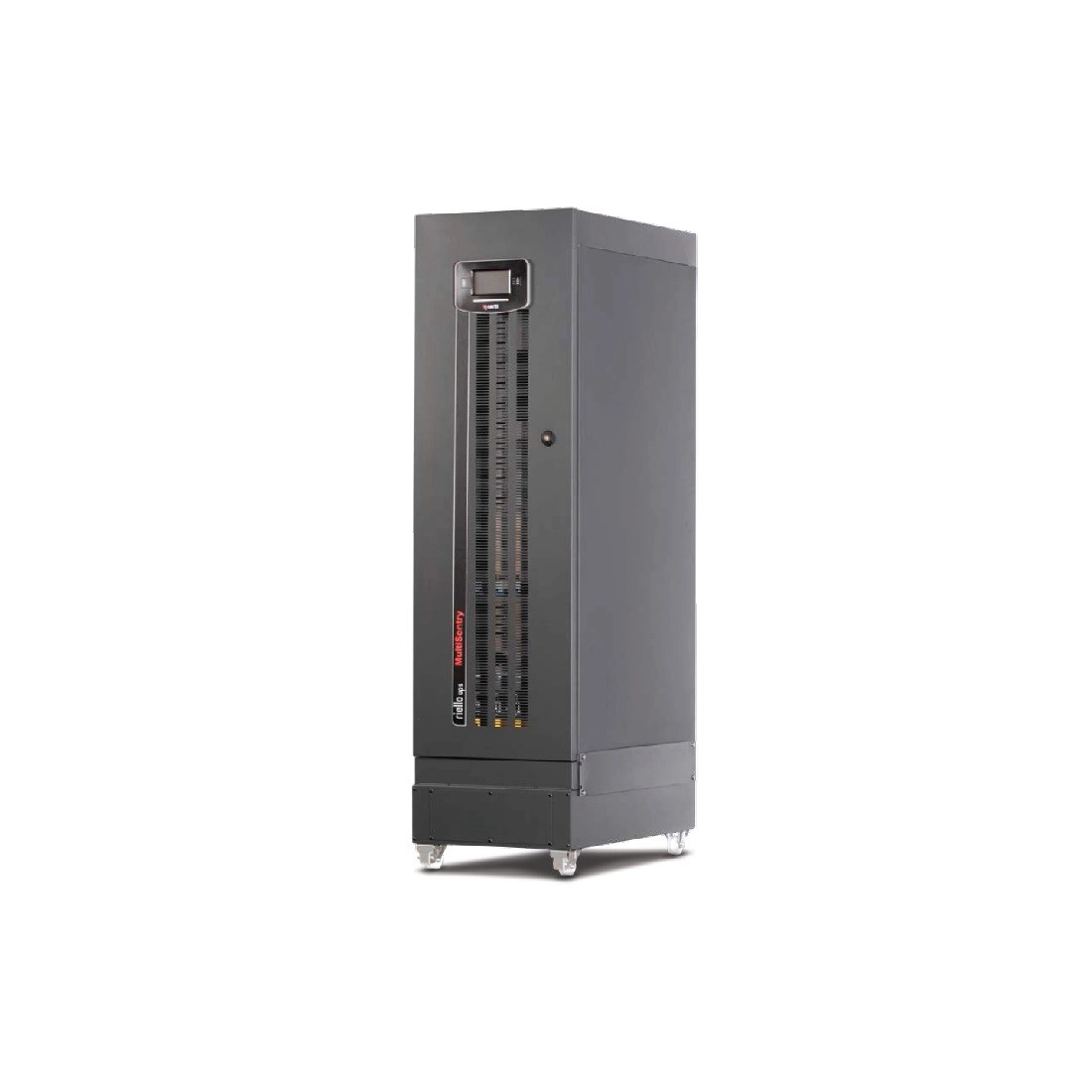

RIELLO MST 30 MULTY SENTRY UPS 30000 VA

Reference RIEDMSTK30AA000

INPUT
Rated voltage: 380-400-415 Vac three-phase + N
Rated frequency: 50/60 Hz
Frequency tolerance: 40 ÷ 72 Hz
Power factor at full load: 0.99
Current distortion: THDI ? 3%
BY-PASS
Rated voltage: 380-400-415 Vac three-phase + N
Number of phases: 3 + N
Voltage tolerance: 180 ÷ 264 V (selectable)
Rated frequency: 50 or 60 Hz (selectable)
Frequency tolerance: ±5 (selectable)
EXIT
Rated power: 30 kVA
Active power: 27 kW
Power factor: 0.9
Number of phases: 3 + N
Rated voltage: 380-400-415 Vac three-phase + N (selectable)
Static variation: ± 1%
Dynamic variation: ± 3%
Crest factor: 3 : 1 Ipeak/Irms
Voltage distortion: ? 1% with linear load / ? 3% with distorting load
Frequency: 50/60 Hz
Frequency stability in battery: 0.01%
Overload at Pf 0.8: 115% unlimited, 125% for 10 minutes, 150% for 1 minute, 168% for 5 seconds
BATTERIES
Type: VRLA AGM/GEL/NiCd/Li-ion/Supercaps
Charging time: 6 hours
Weight without batteries (kg): 135
Depth: 850 mm
Width: 440 mm
Height: 1320 mm

Download Technical data MST 30

Product Details
Description

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 380-400-415 + N
Protection degree: IP20
Power (VA): 30000
Battery type: VRLA AGM/GEL/NiCd/Li-ion/Supercaps
Operating temperature (°C): 0 °C / +40 °C
Acoustic pressure: 48 dB(A) 1 mt
Length (mm): 850
Width (mm): 440
Height (mm): 1320
Dry weight (Kg): 135
Colour: Grey

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
