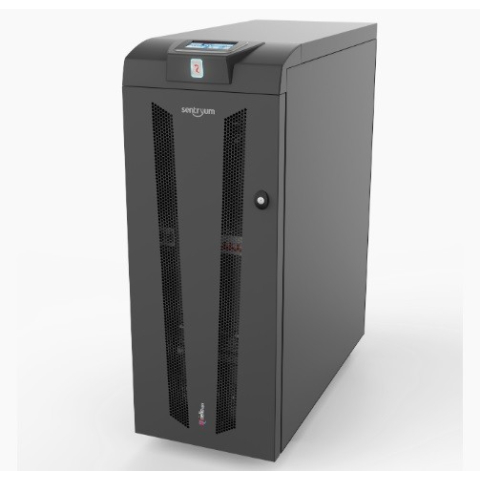

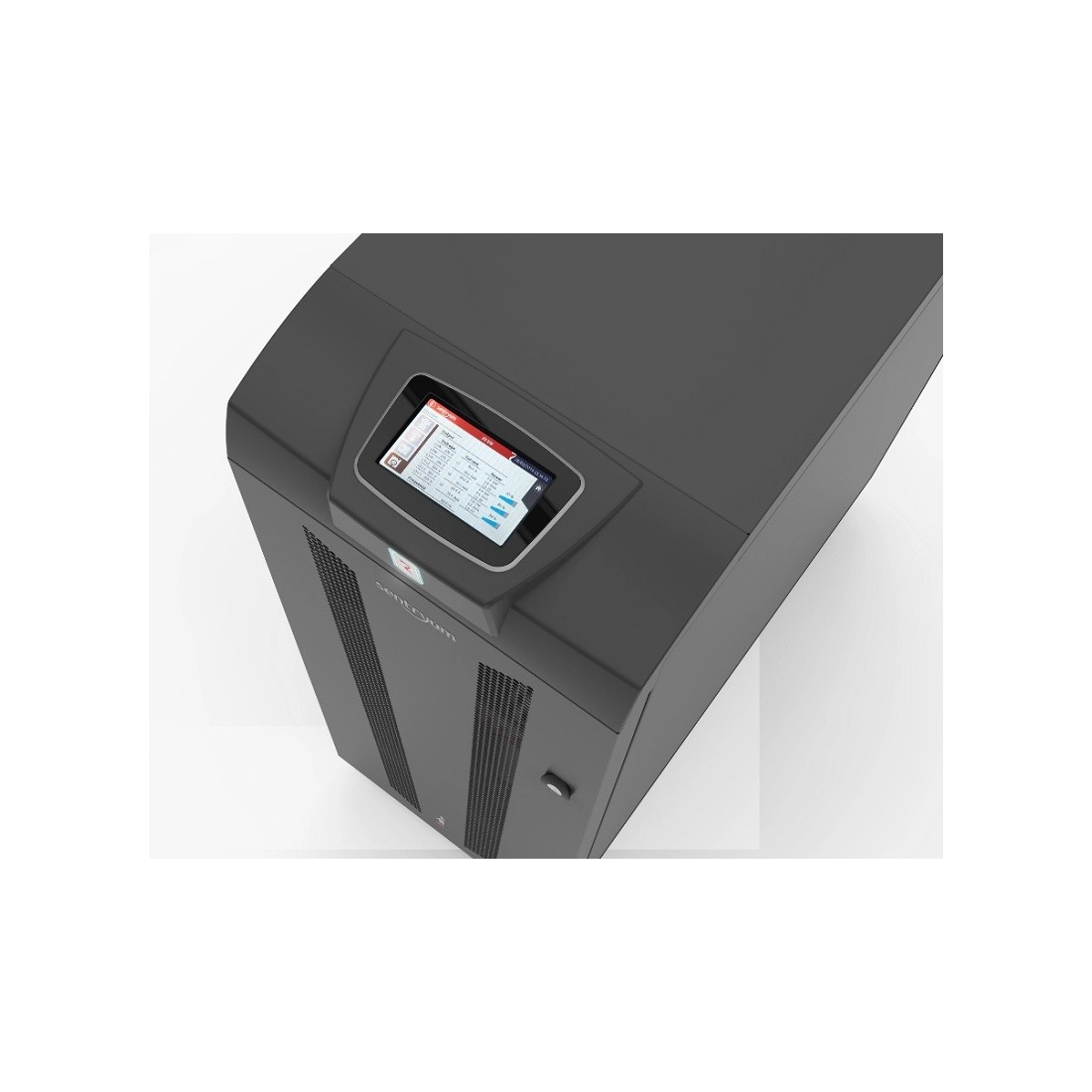

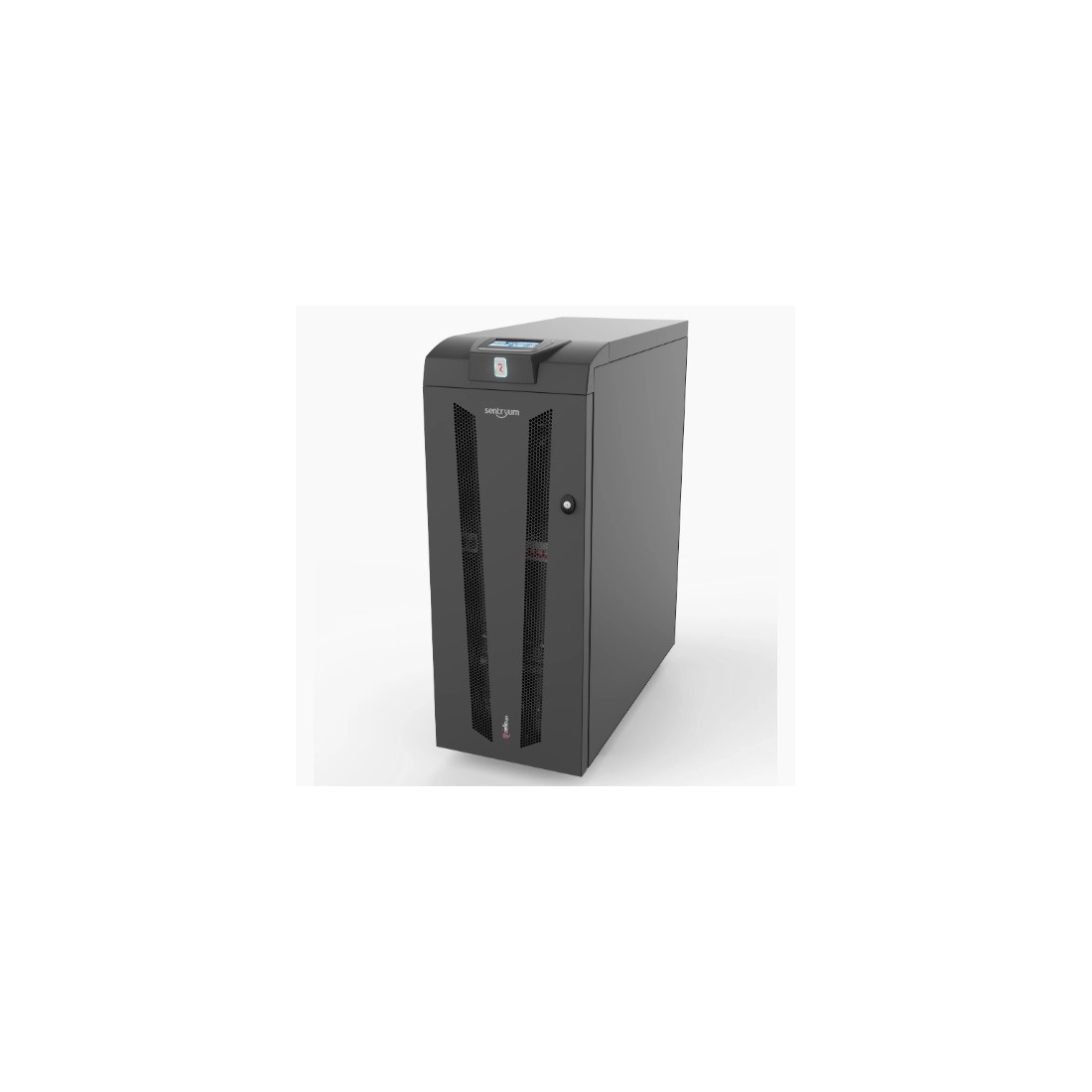

RIELLO S3T CPT 10 SENTRYUM UPS 10000 VA

Name: RIELLO S3T CPT 10 SENTRYUM UPS 10000 VA
Brand: Manelservice
SKU: RIELLO S3T CPT 10 SENTRYUM UPS 10000 VA

Reference S3T10CPTS1

VERSION WITH INTERNAL BATTERIES
AUTONOMY UP TO 10 MINUTES
INPUT
Rated Voltage: 380 / 400 / 415V three-phase + N
Rated frequency: 50/60 Hz
Frequency tolerance: 40 ÷ 72 Hz
Power factor at full load: 0.99
BY-PASS
Rated Voltage: 380 / 400 / 415V three-phase + N
Number of phases: 3 + N
Voltage tolerance: 180 ÷ 264 V (selectable)
Rated frequency: 50 or 60 Hz (selectable)
Frequency tolerance: ±5 (selectable)
EXIT
Rated power: 10 kVA
Active power: 10 kW
Number of phases: 3 + N
Static stability: ± 1%
Crest factor: 3 : 1 Ipeak/Irms
Voltage distortion: ? 1% with linear load / ? 3% with distorting load
Frequency: 50/60 Hz
Frequency stability in battery: 0.01%
Overload: 125% for 10 min - 150% for 1 min - 200% for 0.5 sec
BATTERIES
Type: VRLA AGM/GEL/NiCd/Li-ion/Supercaps

Depth: 840 mm
Width: 280 mm
Height: 700 mm
Weight (kg): 48

Download Technical Data S3T CPT 10

Product Details
Description

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 380-400-415 + N
Protection degree: IP20
Power (VA): 10000
Battery type: AGM/GEL/NiCd/Li-ion/Supercaps
Operating temperature (°C): 0 °C / +40 °C
Running time (h): 11 min
Acoustic pressure: 40 dB(A) 1 mt.
Length (mm): 840
Width (mm): 280
Height (mm): 700
Dry weight (Kg): 48
Colour: Grey

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Unavailable

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.

Download PDF
