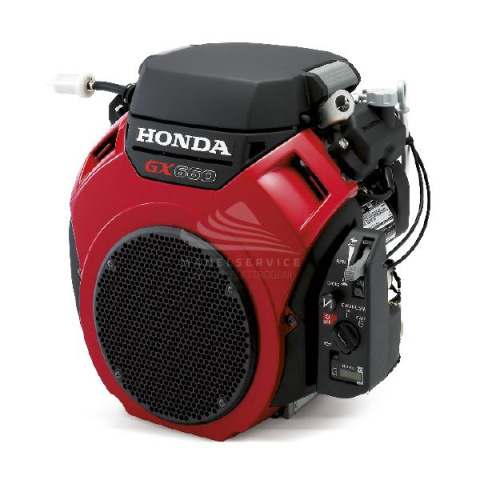

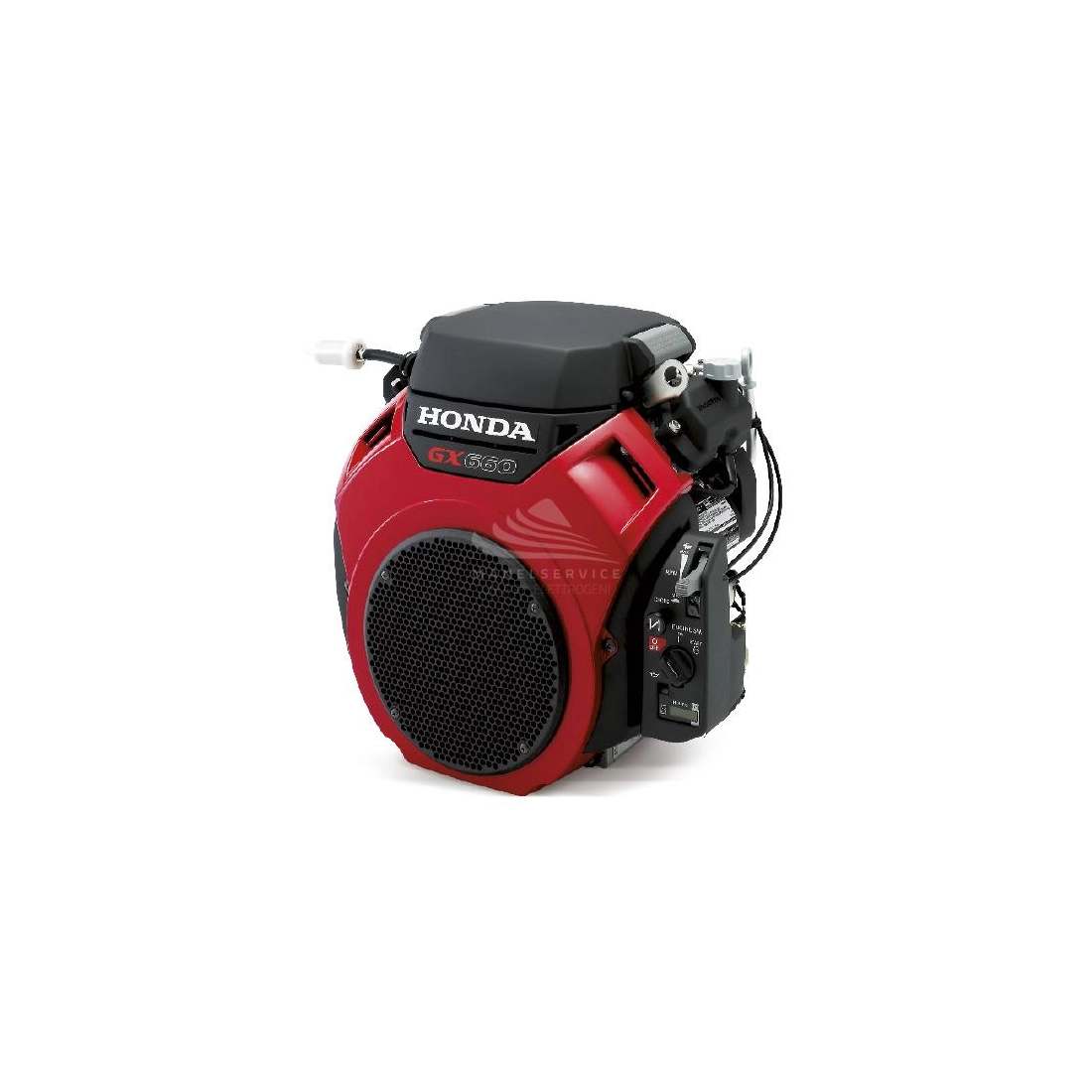

GX660RH VXE4 /

OUT OF PRODUCTION

Net power (kW): 16
Net power (Hp): 21.5
Fuel: Petrol
Starter system: Electric
Round per minute (rpm): 3600
Displacement (cm3): 688
Lenght (mm): 429
Width: 410
Height (mm): 438
Dry weight (Kg): 44.6
Compression ratio: 9.3 : 1

Download Scheda tecnica GX660 Download Technical data GX660

Height (mm)
438
Length (mm)
429
Starting system
Electric
Width (mm)
410
Engine manufacturer
Honda
Engine
OHC ad albero orizzontale, 4 tempi, cilindro in ghisa
Lubrication
Forced
Cooling
Forced air
Compression ratio
9.3 : 1
Fuel
Gasoline
Ignition
Digital CDI with variable ignition advance
Engine capacity (cm³)
688
Number cylinders
2
Cylinders' position
V to 90°
Oil capacity (L)
1.9
Bore x stroke (mm)
2 / 78 x 72
Net power (kW)
16.0

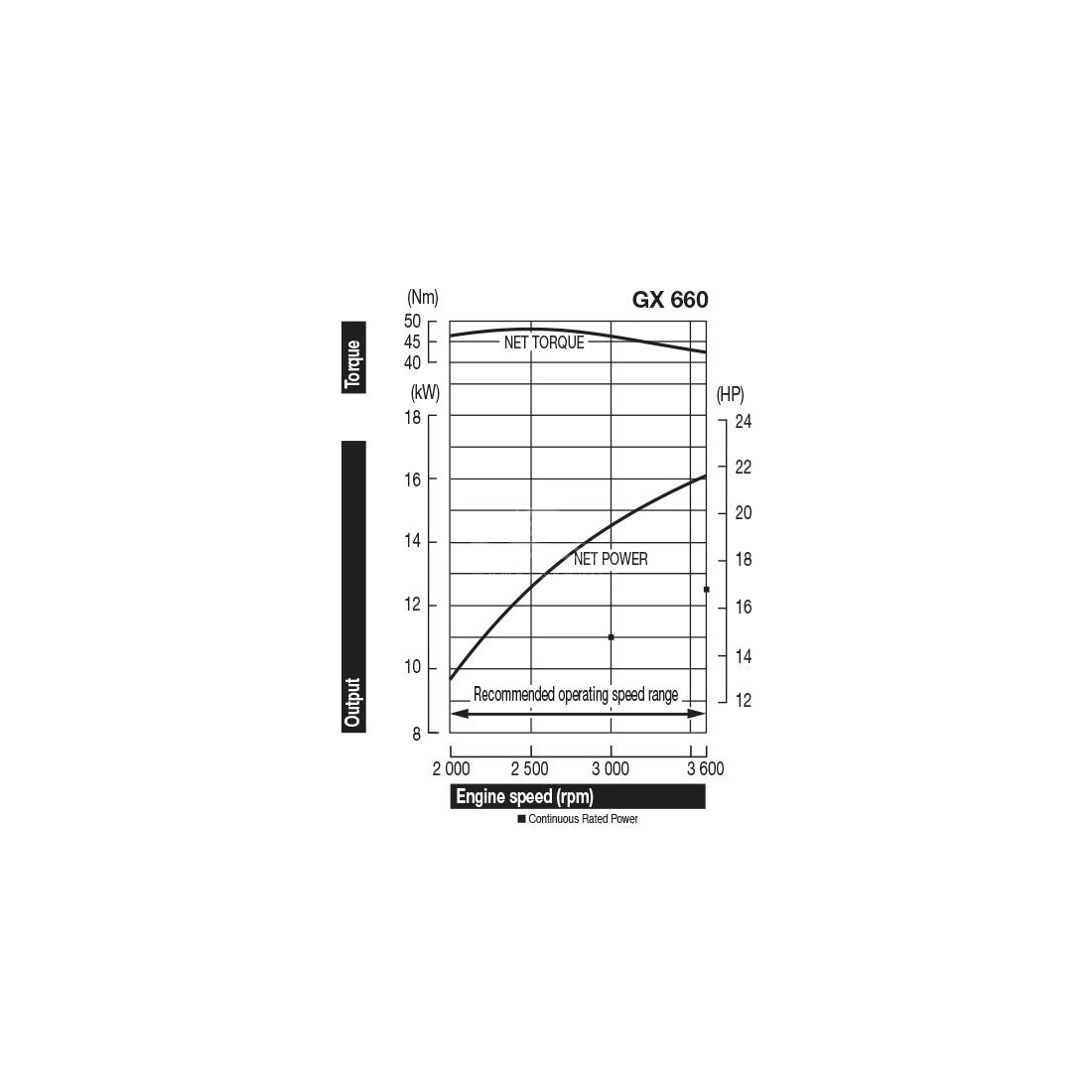

Nominal power continuous
11.0 KW (14.8 HP) / 3000 rpm - 12.5 KW (16.8 HP) / 3600 rpm
Maximum torque
48.3 Nm / 4.93 kgfm / 2500 rpm
Carburetor
Double body, solenoid fuel supply interruption
Consumption (L/h)
6.3
Dry weight (Kg)
44.6
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
