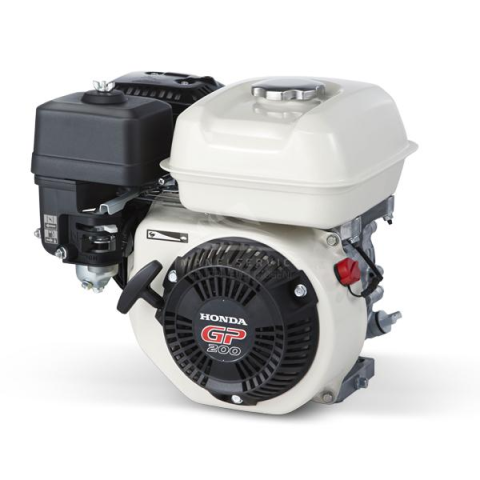

HONDA GP200H VX3 Engine

HONDA GP200
HONDA GP200
HONDA GP200
HONDA GP200
GP200H VX3 /

OUT OF PRODUCTION

Net power (kW): 4.1
Net power (Hp): 5.5
Fuel: Petrol
Starter system: Recoil starter
Round per minute (rpm): 3600
Displacement (cm3): 195
Lenght (mm): 323
Width (mm): 378
Height (mm): 335
Dry weight (Kg): 16.1

Download Scheda tecnica GP200 Download Technical data GP200

Height (mm)
335
Length (mm)
323
Starting system
Manual
Width (mm)
378
Engine manufacturer
Honda
Engine
OHC ad albero orizzontale, 4 tempi, cilindro in ghisa
Cooling
Forced air
Compression ratio
8.5 : 1
Fuel
Gasoline
Ignition
A transistor contactless
Engine capacity (cm³)
196
Number cylinders
1
Cylinders' position
Inclined to 25°
Oil capacity (L)
0.6
Bore x stroke (mm)
68 x 54
Net power (kW)
4.1
Nominal power continuous
3.3 KW (4.4 HP) / 3000 rpm - 3.7 KW (5.0 HP) / 3600 rpm
Maximum torque
12.4 Nm / 1.26 kgfm / 2500 rpm
Fuel tank capacity (L)
3.1
Consumption (L/h)
1.7
Running time (h)
1.82
Dry weight (Kg)
16.1
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
