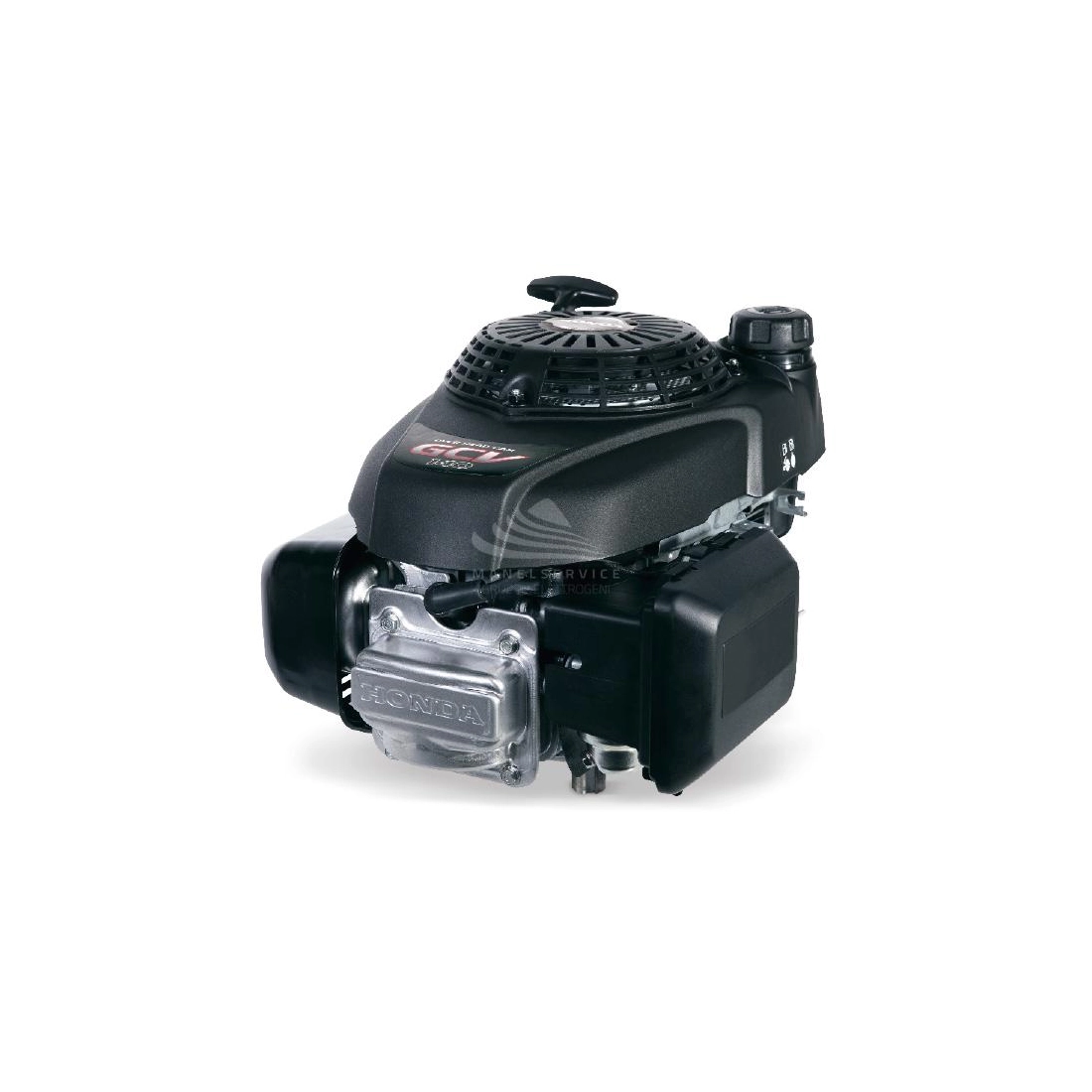

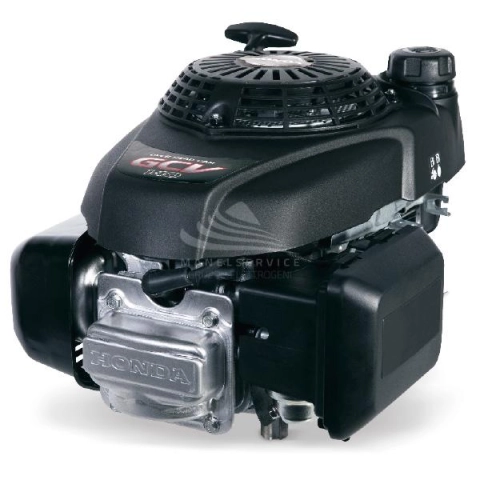

HONDA GXV140A A4G7 Engine

HONDA GCV140
search
  • HONDA GCV140
  • HONDA GCV140
HONDA
GXV140A A4G7 /
New product

OUT OF PRODUCTION

Net power (kW): 3.1
Net power (Hp): 4.2
Fuel: Petrol
Starter system: Recoil starter
Round per minute (rpm): 3600
Displacement (cm3): 160
Lenght (mm): 395
Width (mm): 329
Height (mm): 361
Dry weight (Kg): 10.5
Fuel tank capacity (Lt.): 0.93

Technical features
Fuel
Gasoline
Engine
OHC vertical shaft, 4 stroke, aluminum cylinder
Ignition
A transistor contactless
Starting system
Manual
Engine capacity (cm³)
160
Number cylinders
1
Oil capacity (L)
0.50
Cooling
Forced air
Bore x stroke (mm)
64 x 50
Compression ratio
8.5 : 1
Net power (kW)
3.1
Nominal power continuous
1.9 KW (2.6 HP) / 3000 rpm

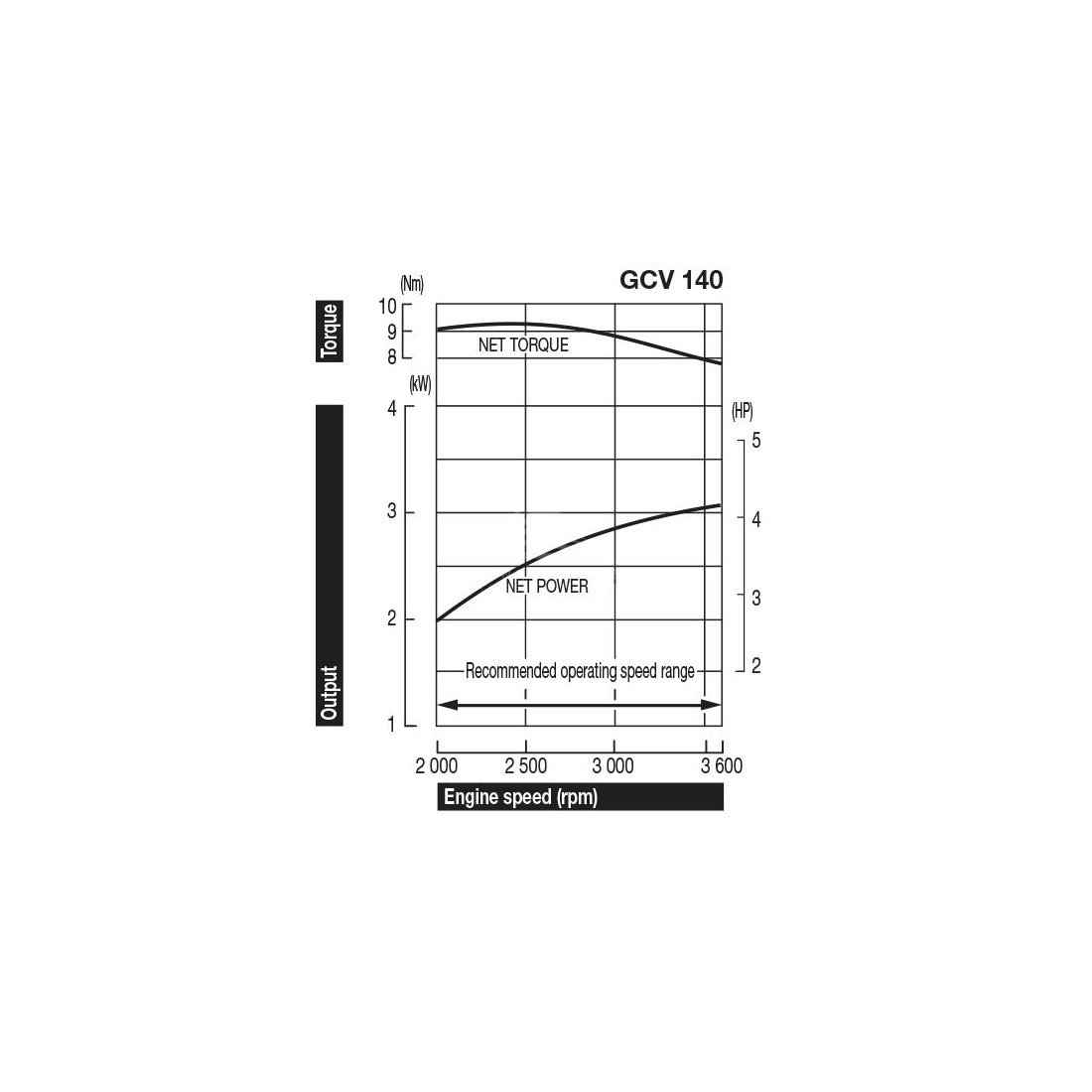

Maximum torque
9.3 Nm / 0.95 kgfm / 2500 rpm
Air filter system
Dry
Fuel tank capacity (L)
0.93
Consumption (L/h)
1
Running time (h)
0.93
Length (mm)
395
Width (mm)
329
Height (mm)
361
Dry weight (Kg)
10.5
Engine manufacturer
Honda
Details

Air cooled 4-stroke OHC petrol engine, vertical shaft, aluminium cylinder.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Scheda tecnica GCV140

(872.84k)

Technical data GCV140

(872.84k)
