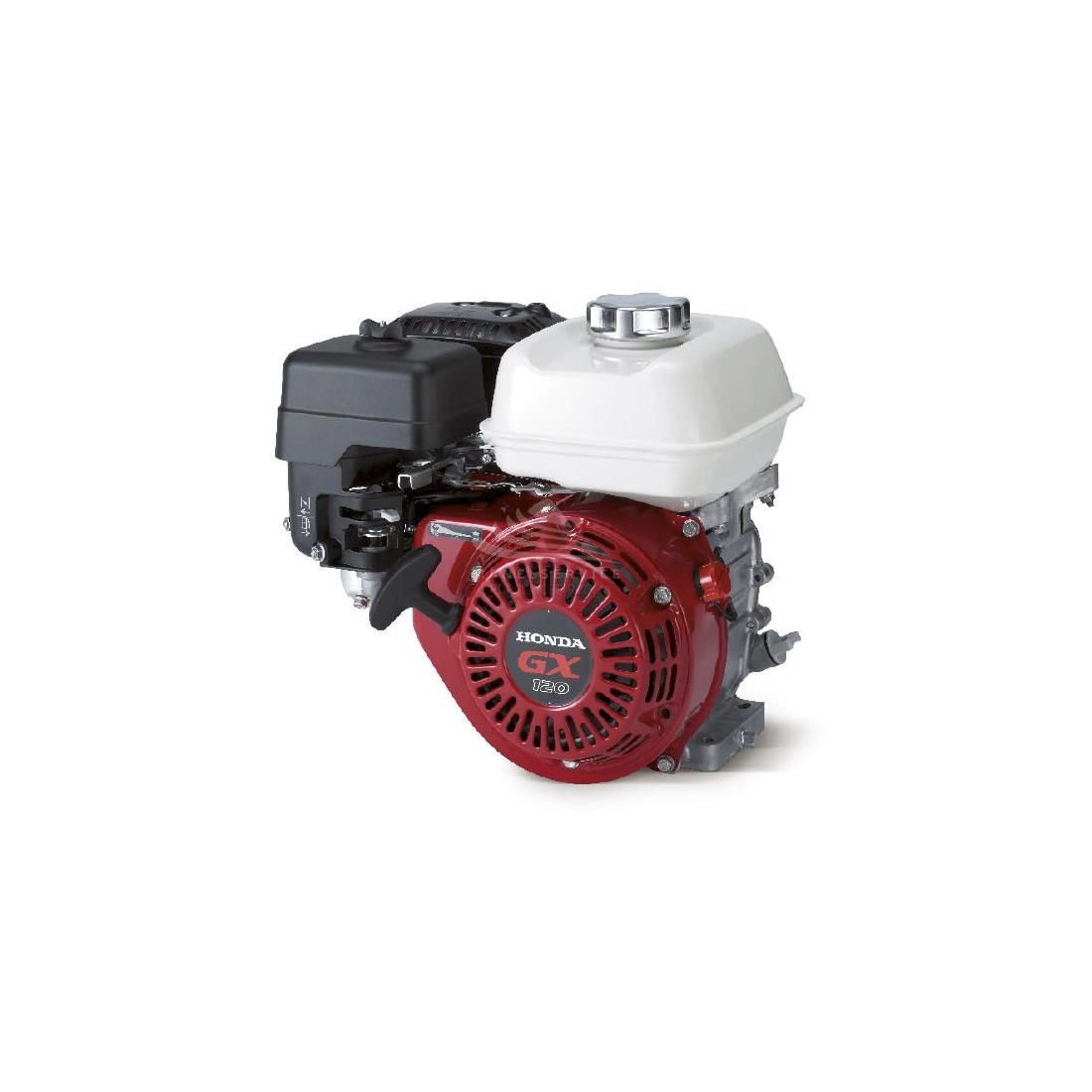

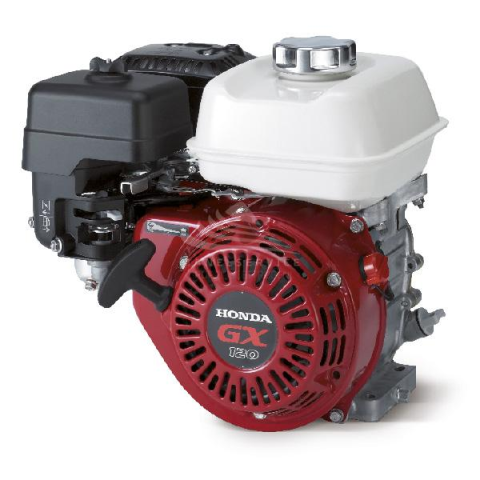

HONDA GX120UT2 QHQ4 Engine

Reference GX120UT2 QHQ4 /

OUT OF PRODUCTION

Net power (kW): 2.6
Net power (Hp): 3.5
Fuel: Petrol
Starter system: Recoil starter
Round per minute (rpm): 3600
Displacement (cm3): 118
Lenght (mm): 305
Width (mm): 346
Height (mm): 329
Dry weight (Kg): 13
Fuel tank capacity (Lt.): 2

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference GX120UT2 QHQ4 /

Data sheet

Fuel: Gasoline
Engine: OHC ad albero orizzontale, 4 tempi, cilindro in ghisa
Ignition: A transistor contactless
Starting system: Manual
Engine capacity (cm³): 118
Number cylinders: 1
Cylinders' position: Inclined to 25°
Oil capacity (L): 0.6
Cooling: Forced air
Bore x stroke (mm): 60 x 42
Compression ratio: 8.5 : 1
Net power (kW): 2.6

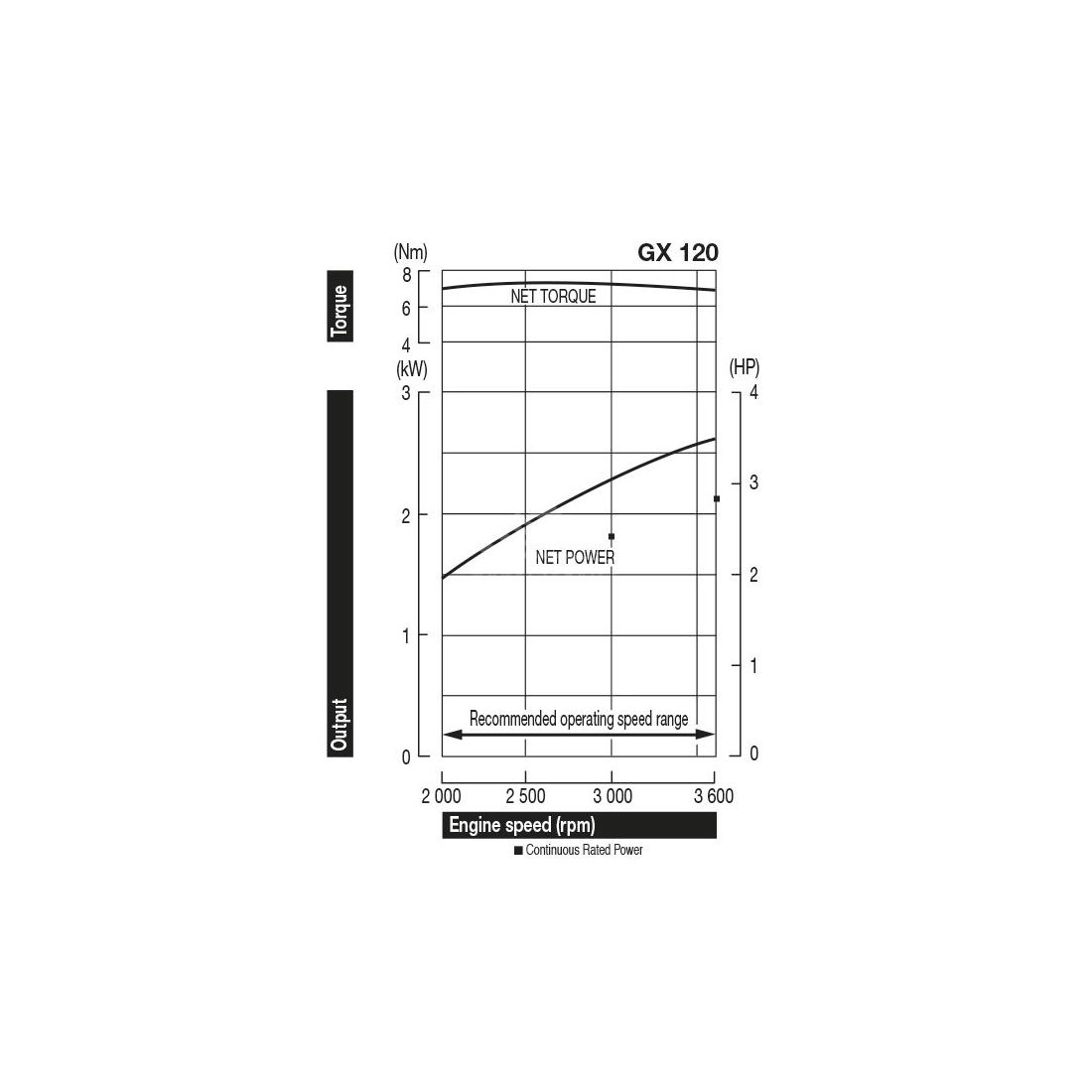

Nominal power continuous: 1.8 KW (2.4 HP) / 3000 rpm - 2.1 KW (2.8 HP) / 3600 rpm
Maximum torque: 7.3 Nm / 0.74 kgfm / 2500 rpm
Fuel tank capacity (L): 2
Consumption (L/h): 1
Running time (h): 2
Length (mm): 305
Width (mm): 346
Height (mm): 329
Dry weight (Kg): 13
Engine manufacturer: Honda

Specific References

Condition New

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
