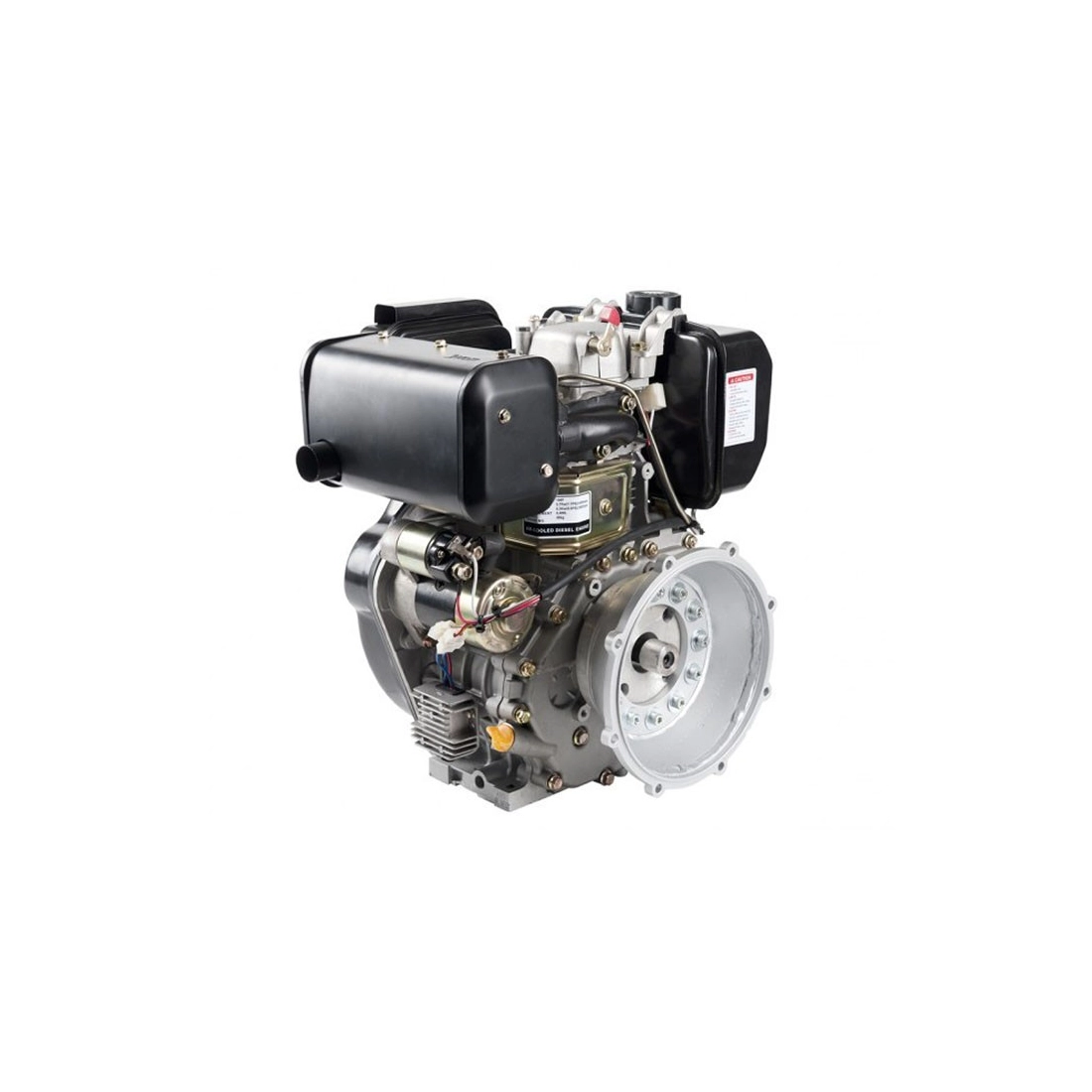

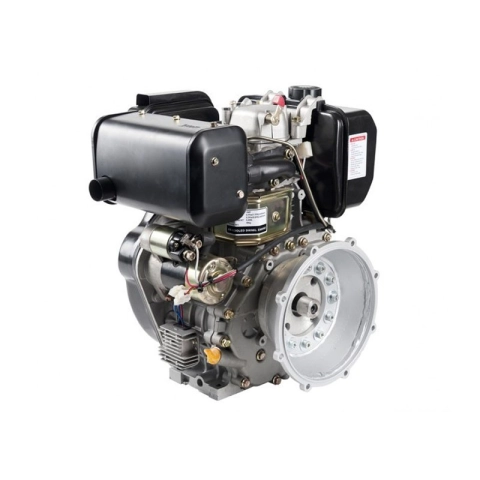

ECO GREEN AMDE186F5SX DIESEL ENGINE 10HP

ECO GREEN AMDE186F5SX DIESEL ENGINE 10HP
search
  • ECO GREEN AMDE186F5SX DIESEL ENGINE 10HP
AMDE186F5SX
Out Of Production

Fuel: Diesel
Mechanical power: 10 Hp
Displacement: 406 cc
RPM: 3600 rpm
Bore x stroke: 86 x 70 mm
Compression ratio: 19 : 1
Boosting: Electric
Fuel tank capacity: 5,5 l
Oil: Multigrade SAE 15W 40 SF
Oil pan capacity: 1.65 l
Oil alert device: Standard
Air filter: dry / Oil bath
Width: 417 mm
Length: 470 mm
Height: 494 mm
Dry weight: 48 Kg

Technical features
Fuel
Diesel
Engine
OHV ad albero orizzontale
Engine rpm (rpm)
3600
Starting system
Electric
Engine capacity (cm³)
406
Number cylinders
1
Oil capacity (L)
1.6
Cooling
Air
Bore x stroke (mm)
86 x 70
Compression ratio
19 : 1
Mechanical power (hp)
10
Fuel tank capacity (L)
5.5
Length (mm)
417
Width (mm)
470
Height (mm)
494
Dry weight (Kg)
48
Details

ECO GREEN AMDE186F5SX DIESEL MOTOR 10HP

MOTOR ECO GREEN AMDE186F5SX DIESEL in left hand rotation configuration with conical shaft Ø 23,00 mm, versatile and suitable for many different applications, in professional field, construction, agriculture.

They can be mounted on agricultural machines, building machines, generating sets, irrigation and spraying pumps, compressors, woodworking machines, high pressure washers, chippers.

TECHNICAL SPECIFICATIONS MOTOR ECO GREEN AMDE186F5SX

Fuel: Diesel
Mechanical power: 10 Hp
Displacement: 406 cc
RPM: 3600 rpm
Bore x stroke: 86 x 70 mm
Compression ratio: 19 : 1
Boosting: Electric
Fuel tank capacity: 5,5 l
Oil: Multigrade SAE 15W 40 SF
Oil pan capacity: 1.65 l
Oil alert device: Standard
Air filter: dry / Oil bath
Width: 417 mm
Length: 470 mm
Height: 494 mm
Dry weight: 48 Kg

Are you looking for an engine with different technical characteristics? Here you can find the full range of ECO GREEN motors or other specialized brands.

The images and technical data are purely indicative and may be subject to revision by the manufacturer.

ECO GREEN AMDE186F5SX DIESEL MOTOR in left hand rotation configuration with conical shaft Ø 23,00 mm, versatile and suitable for many different applications, in professional field, construction, agriculture. Sed aliquam egestas ornare. Morbi molestie hendrerit sagittis. Quisque ac placerat dolor.The images and technical MOTOR data are purely indicative and may be subject to revision by the manufacturer.
