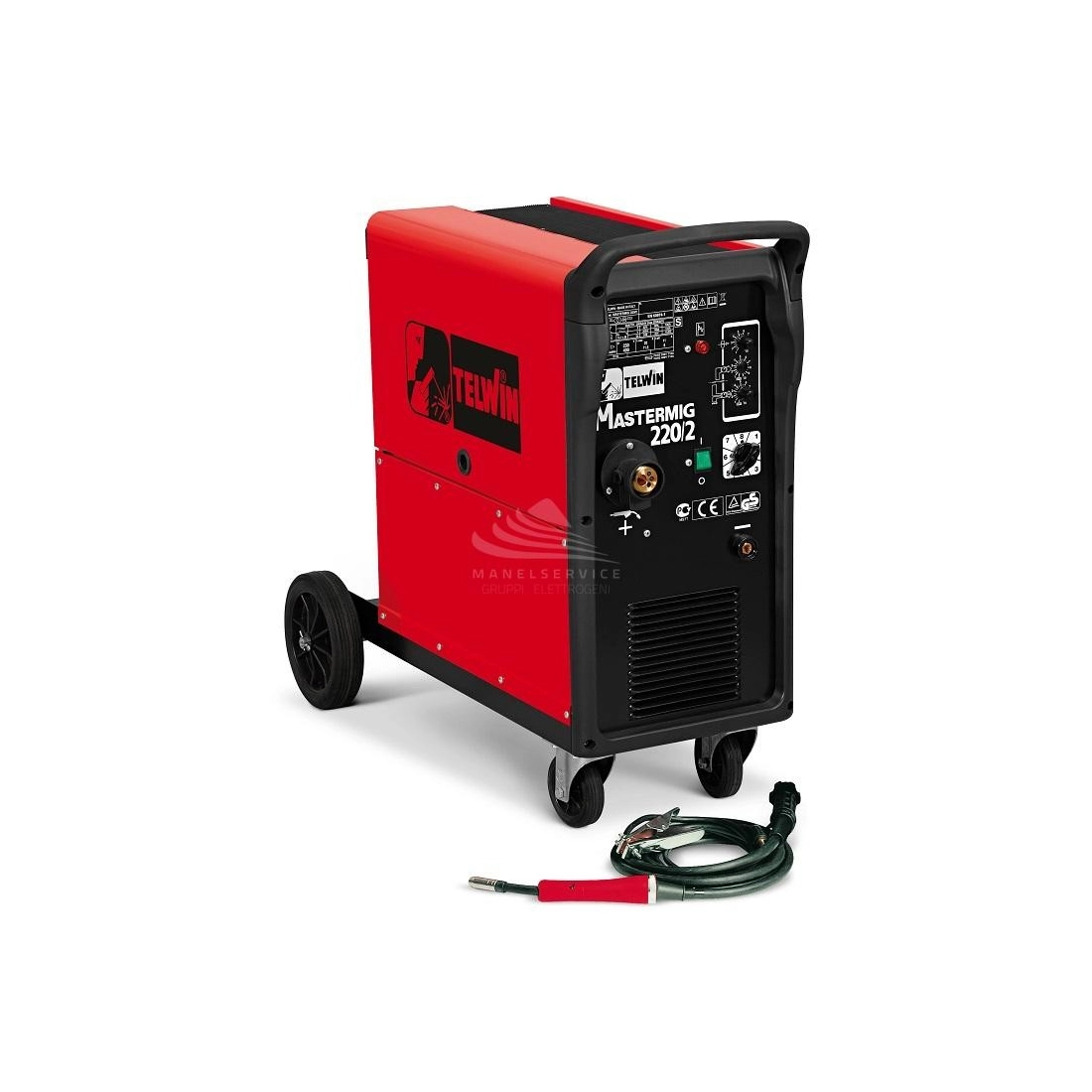

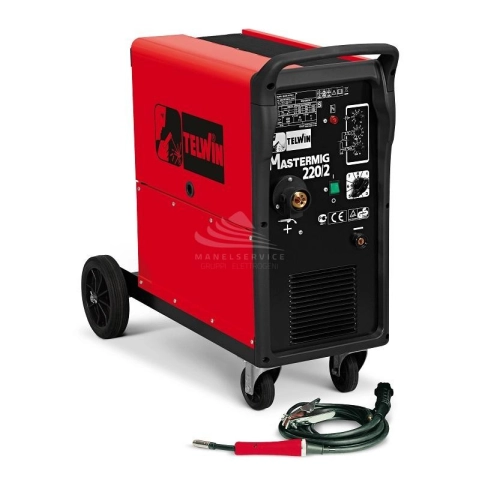

TELWIN MASTERMIG 220/2 230-400V

Reference 821064

DISCONTINUED PRODUCT

Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding: MIG-MAG/BRAZING
No-load voltage: 36 V
Regulation current: 20 - 220 A
Current max: 200 A
Steel welding wire diameter: 0.6 - 1 mm
Inox welding wire diameter: 0.8 - 1 mm
Aluminium welding wire diameter: 0.8 - 1 mm
Brazing wire diameter: 0.8 - 1 mm
Length: 870 mm
Width: 453 mm
Height: 800 mm
Weight: 56 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 821064

Data sheet

Phase: Single phase / Three phase
Frequency (Hz): 50 / 60
Voltage (V): 230 / 400
Protection degree: IP22
No-load voltage (V): 36
Adjustment positions: 8
Regulation current (A): 20 - 220
Ø steel welding wire (mm): 0.6 - 1
Ø inox welding wire (mm): 0.8 - 1
Ø aluminium welding wire (mm): 0.8 - 1
Ø brazing wire (mm): 0.8 - 1
Type of welding: MIG-MAG
MIG-MAG welding: MIG-MAG/BRAZING
Current max (A): 200
Length (mm): 870
Width (mm): 453
Height (mm): 800
Weight (Kg): 56

Specific References

EAN13: 8004897640396

MIG-MAG/BRAZING welding machine.
Designed for continuous and spot welding with electronic regulation of spotwelding time.
Thanks to optional kits this model allows also sheet tempering and riveting.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Complete with MIG-MAG welding accessories.

Not binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
